Assembling and setting up
Il prend soin de vous, alors pourquoi pas vous ? Parce qu’un entretien régulier est nécessaire pour préserver les performances de votre appareil et prolonger sa durée de vie, retrouvez ici tous nos conseils d’entretien.
Ref: 8491911
BIKING100
2020
Year of commercialization: December 2019

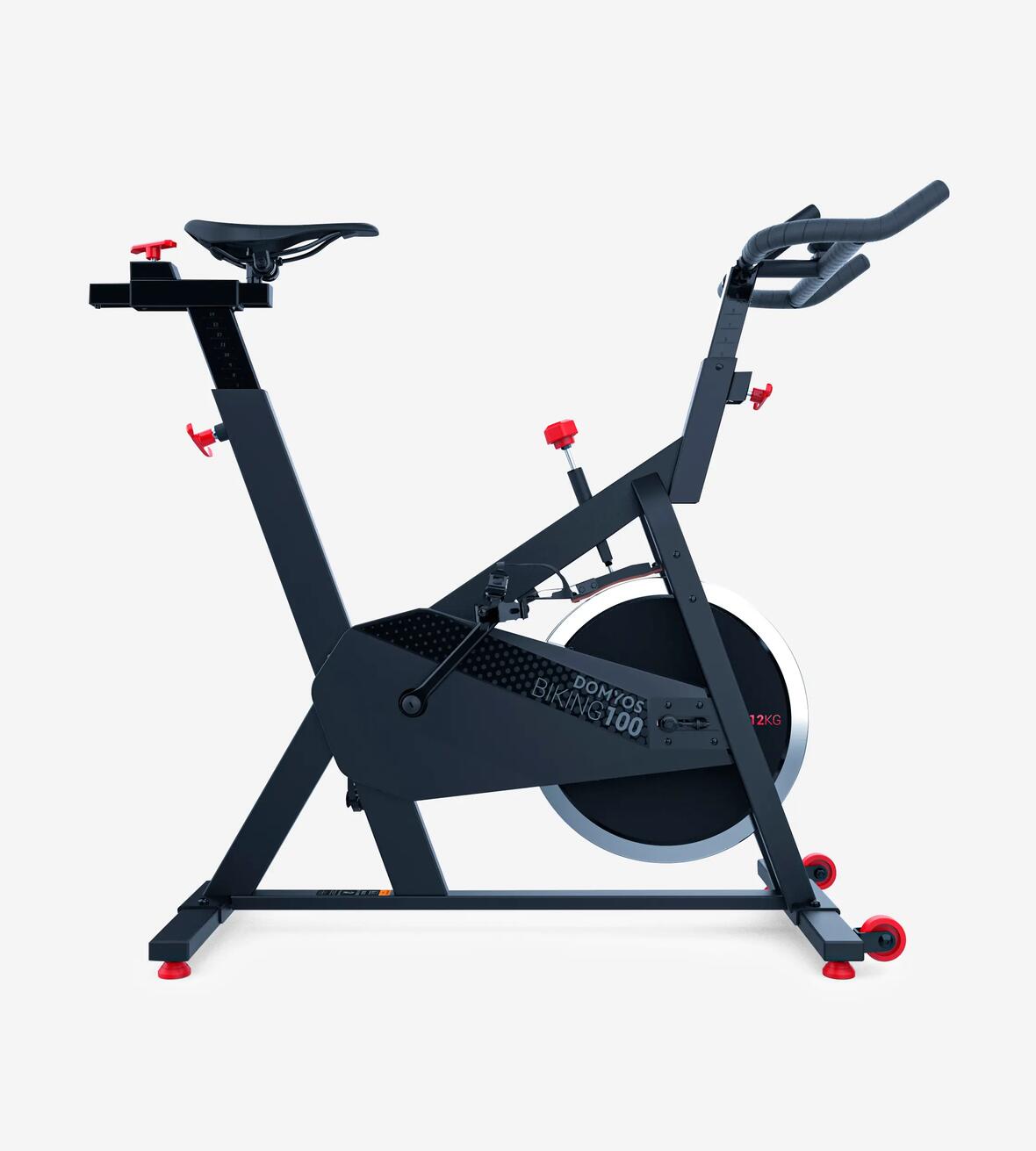

Our design teams developed this exercise bike for occasional to regular users.
It was tested for an average of 5 hours of use per week.
ITS BENEFITS:
12kg flywheel, leather pad for resistance, and chain drive.
Seat and handlebar adjust to multiple positions.
Steel frame (43kg weight) and stabilizing pads for uneven ground.
Move it at your convenience thanks to its front castors.
BIKING100 Assembly video
Problems
My counter doesn't turn on
1. Behind the counter, check that the battery is in the correct +/- position. If the problem persists, start with a new battery.
Faulty display of distance or speed
1-Check the position of the sensor.
The distance between the sensor and the magnet on the bike’s front wheel should be 1 or 2 mm.
2-Check in settings if your counter is in kilometres or miles.
See settings in your user guide.
There's a clicking noise with each turn of the pedals
Unscrew the pedals by one turn, then screw them back on very tightly.
My bike makes a noise
The screws are loose:
=> Tighten all visible screws.
Parts diagram
Not able to fix your problem or find the right answer? please contact one of our technicians.
Servicing your product
It takes care of you, so you should do the same for it. Regular maintenance is necessary to preserve the performance of your equipment and extend its service life.
Repairing your product
Want to repair your product yourself but not sure how? Here, you can find all the repair videos for your device
Replacing cycle meter BIKING100
Replacing cover BIKING100
Replacing handlebars BIKING100
Replacing saddle BIKING100
Replacing rivet and blocker BIKING100
Replacing brake knob BIKING100
Replacing brake BIKING100
Replacing pedals BIKING100
Replacing crank handles BIKING100
Replacing chain BIKING100
Replacing front pedal BIKING100
Replacing back pedal BIKING100
Replacing flywheel BIKING100
Replacing crankset bearings BIKING100
Replacing crankset axle BIKING100
Replacing flywheel axle and bearings BIKING100
Replacing plastic sleeve BIKING100
Replacing handlebar tape BIKING100
Order spare parts for this product
NEED SPARE PARTS FOR YOUR EXERCISE BIKE?
Instructions
Our commitments
Domyos guarantees this product under normal conditions of use for five years for the structure and two years for other parts and labour from the date of purchase shown on the receipt.
