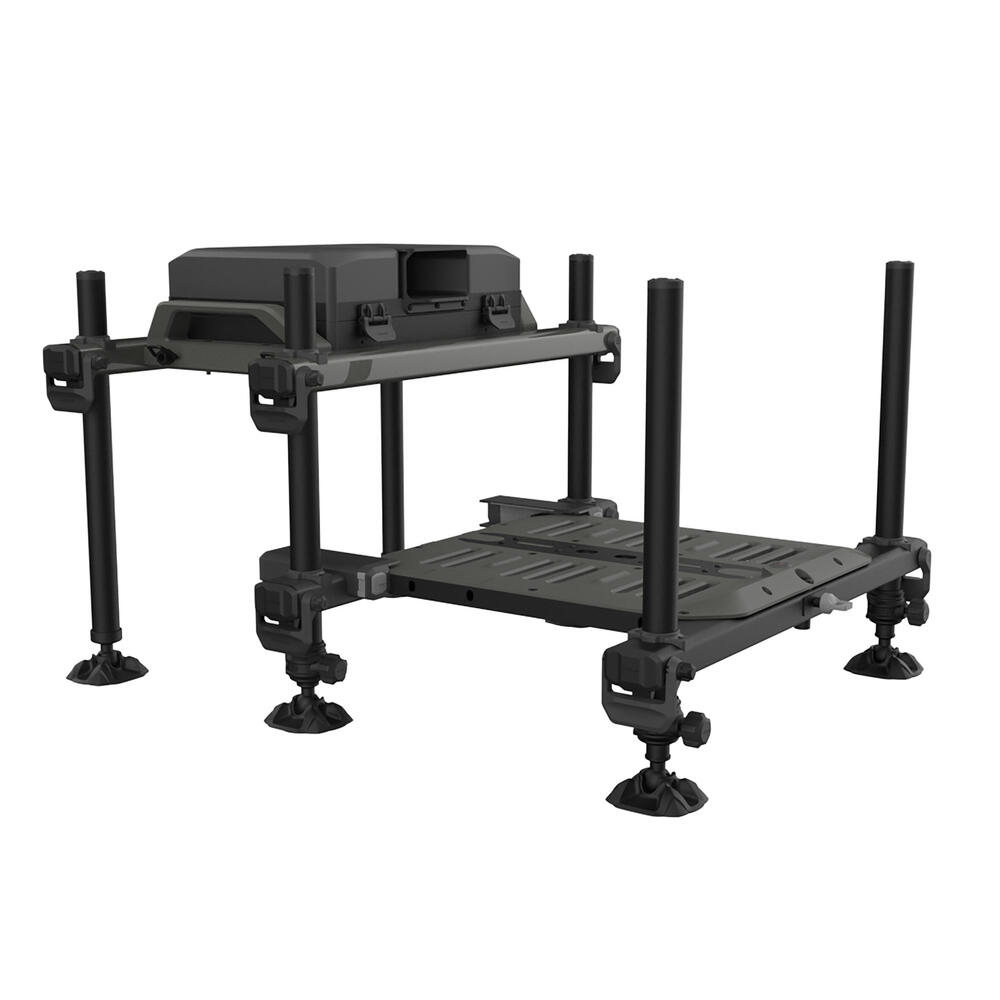

CAPERLAN CSB D36 2024 FISHING STATION

This video will show you how to assemble the different parts perfectly when you receive your fishing station.
1_ Carefully open the box with a box cutter. Take care not to make a cut in the top of the box that is too deep, or you will cut the seat of the station.

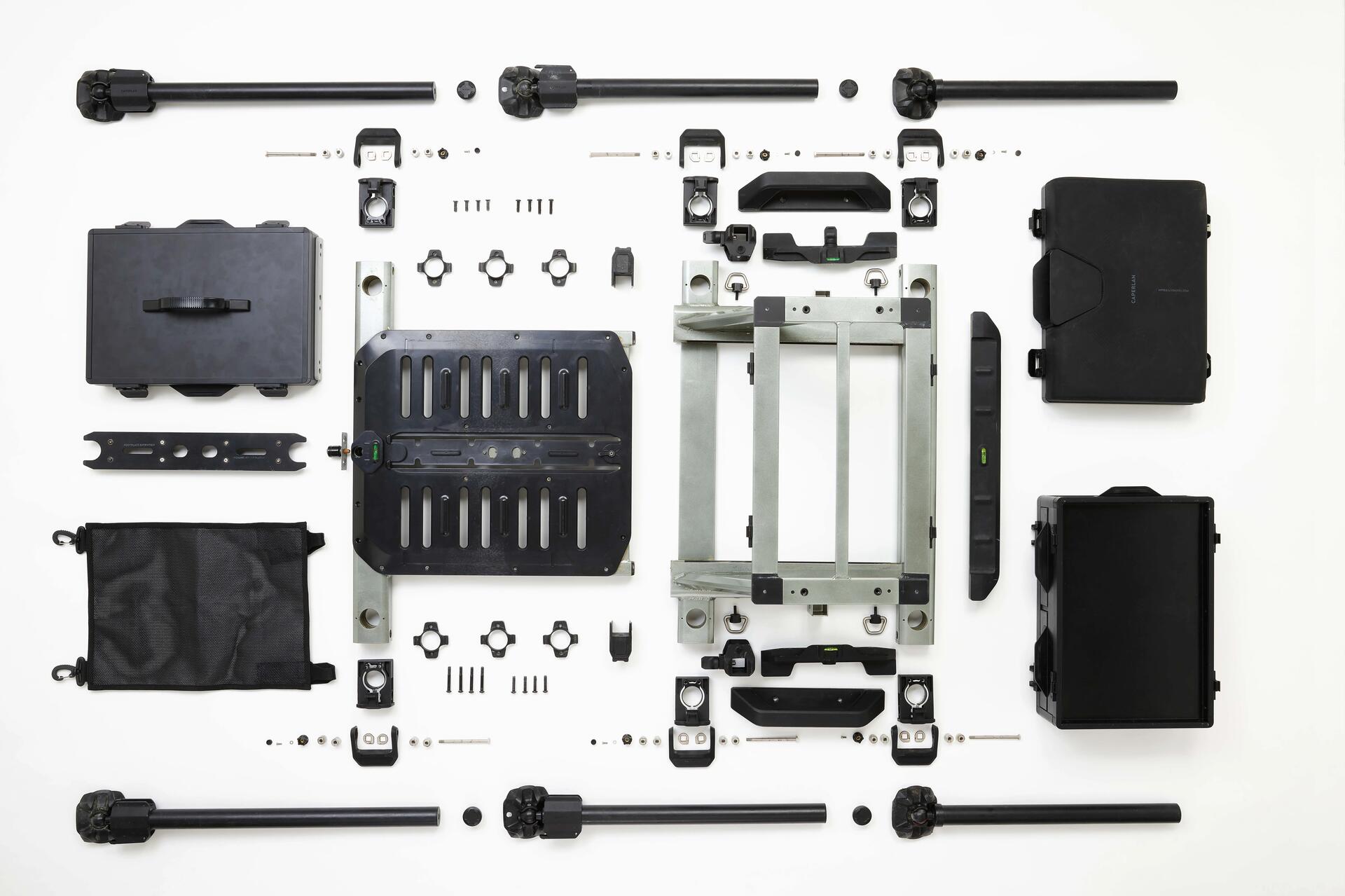

2_ Take all the parts out of the boxes.
3_ Install the 4 telescopic legs on the front of the pontoon.
4_ Install the non-telescopic legs on the rear of the structure of the seat of the station.
5_ Insert the rear legs of the pontoon in the holes at the front of the seat of the station.
6_ Lock the concentric system fasteners to make sure that the seat of the station remains firmly in place. 7_ Install the strap by hooking it onto the rings on each side of the station.

When you install your fishing station, it is essential to proceed in a specific order to adjust the legs and the seat to ensure that the station remains stable and comfortable when fishing.

This video tutorial will help you.
The steps are similar to this video for the CSB D36 COMP station, i.e.:
1_ Move the station to your fishing position using the side handles.
2_ Adjust the front legs of the station, then the rear legs to keep the seat stable.
3_ Deploy the pontoon by unlocking it using the push-pin system.
4_Install the front legs of the pontoon to stabilise the assembly.
5_ Adjust the seat to a comfortable height, while keeping your knee at an angle of 45°.
6_ Sit on the station and the pontoon to check that the station is stable.

Whether you fish with a press-fit rod or a feeder, it is essential to have the right accessories for your fishing station to remain comfortable and efficient while fishing.
This video contains all the important information on the accessories for your station.

The concentric system must be properly tightened to guarantee optimal stability and safety.
This tutorial video shows you how to tighten the concentric system.

It is essential to take meticulous care of your fishing station to keep it in optimal condition and to enjoy successful fishing outings. To this end, a suitable cleaning routine is essential.

The first step consists of removing all dirt, debris and residue from your fishing station using a water jet. This will detach any embedded particles and wash the surface in preparation for the subsequent thorough clean.

Then, take a soft and non-abrasive cloth. Soak it slightly in a soft solution of soapy water to protect the delicate parts of your fishing station. Carefully wipe all the surfaces with the cloth, paying particular attention to any parts marked with stains or traces. Use regular movements to avoid scratching or damaging the surface.

Once you have thoroughly wiped and cleaned you fishing station, leave it to dry naturally. Put it in a well-ventilated place, out of direct sunlight. Leaving it to dry prevents the accumulation of damp, which can cause long-term damage due to rust or mould.

It is essential to carefully store your fishing station in a sheltered place to guarantee the durability of your equipment and the quality of your future fishing outings. Taking the time to store your station properly after use offers countless advantages.

When you return from a day's fishing, take the time to clean and store your station. Remove any residues of mud and dirt that may have become attached to your station while fishing. These deposits can be removed using a soft cloth and a water jet. Take care to thoroughly dry all the surfaces.

It is also important to store your fishing station in a sheltered place. Outdoor elements, such as the sun, rain and damp can cause long-term damage to your equipment. Therefore, it is important to store your station in a place that is free of humidity.

Follow each step in this tutorial video to replace the pontoon of your fishing station.
This video shows the CSB D36 COMP fishing station, but the operations are identical for the CSB D36 station.

1_ Tip the station backwards, so that the pontoon can be handled more easily.
2_ Remove the two front legs of the pontoon.
3_ Use a N°6 Allen key to remove the two stop screws on the underside of the pontoon. Take care to keep these screws.
4_ Unlock the two push-pin buttons to release the pontoon.
5_ Remove the pontoon upwards.
6_ Install the new pontoon by inserting it in the rails, which must be cleaned first.
7_ Install the two stop screws on the bottom of the pontoon.
8_ Lock the new pontoon in place with the two push-pin buttons.
9_ Install the two front legs of the pontoon.

Follow each step in this tutorial video to replace the block lock system of the pontoon of your fishing station.
This video shows the CSB D36 COMP fishing station, but the operations are identical for the CSB D36 station.

1_ Take a N°6 Allen key, a cross-tip screwdriver and a flat-head screwdriver.
2_ Tip the station backwards to gain access to the front of the pontoon.
3_ Remove the front legs of the pontoon.
4_ Use the N°6 Allen key to remove the two stop screws of the pontoon.
5_ Remove the pontoon.
6_ Remove the screw that fastens the block lock of the pontoon.
7_ Use the flat-head screwdriver to lever the used block lock from the metal structure.
8_ Clean the mounting, then position the new block lock of the pontoon.
9_ Screw the block lock into the structure.
10_ Install the pontoon, then the front legs.

Follow each step in this tutorial video to replace the rod butt support of your fishing station seat.

1_ Turn over the seat block to access the screws on the bottom.
2_ If there is a side draw, remove it.
3_ Remove the screws one by one and keep them carefully.
4_ Tip the seat block in front of you to remove the screws that fasten the butt block.
5_ Remove the seat from its metal chassis and remove the used butt block.
6_ Position the new butt block and the seat on the top.
7_ While firmly holding the assembly, install the screws that fasten the butt block to the structure of the seat.
8_ Turn over the assembly to access the underside of the structure.
9_ Install the screws under the structure to fasten the seat, starting with the screws in the middle.
10_ If there is a drawer, install it.

Follow each step in this tutorial video to replace the concentric fastening system of the legs of your fishing station.
This video shows the CSB D36 COMP fishing station, but the operations are identical for the CSB D36 station.

1_ Take a N°4 Allen key, a small flat-head screwdriver and a medium-sized cross-tip screwdriver.
2_ Remove the leg in the position of the concentric system to be replaced.
3_ Use the flat-head screwdriver to remove the black protection cap from the side thumb wheel of the concentric system.
4_ Use the cross-tip screwdriver to remove the fastening screw of the side thumb wheel of the concentric system.
5_ Remove the black thumb wheel and the cross bolt of the concentric system.
6_ Use the flat-head screwdriver to remove the lock handle of the concentric system.
7_ Remove the two concentric parts on each side of the leg.
8_ Tip the station, so that the leg to be repaired is vertical.
9_ Use the N°4 Allen key to remove the two screws on the bottom of the station that fasten the concentric system block.
10_ Use the flat-head screwdriver to lever the internal concentric system block from its housing.
11_ Clean the internal mounting in the structure of the station.

From this point onwards, the next steps concern the preparation and installation of the new spare parts.
12_ Take the plastic concentric system block and position it in front of you, with the surface of the place stop facing the ground.
13_ Take the internal metal part and the plastic wrapping, then install it in the plastic block.
14_ Take the concentric nut marked L and insert it in the hole on the left of the plastic part.
15_ Take the concentric nut marked R and insert it in the hole on the right of the plastic part.
16_ Push home the two concentric nuts into the inserts in the internal metal part.
17_ Insert the block that you have just assembled in the position in the chassis that was left vacant when you removed the faulty part.
18_ Fasten the newly installed concentric system block using the screws and the N°4 Allen key.
19_ Put the station back on its legs for the following operations.
20_ Take the concentric nut marked L and position it in the hole on the left of the metal structure.
21_ Once in position, turn the nut until you feel a click and the upper edge is perfectly horizontal.
22_ Take the concentric nut marked R and position it in the hole on the right of the metal structure.
23_ Once in position, turn the nut until you feel a click and the upper edge is perfectly horizontal.
24_ Take the lock handle of the concentric system and position the two small metal parts in the internal inserts.
25_ Hold the two small metal parts and install the concentric system lock handle in its functional position with the two previously installed concentric system nuts.
When properly installed, you will hear and feel a click that indicates that the metal parts are properly fitted to one another.
26_ Insert the cross bolt into the left-hand side of the handle.
27_ Put the right-hand side black locking thumb wheel on the bolt.
28_ Check that the concentric system can be tightened properly before proceeding to install the last parts.
29_ Install the internal fastener screw in the black thumb wheel.
30_ Finish by installing the black protective cap.
31_ Put the leg in the concentric system that you have just repaired.

Follow each step in this tutorial video to replace the side carry handles of your fishing station.
This video shows the CSB D36 COMP fishing station, but the operations are identical for the CSB D36 station.

1_ Use a N°4 Allen key to remove the two screws that fasten the handle to the chassis of the station.
2_ Use a cross-tip screwdriver to remove the two screws under the handle.
3_ Remove the faulty handle and clean the mounting.
4_ Position the new handle and insert the two screws located under the handle.
5_ Screw in the two screws on top of the handle.

Follow each step in this tutorial video to replace the keepnet support of your fishing station.
1_ Use a N°4 Allen key to remove the two screws on the front of the station that fasten the keepnet support.
2_ Remove the faulty keepnet support and clean the mounting.
3_ Position and screw in the new keepnet support using the N°4 Allen key.

To replace the caps on the legs, simply clean the screw thread at the top of the station leg, then screw on the new cap.

To replace the seat, simply undo the 4 clips that fasten the cushion on your station, and replace with a new seat.
