Assembly video and user guide
Need the product user guide? Click the link.
Ref: 8529458

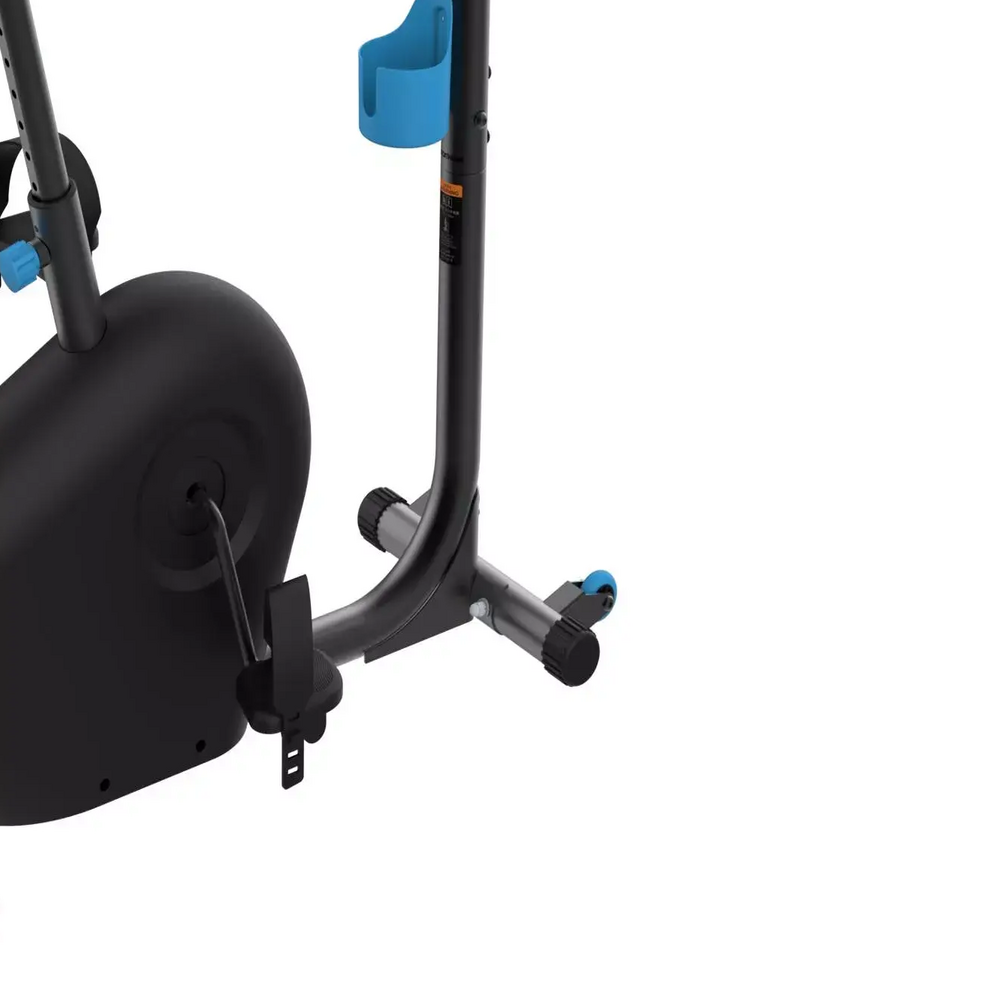

DOMYOS EB 120
2020
In stores: 2020
Use: Twice a week.
Flywheel weight: 4 kg.
Maximum user weight: 110 kg.
Composition:
Frame: 100% - Steel
Foam: 100% - Foamed Nitril Butadiene Rubber
Protective Cover: 100% - Polyvinyl Chloride
Screws: 100% - Steel
Troubleshooting my bike
Many of the problems that you might encounter can be solved in these tabs.
Console
The console does not turn on.
Your bike runs on batteries, so check the correct placement of the battery terminals (+/-).
If the problem persists, start again with new batteries.
The console stays at zero
Check that it is correctly plugged in:
- behind the console,
- where the stem meets the structure.
The console does not display the correct speed
Check that the switch behind the console is on "km" to display in kilometres or "mi" to display in miles, and that the other switch is on "EB" for exercise bike.
Durability
Was the black block correctly removed during assembly?
First, please check that the black block was properly removed during assembly, as shown in the following video:
The black block was removed.
If the black block was removed, please check the assembly of the resistance cable, as shown in the following video:
The bike makes a noise
I hear squeaking when using my bike
Check that the visible screws are tight enough. If the screws are not tight enough, parts could move and make noise. You also may want to check the stability of your bike.
I hear a clicking noise each time the pedal turns
It is possible that the screws on the pedal and crank are not properly threaded or placed.
To solve the problem, loosen the pedals by two turns, then re-tighten them very hard.
The bike is not stable
Are the screws on your bike nice and tight?
1. Tighten all visible screws.
2. Re-tighten the adjustment wheels.
Are the feet correctly adjusted?
Turn the adjustment ends on the rear foot until the bike is stable.
Parts diagram
Bike exploded view
Servicing your product
It takes care of you, so you should do the same for it. Regular maintenance is necessary to preserve the performance of your equipment and extend its service life.
Maintenance instructions
1. Wipe any perspiration off your product after each workout.
2. Clean with a soft cloth (dampen with water) after each use.
3. Regularly check the stability of your bike as well as the tightness of the screws according to the user guide.
Storage tips
Do not leave in a damp place or outdoors.
Use restrictions
For home use only.
Maximum user weight: 110 kg.
Repairing your product
Want to repair your product yourself but not sure how? Here, you can find all the repair videos for your device.
1/ Replacing the pedals
2/ Replacing the housings
3/ Replacing the pulley
4/ Replacing the drive belt
5/ Replacing the flywheel
6/ Replacing the tension control
7/ Replacing the speed sensor
8/ Replacing the high console cable
9/ Replacing the stem
10/ Replacing the console
11/ Replacing the handlebar
12/ Replacing the bottom bracket end/or bearings
Spare parts
Do you need spare parts for your machine?
Our commitments
Domyos guarantees this product under normal conditions of use for five years for the structure and two years for other parts and labour from the date of purchase shown on the receipt.
