DOOR FRAME PULL-UP BAR

2023

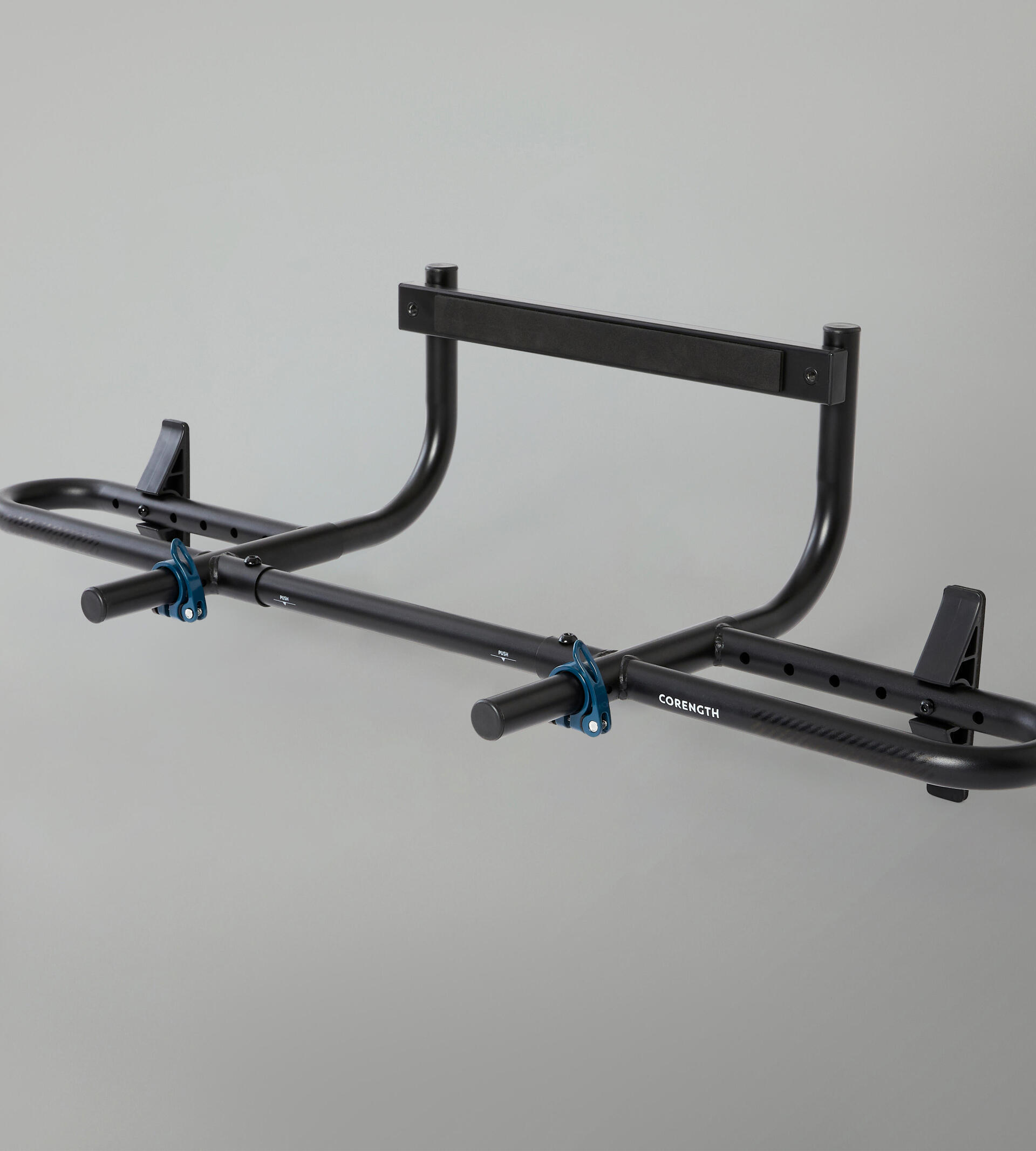

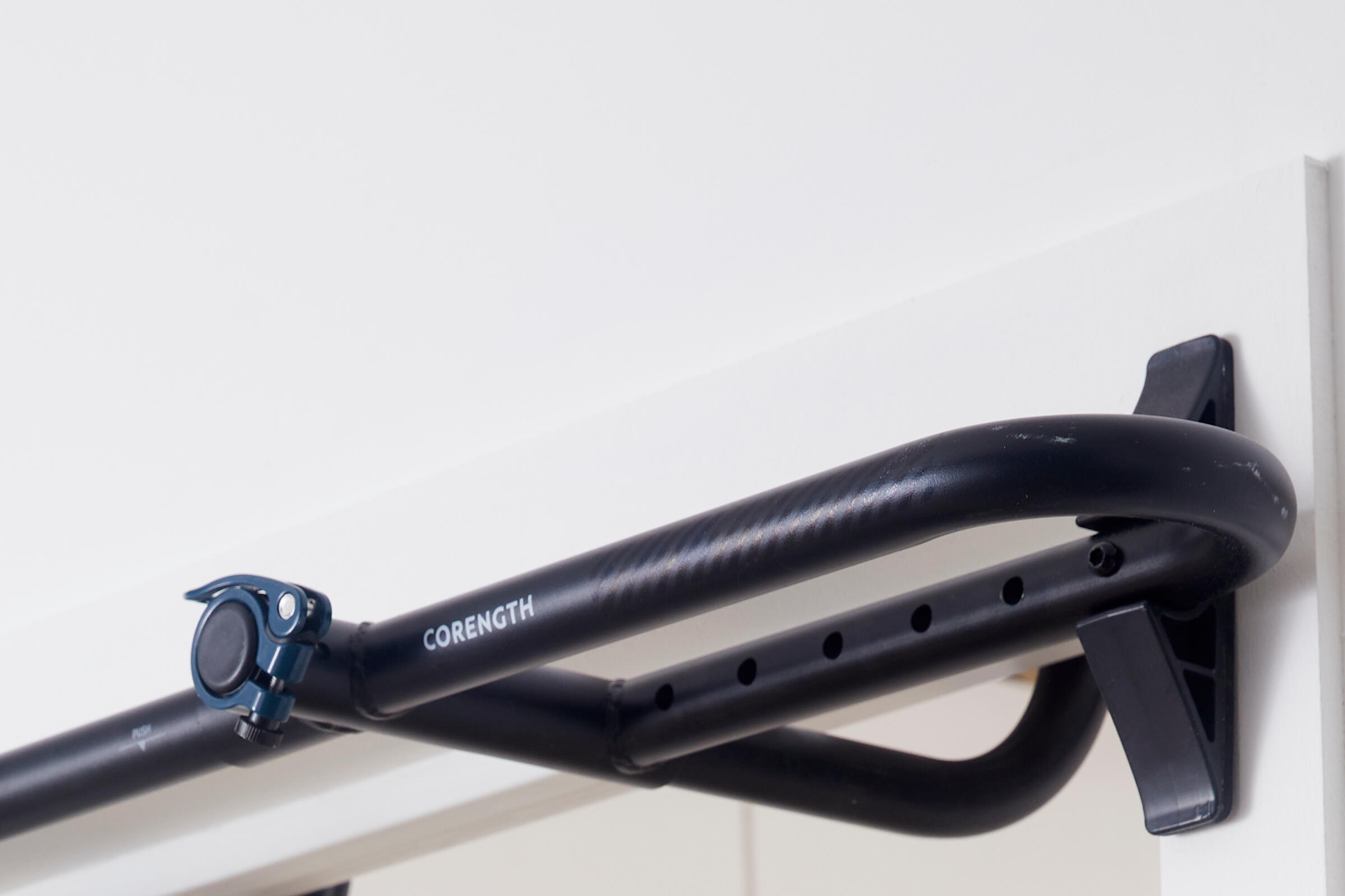

This pull-up bar is designed to sit on a door frame.
Its patented system means you can train safely without needing to screw it in.
Below, you'll find all of our tips:
         Assembly video.
         FAQs.
         Spare parts.
         Online support.
         User guide & diagram.
And everything else you could possibly need!

PRODUCT BENEFITS

  • Pull-up bar

    Durability

    This bar can take a maximum weight of 130 kg

  • Pull-up bar

    Versatility

    This bar can be used for doing pull-ups with a hammer, wide or standard grip

How to look after your door frame pull-up bar

Pull-up bar
Pull-up bar

Restrictions & tips

Ultra-durable, stiff frame.
Max user weight: 130 kg.
Do not install outdoors.
This bar does not work on doors in a corner.
This bar is designed for domestic use only.

Pull-up bar

Compatibility

This bar fits doorways that are 7 to 20 cm deep and 51 to 91 cm across, and with a frame that sits at least 1 cm proud of the wall.

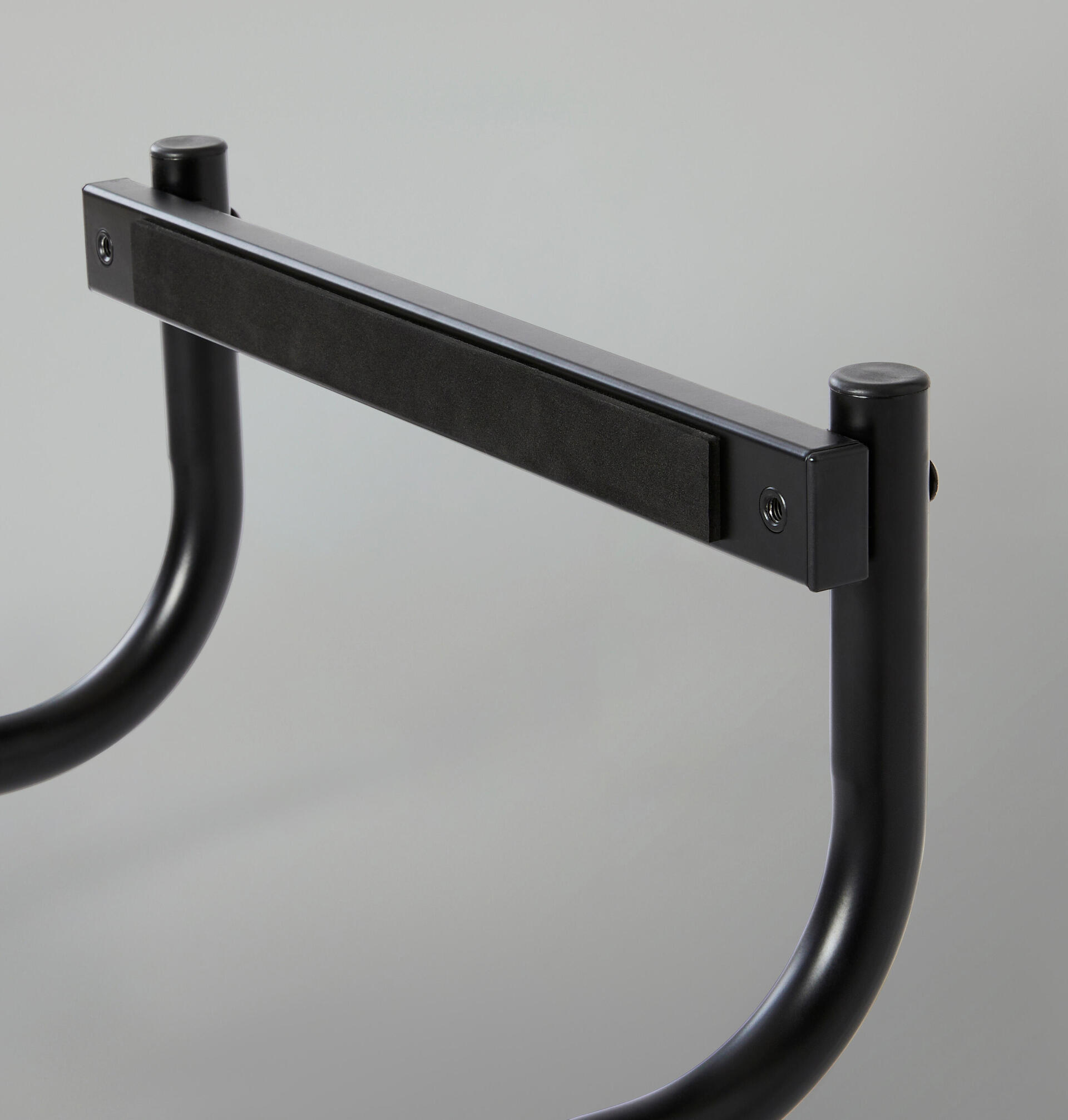

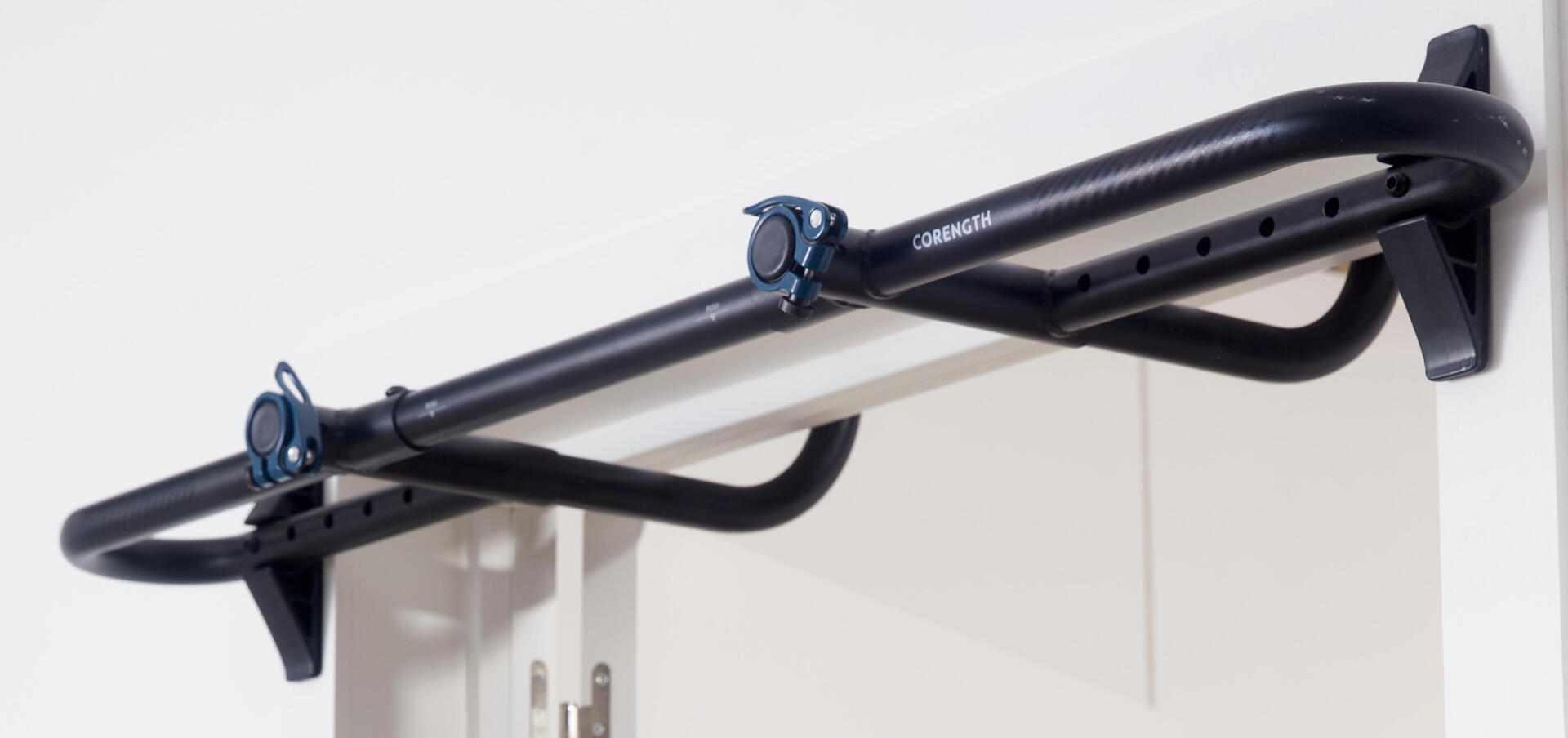

The bar rests on the top and sides of the door frame.
This bar does not work on doors in a corner.

Pull-up bar

Care & storage advice

Clean your bar with a soft cloth.
Take the bar down when you aren't using it.
The door can't be closed when the bar is on the frame
Do not install outside.

Got a problem?
We've got the answer!

Which doors can you install this pull-up bar on?

Your door frame pull-up bar should be mounted on the door frame itself, and not the door.

This bar fits doorways that are 51 to 91 cm wide
and 7 to 20 cm deep.
The door frame must sit at least 1 cm proud of the wall.
The bar rests on the top and sides of the door frame.
Do not install on a clip-over door frame.

PROBLEMS
Which tools do you need to assemble this pull-up bar?

All of the tools you need to assemble your pull-up bar are provided.

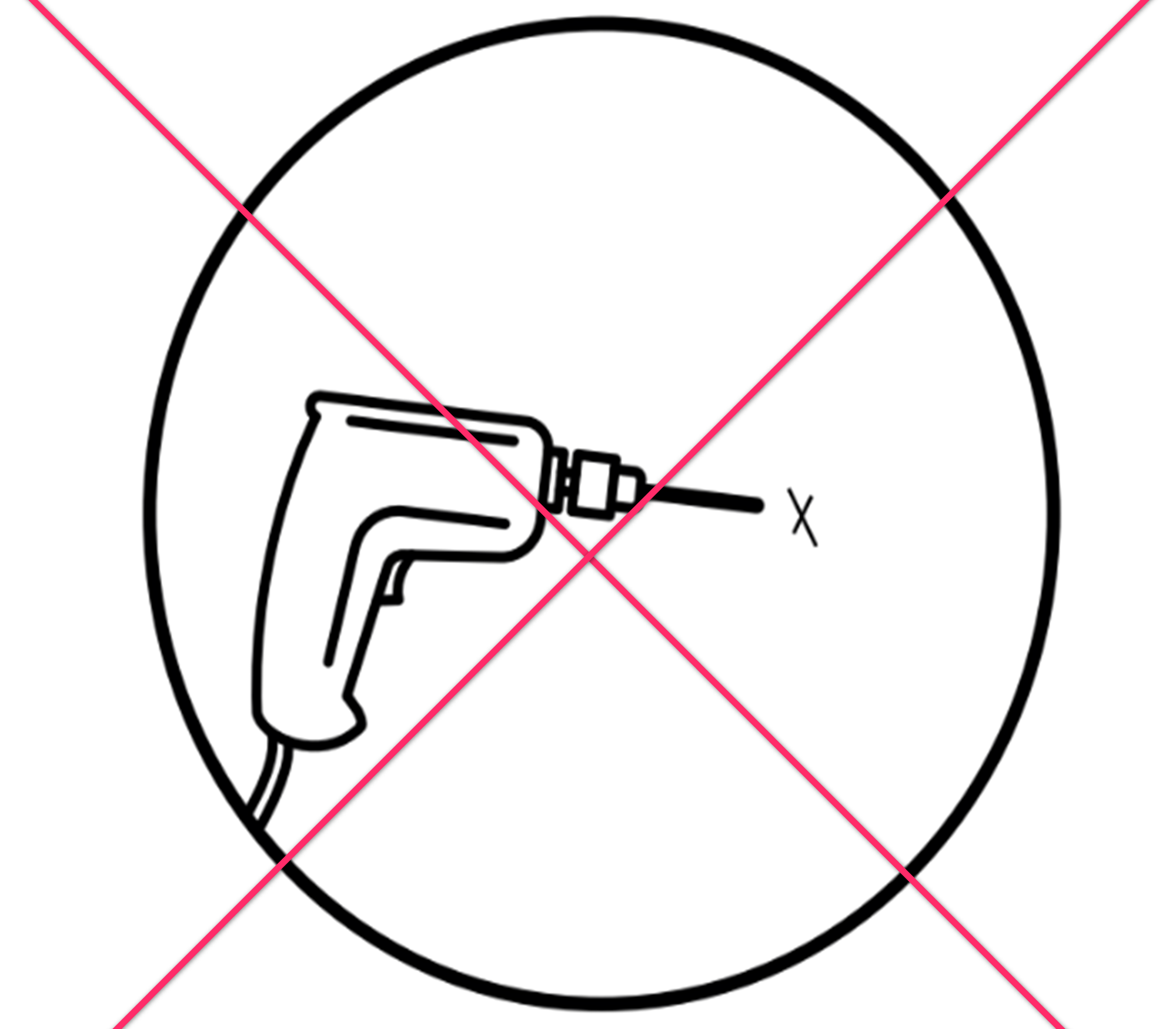

You don't need any other tools to assemble your bar as it comes with a quick-release clamp to make it super-easy to use.

It takes around 15 minutes to assemble and install the bar.

Got a problem?

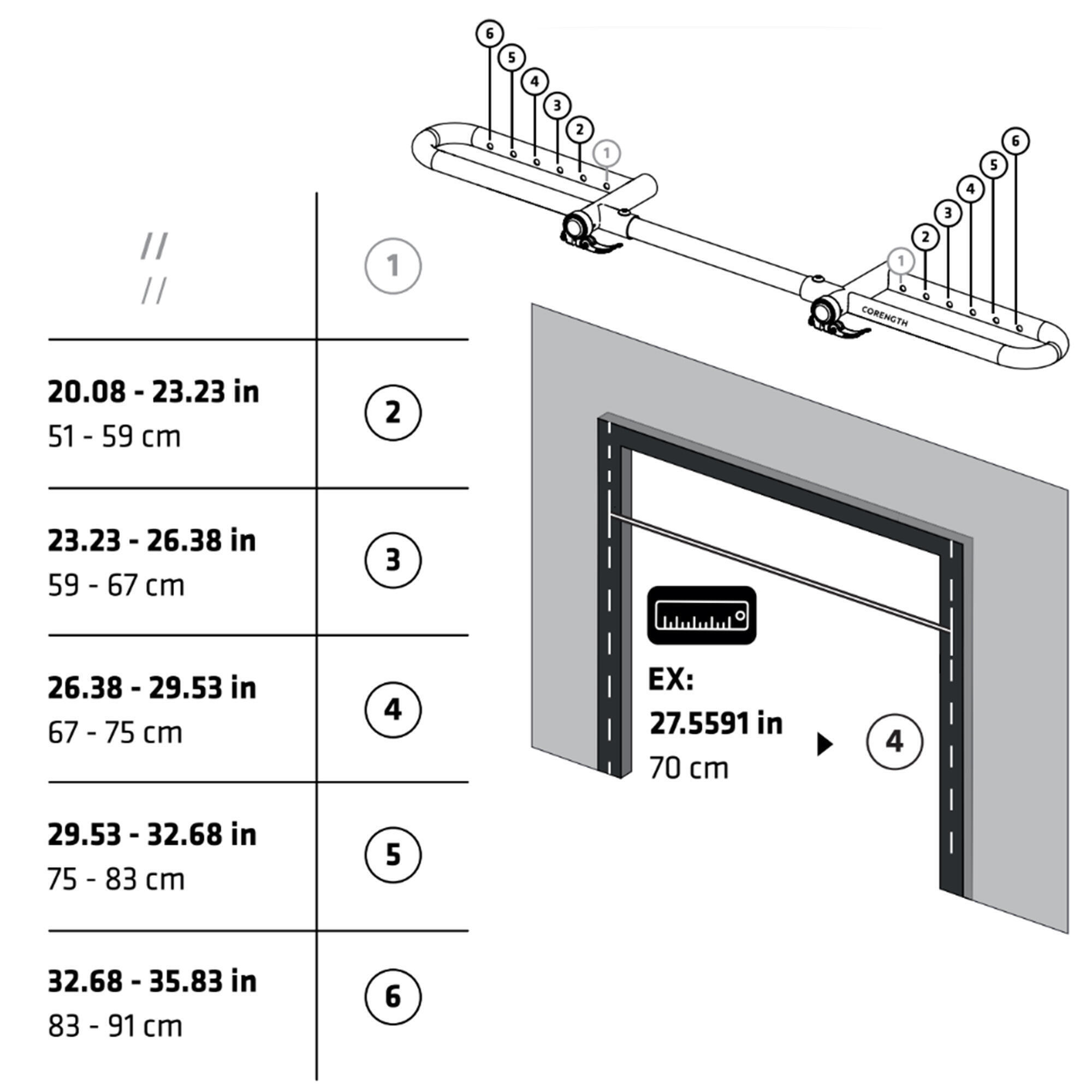

How do you adjust this bar once it's on the door frame?

The bar can be adjusted to the width of your door frame.

Measure the distance between the two uprights of your door frame.

If your door is 51 to 59 cm wide: adjust it to position 2.
If your door is 59 to 67 cm wide: adjust it to position 3.
If your door is 67 to 75 cm wide: adjust it to position 4.
If your door is 75 to 83 cm wide: adjust it to position 5.
If your door is 83 to 91 cm wide: adjust it to position 6.

The doorway should be between 7 and 20 cm deep.
The door frame must sit at least 1 cm proud of the wall.

Please check the user guide or watch the assembly video to see how to correctly position the bar.

Remember to fully tighten every part.

PROBLEMS
Can you still use the bar on a damaged door frame?

It's vital that your door frame is in good condition and is the size indicated.

It must be able to take the weight of you + the bar + the force you're going to put through it.

PROBLEMS
Can this bar go on a wall?

This pull-up bar can't be fixed to a wall.
Click here to view our range of wall-mounted pull-up bars:

PROBLEMS
Is the bar repairable?

Spare frames are not available for this door frame pull-up bar.
If there's a problem with your bar's frame, please contact your local store.
You'll find the rest of our spare parts here:

PROBLEMS
MISSING PART

Please check the box carefully.

If the part is missing, please make sure you have proof of purchase and submit a support request by clicking on "REQUEST ASSISTANCE". Our support team will then be in touch.*

PROBLEMS
Can this pull-up bar be installed at a gym?

WARNING
This pull-up bar is for private, domestic, non-professional / non-public use only.

PROBLEMS

Our door frame pull-up bar

You'll find all our spare parts here:

Octagonal 300 trampoline
Hexagonal 240 trampoline

Find all of our spare parts

Easy to do yourself! Find all of our spare parts here:

Our tutorials on repairing your door frame pull-up bar

REPAIR YOUR BAR YOURSELF

Changing the ends

Our ends and stoppers clip onto the bar.
You'll need a flat-head screwdriver to remove the ends.
Gently push the screwdriver between the end and the frame.
Pull out the end - there's nothing holding it in.
Insert your new end, using a mallet if needed.
Your old end can be recycled
REPAIR YOUR BAR YOURSELF

Changing the clamp

Open the clamp's lever.
Use the tool to undo the nut.
Remove the clamp.
Install the new clamp.
ASSISTANCE

Can't fix the problem? Is your product under warranty?

PLEASE CONTACT ONE OF OUR TECHNICIANS.
You will need to know your serial number in order to request support.

Good to know

COMPOSITION

100% steel

Weight and dimensions

Height: 65 cm
Width: 104 cm
Depth: 58 cm

Product weight: 5.1 kg

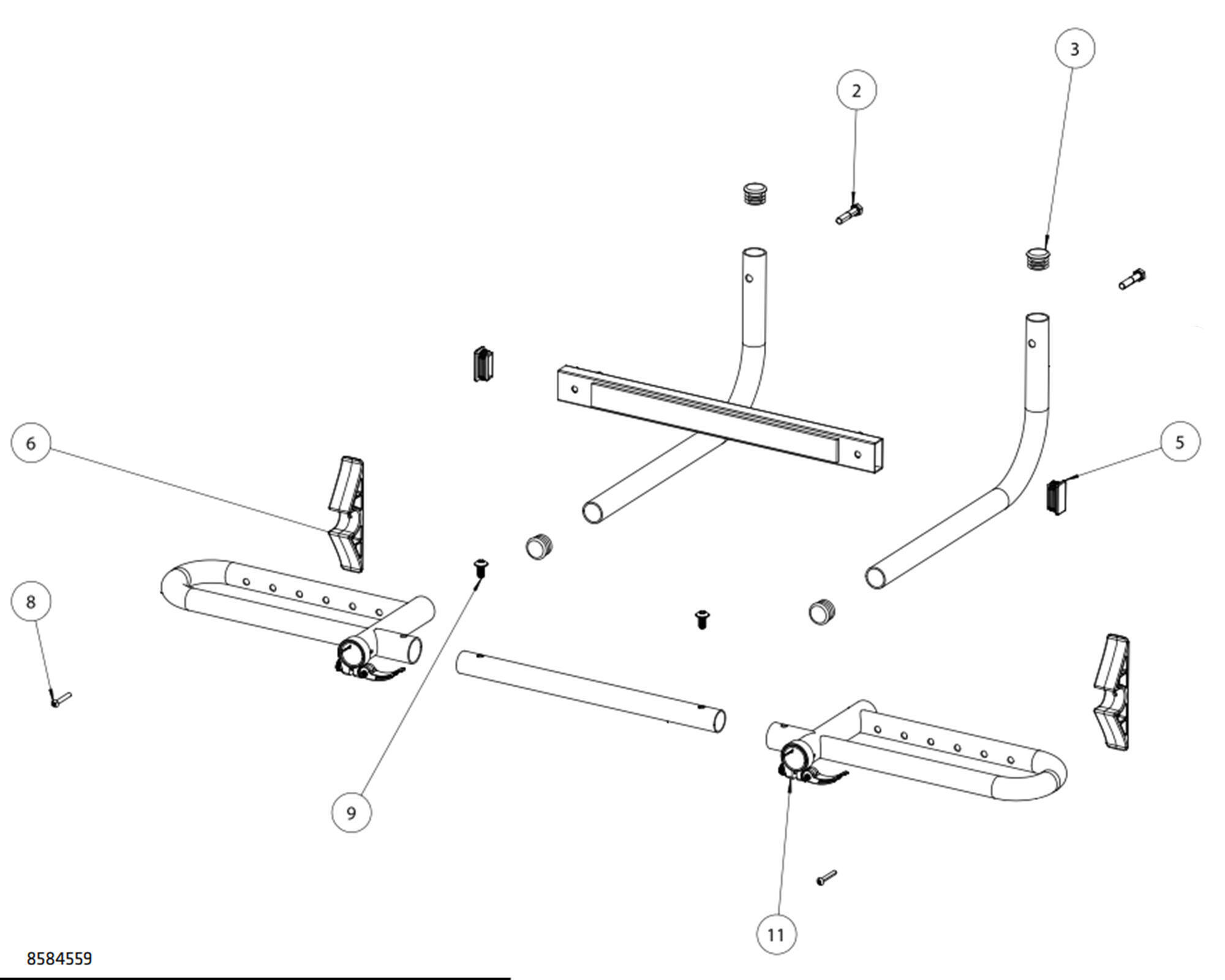

Exploded diagram & user guide

Got a question or need more info?

Corength

OUR COMMITMENTS

Corength offers a 2-year warranty on your product's parts and labour under normal conditions of use from the date of purchase as shown on the receipt*.

*Details below.

Pull-up bar

WARRANTY

Corength offers a 2-year warranty on this door frame pull-up bar.

Corength offers a 2-year warranty on your product's parts and labour under normal conditions of use from the date of purchase as shown on the receipt.
Corength's obligation under this warranty is limited to repairing or, should that not be possible, replacing the product, at Corength's discretion.
This warranty does not apply in the event of:
        * Damage caused during transport.
        * Incorrect assembly.
        * Repairs performed by technicians not certified by DOMYOS.
        * Improper or abnormal use.
        * Use other than private use.
This commercial warranty does not exclude the legal warranty applicable in the country of purchase.
Product for home use only.
