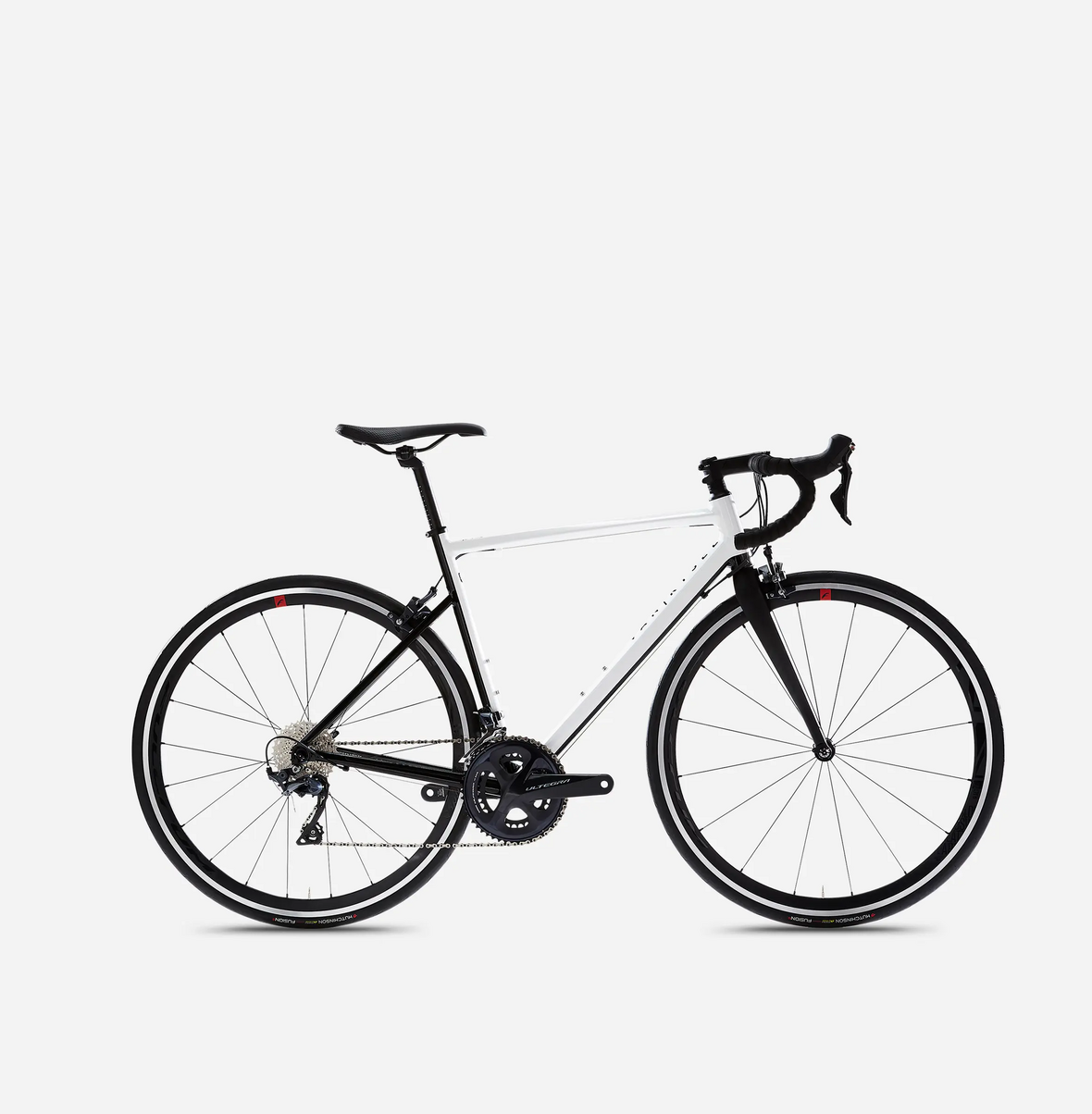

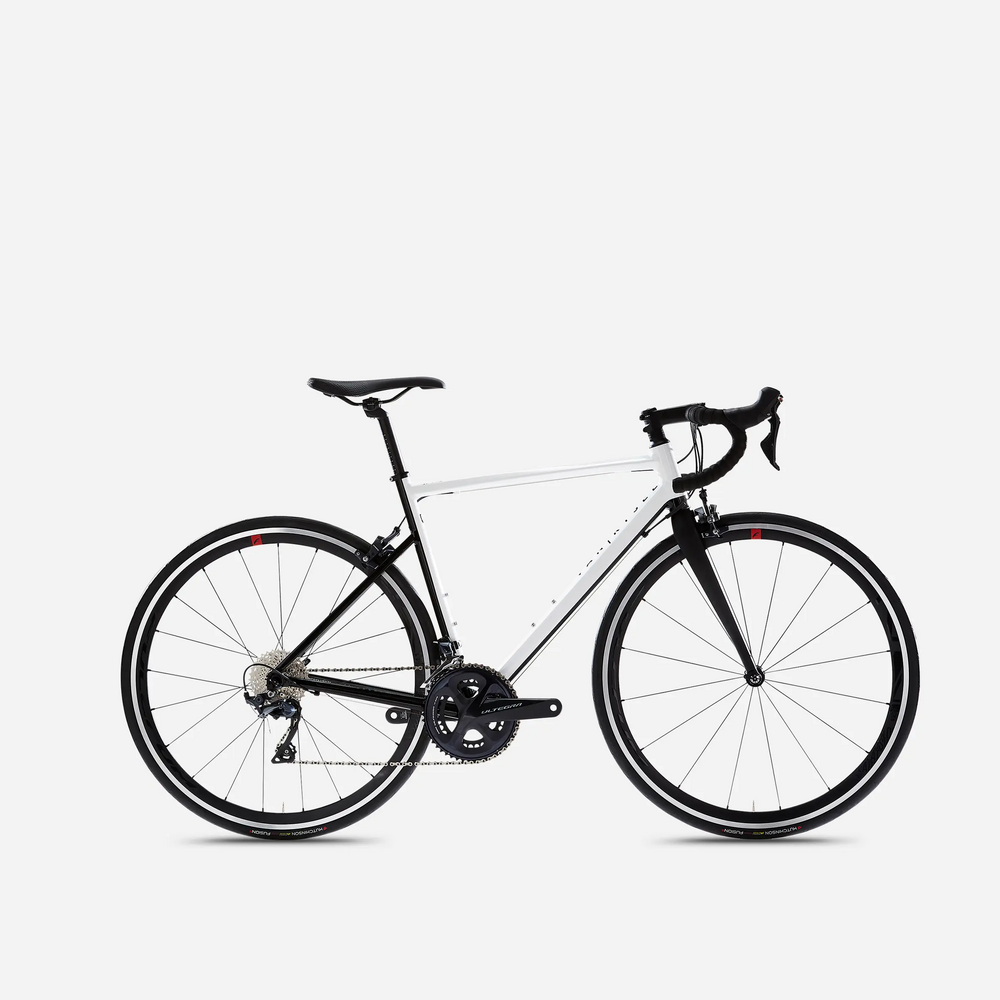

Welcome to the after-sales service page for your EDR AF Ultegra White and Black
Your new aluminium endurance bike is perfect for doing sportives. The EDR AF ULTEGRA is a machine that pairs reliability with performance.
The big brother of the EDR AF 105, it has a variable-thickness aluminium endurance frame like its younger sibling, but also boasts the reliability of the ULTEGRA groupset and the aerodynamics of the Fulcrum Racing wheels
To help you assemble your bike, take a look at our video tutorial!
When mounting the stem, the screws that hold the handlebar to the stem should be tightened to 6 Nm in an "X" pattern.
Remember to close the callipers to set the pads closer together before using the bike.
-
Find all the info you need to keep your bike in good shape
To look after your bike properly, you need to have the right tools.
In the article below, you'll find all the checks to be performed before any bike ride:
To set your saddle correctly, it's important to fasten your seat post properly. A loose seat clamp runs the risk of your saddle dropping during your ride. On the other hand, if you tighten it too much, you might crush your seat post and therefore damage your bike. The best way of tightening your seat post is to use a torque wrench. We recommend tightening to 6 to 7 Nm. Be careful not to exceed the maximum height shown on the seat post.
Riding with worn tyres comes with risks: Loss of grip, Exposure to punctures. In this article, we're going to help you recognise a worn tyre:
The chain is an essential part of your bike's drivetrain. It is important because it connects the chainset and the cassette. It transfers energy so that you can move forward efficiently, so it needs to be in good condition. This article explains how to recognise a worn chain:
To work out whether your brake pads are worn, you'll need to measure how thick the rubber is. If the wear indicator shows that it's too thin, you should change your brake pads.
You're sure to find the answer to your questions in the FAQs
Are your pedals broken? Do you want to swap your pedals for clipless ones? Follow our tips.
Please note that the screw thread on the left pedal is the other way around. You therefore screw this pedal on anticlockwise. The right pedal has a normal thread.
Make sure to use the correct tool to remove your pedals as you will need to use some force to unscrew them.
If you notice that your brakes aren't very effective, there are several things you can do:
- Clean your rims using a degreaser
- Check your brake pads for wear.
- Check that the cable tension is OK.
If your gears are skipping, you should check:
- Whether your drivetrain is worn.
- The tension of the cables.
After that, adjust the derailleur.
Are your chainrings worn? Do you want to change the number of teeth? It's easy to change your chainrings. To do so, simply use an Allen key to undo the bolt that holds the chainrings on. Then install the new chainrings. On this bike, the minimum chainring size is 34t.
Do you need a spare part? Discover all of our spare parts.
You can do all of the procedures described below yourself or you can get your local Decathlon workshop to do them for you. For more information about the services the workshop offers, please click the link below.
Shimano ultegra rear derailleur
Shimano ultegra front derailleur
Fulcrum wheels
VAN RYSEL guarantees the frame, handlebar and stem of your road bike for life (in normal conditions of use).
The guarantee for other parts is two years.
As soon as you start using the bike, some components will move slightly. It's for that reason that we offer a free check of your road bike within 6 months of purchase.
The table shows the main bike components, the types of wear that aren't covered by warranties, and the warranty length within the European Union.
Please contact one of our technicians who will be happy to help
