To maintain
- Stock your Electronic Dartboard in a dry place : Don't let outside your dartboard even if it's under a cover. Electronic part could be oxidized and cause failure.
- Don't use rechargeable batteries : their voltage is sometimes to low.
Ref: 8295138

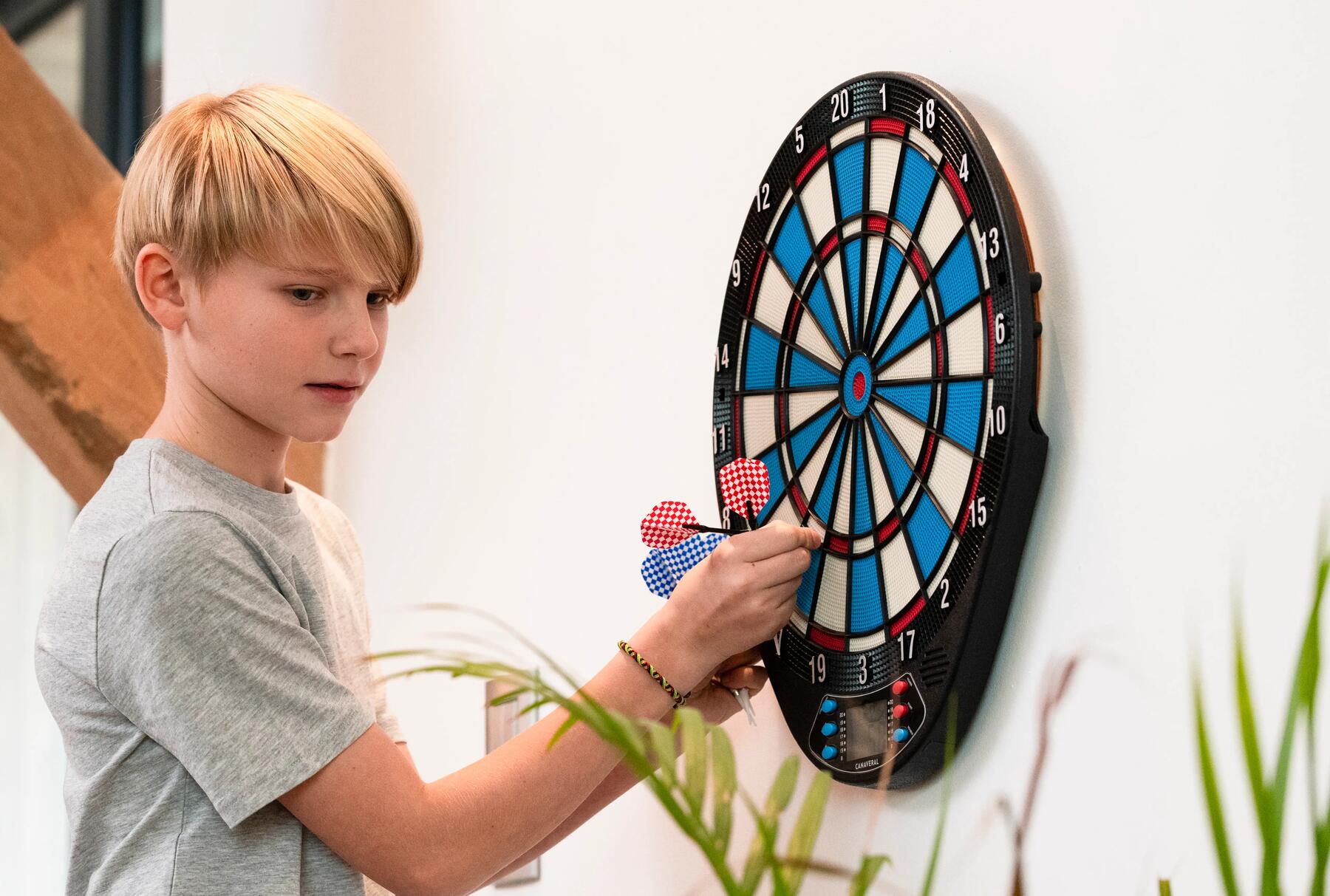

ELECTRONIC DARTBOARD ED110
2021
Troubles with your dartboard ? Don't throw it away !
Concerned about our product environmental footprint, it appears now mandatory to give you the possibility to repare your products.
On this page, we guide you step by step to repare yourself your electronic dartboard for each trouble. You will see that it is not difficult and you will be proud of you.
First use
Packaging content
This Electronic dartboard is sold with 6 darts and some tips.
How to turn on your dartboard ?
Put 3 batteries in the battery case (batteries are not included). Be carefull to respect polarity. You will find in the next section (5. SPARE PARTS) all the informations about battery reference.
Don't use rechargeable batteries.
Turn on the dartboard by pressing the power button if it has not automatically launched.
How to fix my electronic dartboard ?
Check this video :
Warning : Screws are not included.
Cible de fléchettes électronique ED110
Troubleshooting
Here you will find the Electronic Dartboard ED110 Troubleshooting File. By following the steps in this sheet, you can check if there is a possible problem with your product. If necessary, you will find in the next section (n°4. TO REPAIR) the tutorials indicated for the repair. You can also come to your local DECATHLON shop.
No more power (no display or sound)
How to control?
- Visually check that the battery connectors are not oxidized (white metal aspect).
- Insert ALKALINE 1.5V NON-RECHARGEABLE, NEW AND NON-EXPIRED batteries in the battery compartment, respecting the polarities
- Start the target by pressing the power button if it has not started automatically.
- The start-up music starts.
- Tap 3 times on the target and check that the screen remains on and does not turn off
How to fix?
If nothing happens: follow repair "Battery connection"
Problem with the lcd screen
How to control?
Switch off and restart the target.
The target successively displays 111, 222, 333 .... 999 on the screen.
How to fix?
If the screen is partially displayed: follow repair "Clean the contact between the screen and the electronic card"
If no display but sound when switched on: follow repair "Change of batteries"
If other: No solution
A button is blocked
How to control?
Target off, successively press Power, Bounce Out, Game, Player, Sound, Cybermatch, DoubleMiss, Start, Reset. Each time, an audible feedback must confirm the press on the button and when pressing the reset button, the target restarts
How to fix?
If a button is actually blocked, follow repair "Unblock a button"
A part or the full dartboard does not detect impacts
How to control?
After starting the target, it displays 111,222,333 ....
At this moment, type dry on a first segment (Simple 20 for example), a sound return should be heard.
Repeat the procedure on all segments
How to fix?
If the audible signal is absent for certain segments: Follow repair "Unblocking segments"
If the audible signal is absent for all segments: Follow repair "Mylar reconnection"
If other: No solution
To repair
The following repairs can be carried out on this product :
If your product cannot be repaired, take it to a WEEE collection point or any DECATHLON shop to optimize the recycling.
Repair 1 : darts repair
Your dart tips, shaft or barrel are broken ? Don't worry. You will find all our spare parts in the section : 5. SPARE PARTS.
Repair 2 : battery replacement
Open the doors of your dartboard and put 3 batteries in the battery case (bottom left corner). Be carefull to respect polarity. You will find in the next section (5. SPARE PARTS) all the informations about battery reference.
Don't use rechargeable batteries.
Repair 3 : reconnecting mylar
Please watch this video :
Cible de fléchettes électronique ED110
Repair 4 : unlocking segments
This operation has to be repeat for each segment.
Cible de fléchettes électronique ED110
Repair 5 : battery connection
Please watch this video
Cible de fléchettes électronique ED110
Repair 6 : clean the connection between the screen and the electronic card
Please watch the video
Cible de fléchettes électronique ED110
Repair 7 : unlock button
Please watch the video
Cible de fléchettes électronique ED110
Spare parts
Here is the spare parts list for the Electronic Dartboard ED110 :
You can order spare parts on our decathlon.co.uk site (depending on availability) by clicking on one of the buttons below or contact the after-sales team at your usual DECATHLON store.
Plastic dart
ref : 8402105
Piles
ref : 8289839
Second hand resale
Using the check-up sheet, you can perform a pre-check of your product.
Once your product has been checked by our teams, you can offer it for resale as a second-hand product and thus participate in putting your old products back into circulation
Sorry, this service is currently only available in France
