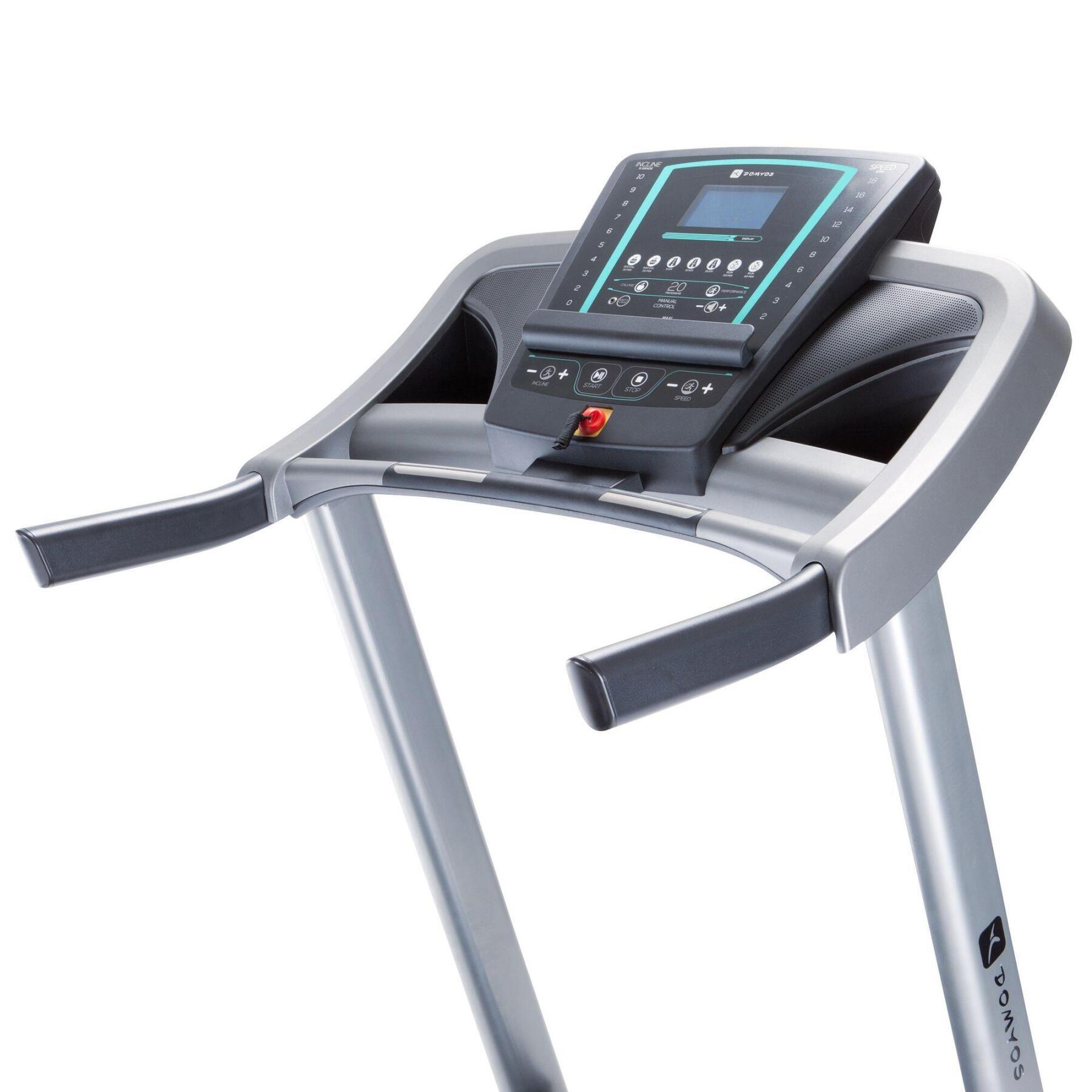

ENERGY RUN

REF: 8353402

ENERGY RUN

2018

Year sold: 2016

Designed for running at home

A treadmill with a very powerful motor, a large running surface and a very large backlit console with 20 training programmes to really push your limits!

BENEFITS:

VERSATILITY: Maximum speed: 18 km/h, motorised incline: 0 to 10%

USER COMFORT: Running surface: 51x135 cm

COACHING: 20 programmes and 5 functions: time, speed, distance, calories, BPM

ENERGY RUN

Composition / advice

COMPOSITION

DECK: 10% Polyacrylate, 10% Brass, 5% Epoxy, 40% Copper, 35% Steel

FRAME // CHASSIS (FOR THE ROLLERS): 20% Polystyrene (PS), 80% Steel



STORAGE RECOMMENDATIONS

We recommend storing your treadmill in a dry, ventilated room



USE RESTRICTIONS

Maximum user weight 130 kg

Problems

Is your equipment properly set up but you're still having an issue when using it? See all our FAQs here.

Your treadmill doesn't switch on

1. Check that the power cord is plugged into a wall socket in working condition (to check if the wall socket is working, plug in a lamp or another electrical device).

2. Make sure the other end of the power cord is plugged into your treadmill.

3. Check that the main switch near the power cord is in position I.

4. Check that the safety key is pushed fully home in the console.





ENERGY RUN
Parts diagram
ENERGY RUN
The treadmill incline isn't working or is blocked

If the treadmill did not have enough time to calibrate the incline:

=> Turn the treadmill off, turn it back on and insert the safety key

=> Let it run through the full calibration cycle. The treadmill will raise up to its maximum incline before coming back down to zero. This process can take several minutes.

To force the treadmill calibration:

1. Press Stop and "SPEED+" at the same time

2. Insert the safety key while continuing to press the buttons

3. Press "STOP" once and the screen information will appear

4. Press "INCLINE+" to launch the calibration.

Your console isn't showing the right speed

Before you start, make sure your treadmill is plugged in to the mains.

1. While holding the "STOP" button, insert the "SAFETY KEY"

2. The unit will be displayed on the lower right of the screen:      ENGLISH=MILES    METRIC=Km/h

3. Press "+" to change the unit

4. Remove the "SAFETY KEY" to validate the changes





Your treadmill is making a noise

The screws are loose:

=> Tighten all of the screws.



The running belt is wonky:

=> Select the "Centring the running belt" tab in the MAINTENANCE section.



The running belt is not lubricated:

=> Select the "Centring the running belt" tab in the MAINTENANCE section.



The treadmill slows down when you step onto it

The treadmill belt is slack:

=> Select the "Running belt tension" tab from the MAINTENANCE section.





ENERGY RUN

You weren't able to fix your problem or didn't find the answer to your question? please contact our technicians.

I maintain my product

Care and maintenance are important for the longevity of your equipment. Please find further maintenance instructions here.

Adjusting the position of the running belt (centring)

1. Locate the coloured indicators at the back of your treadmill. If they appear red, the band needs to be re-centred. This will enable you to protect the running belt and prevent the machine from stopping when you aren't expecting it to.

2. Turn your treadmill to 4 km/h (2.5 mph) and stand at the back of the machine.

3. If the belt has shifted towards the left: Turn the left adjustment screw through half a rotation, in a clockwise direction.

4. If the belt has shifted towards the right: Turn the right adjustment screw through half a rotation, in a clockwise direction.

5. Leave your treadmill running for the time it takes for the belt to move across (1 to 2 minutes) and repeat the operation if necessary.

Make sure, however, that you do not over-stretch the belt.

Adjusting the tension in the running belt

The running belt will be subjected to wear and tear and become less taut over time. Be sure to tighten it as soon as it starts to slip (a skidding sensation, with jerky changes of speed).



1&2. Turn the 2 adjustment screws through half a rotation, in a clockwise direction. Repeat this step if necessary but make sure you don't over-stretch the belt.

3. The belt is correctly stretched if you can lift the edges 3 to 5 cm on each side.

Lubricating the running belt

It is imperative that you keep your treadmill well-lubricated, so as to limit the amount of friction between the running belt and the deck. No lubrication is necessary if traces of silicone are present on the inner side of the running belt or on the deck (and the surface is damp and slightly greasy).

If the belt and the deck are dry:



1. Switch off your treadmill and unplug it.



2. Lift up the sides of the running belt and coat the inner surface with silicone.*



3. Plug your treadmill in again.



4. Make the belt rotate at a speed of 4 km/h (2.5 mph), with no-one on it, for 10 to 20 seconds.



5. Your treadmill is ready for use!



* A single lubrication corresponds to a dose of between 5 and 10 ml of silicone.

Please note that if you use too much silicone, you could harm the proper functioning of your treadmill (risk of skidding).

When buying lubricants, consult your local DECATHLON store or go to www.domyos.com.

Maintenance

Regular maintenance is necessary to maintain the performance of the machine and to extend the life of the product.

The following can help reduce treadmill noise:



        1. Tighten the screws and bolts once a month.

        2. Lubricate the running belt after 200 hours of use.

        3. Place a suitable floor mat (such as the Domyos Training Mat) under your treadmill.





Cleaning:



        1. Switch off and then unplug the treadmill.

        2. Apply a small amound of mild, multi-purpose cleaner, using a 100% cotton cloth. Do not spray directly onto the walking belt and do not use acid or ammonia-based cleaning products.

        3. Wipe the console and screens.

        4. Remove any dust and grime from the hand rails, uprights, foot rails, frame and motor hood. In addition, wipe the deck along the sides of the walking belt. Do not wipe under the walking belt.

8353402

Order spare parts for this product

NEED SPARE PARTS FOR YOUR ENERGY RUN TREADMILL?

Instructions

  • ENERGY RUN

    Need the product's user guide? Click to download.

ENERGY RUN

Our engagements

DOMYOS guarantees this product under normal use conditions, 5 years for the structure, 2 for other parts and labour as from date of purchase, as shown on receipt.
