Fit 3 Junior Inline Skates: user guide, repairs

REF: 8610536, 8767194, 8580559, 8596760, 8802028

Fit 3 Junior Inline Skates

2018

Thank you for buying the FIT 3 junior skates for your child. These are the perfect skates for improving your skating, going on your first rides, tackling obstacles and building up a bit of speed.
They make the ideal skating buddy for experiencing the freedom that skating brings!

Here, you'll find all the information you need for maintaining and repairing your FIT 3 junior skates.

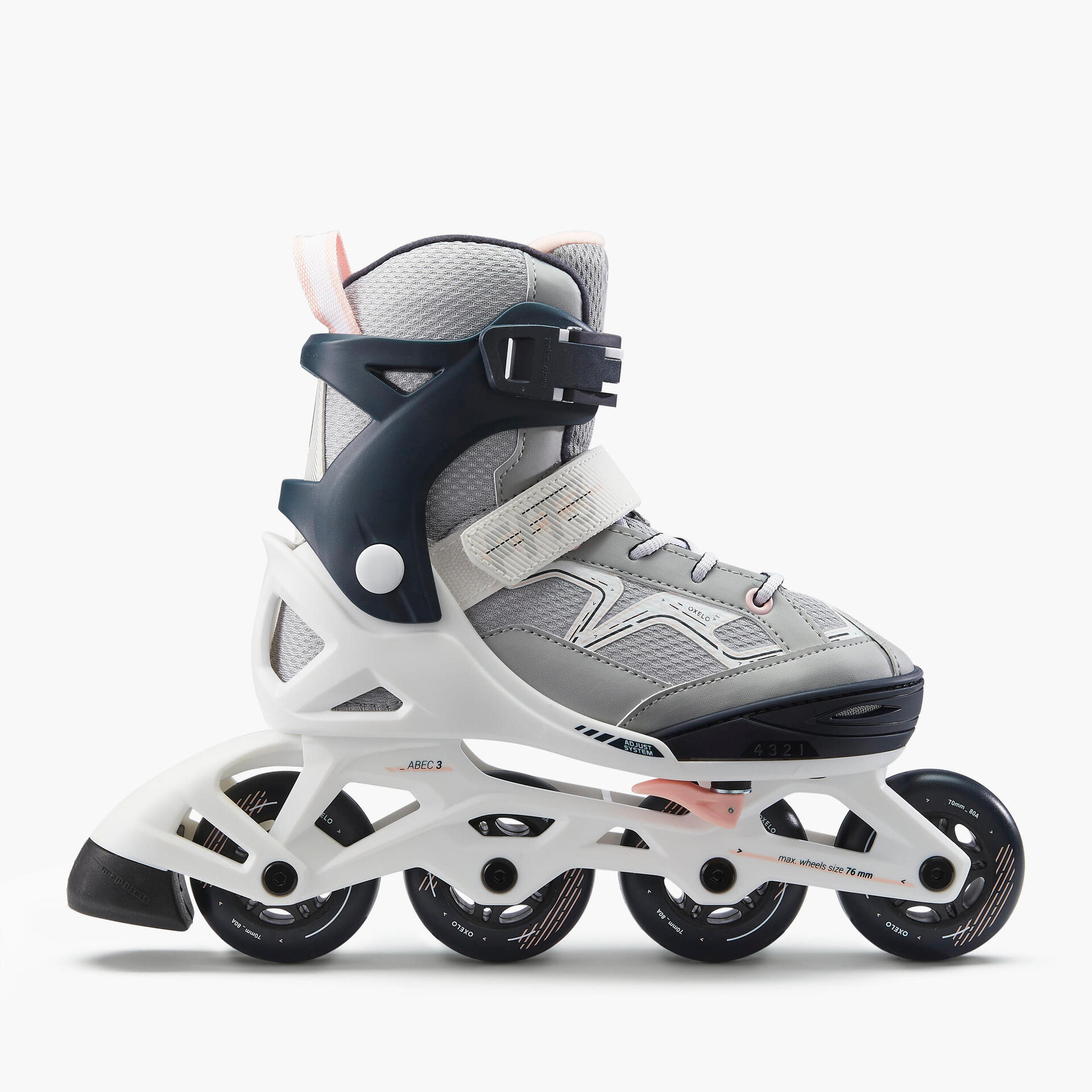

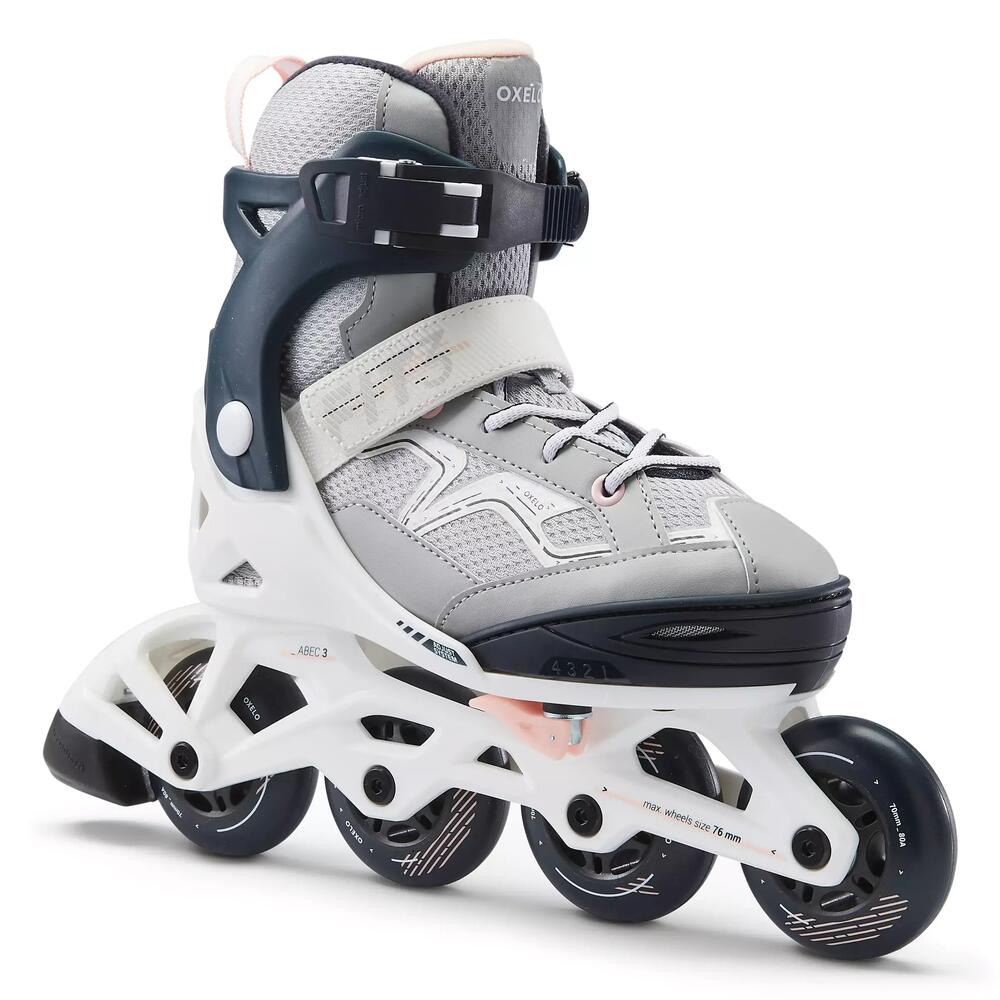

Getting to know your FIT 3 junior skates

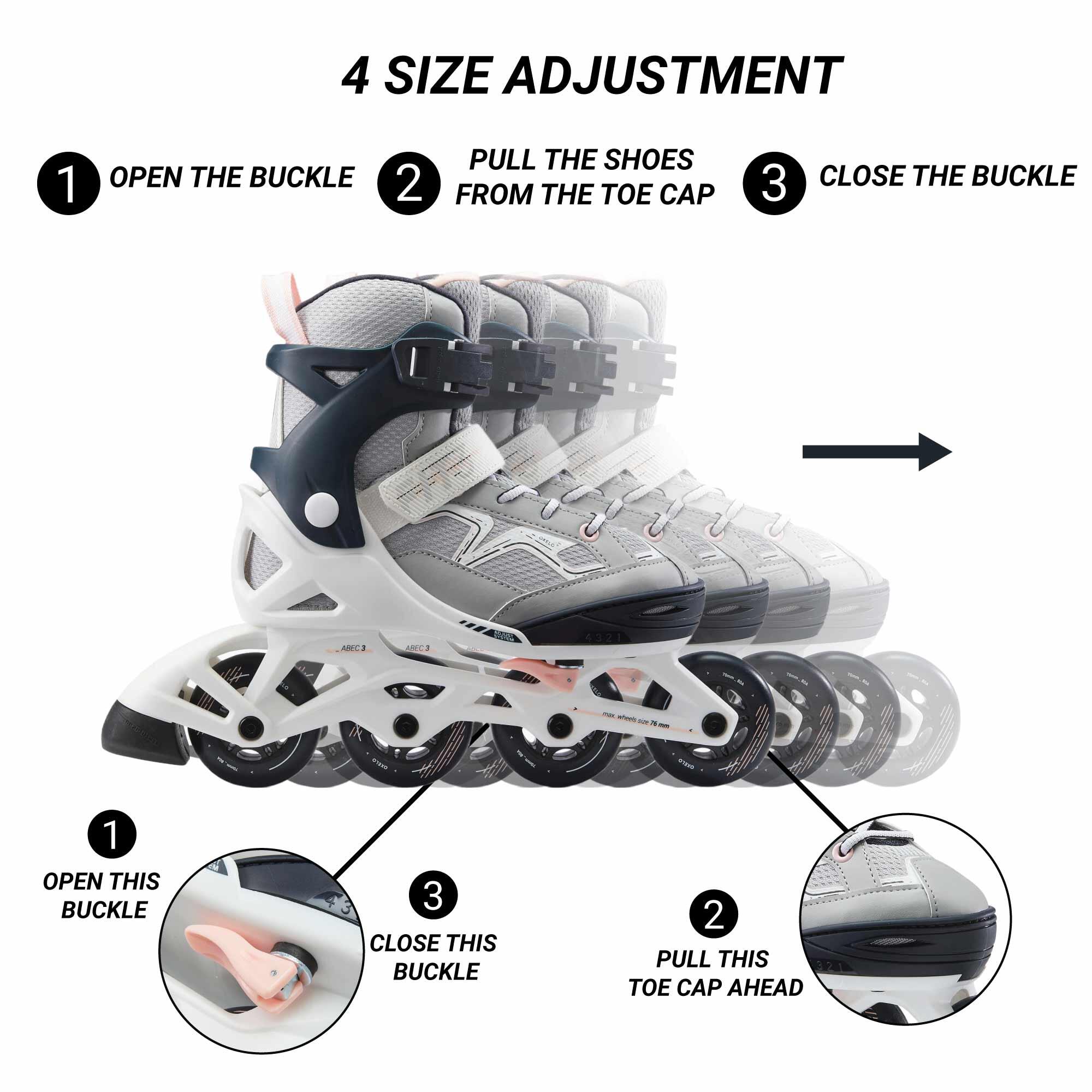

How to adjust the size of the FIT 3 junior skates

Did you know that the Decathlon Oxelo FIT 3 junior skates can be adjusted to 3 different sizes?
Because kids' feet grow so quickly, our entire range of kids' skates can be adjusted to grow with them.

How to adjust the size of the FIT 3 junior skates: 5 steps
1. Find the lever underneath the skate, on the outside of the front.
2. Lift it up.
3. Place one hand on the heel and one hand on the front.
4. Pull the front of the skate to make it bigger, or push it to make it smaller.
5. Each time your child tries the skate on to check the size, do up the lever to lock the length. Ideally, stand up to test the skates so that their foot sits in the correct position in the boot.

They're now ready for their first rides!

Fit 3 Junior Inline Skates: user guide, repairs

A glossary of the FIT 3 junior skates parts

It's easy to get lost among all the technical roller skate jargon. Here are the basic parts that you need to know about on the FIT 3 junior skates.

Fit 3 Junior Inline Skates: user guide, repairs

Maintaining and repairing the FIT 3 junior skates

How to change the wheels on the FIT 3 junior skates

Whether you're replacing damaged wheels or adapting the size or hardness of a wheel based on the ground or your riding conditions, changing the wheels is a basic skill that everyone should master.
It's one of the first things you'll need to do to look after your equipment. But as you'll see, it's really quick and easy.

How to change the wheels on the FIT 3 junior skates
1. Start by unscrewing all 4 wheels using a multitool and an Allen key.

2. Use the multitool to remove the bearings if you need to reuse them. If your future wheels already have bearings or you've bought different bearings, you can leave them on the wheel and remove any dust with a dry cloth.

3. Insert a bearing onto one side of a wheel then turn it over.

4. Insert the spacer (the metal cylinder) so that it's aligned with the hole on the first bearing, then insert the second bearing. If the spacer moves a little, don't worry. It'll get realigned with the bearings when you insert the axles. Using a spacer is optional but recommended because it keeps a gap between the bearings and offsets the pressure exerted by the bolt that holds the wheel in place. Most bearings can go any way around, but please check the packaging if you're unsure.

5. Put the wheels back onto the frame and insert the axle then the screw. Please note that one of the axles is bigger. This one is for the back wheel and holds the brake bracket. Remember to use the biggest axle for the back wheel.

Easy, eh? Don't forget to swap the wheels around every 10 rides or every 30 km to maximise the lifespan of each wheel and to keep skating comfortable.

How to change the bearings on the FIT 3 junior skates

You might want to change the bearings on your inline skates to change the glide performance or to replace broken bearings (that won't turn properly or that are making a grating noise).
It's very easy to do but you'll need the right tools to get the bearings out of the wheel cavity.

How to change the bearings on the FIT 3 junior skates
1. Use a skate multitool and a 4 mm Allen key to unscrew the axles and remove the wheels. Remember to lay the wheels out in front of you in the order they are on your skates. If you've already rotated them around a few times, it might be time to change them.

2. Insert the multitool into the centre of the bearing and push sideways to lever it out. The bearings might be reluctant to come out, but be patient and try turning the tool to exert pressure in several different places.

3. That's the hardest part over! Insert the new bearings (push them in using the multitool, if necessary) then put the wheels back onto the axle and then onto the skates.

Your new bearings are now ready and raring to go.

How to change the brake pad on the FIT 3 junior skates

If your child regularly uses the rear brake on their inline skates, you'll need to change it once the rubber is too worn to work effectively or the plastic of the brake bracket comes close to rubbing against the ground.
Thankfully, changing a brake pad is child's play (although we recommend that you take charge with your child's help, rather than the other way around). Here's how to do it.

It's worth noting that the brake pad is the rubber part of your brake. You can also change which side it's on based which is your child's dominant leg. Often, we recommend leaving it on the right if your child is right-handed, and swapping it to the left if your child is left-handed.

How to change the brake pad on the FIT 3 junior skates

1. On kids' skates, it's essential that you remove the rear wheel, which holds the brake bracket. To do so, use an Allen key and skate multitool to unscrew the rear axle and remove the wheel. You don't need to remove the brake bracket.

2. Use the skate multitool to undo the screw that goes through the brake pad. Watch out: there's a small metal piece that enables the brake pad screw to be screwed on and that sits behind the plastic brake bracket. Make sure to keep it safe so that you can put it back on again later.

3. Put the small metal piece back on behind the brake bracket. Insert the new brake bracket and screw it on.

4. Insert the wheel into the frame and put the axle back through the wheel, then screw it on.

And voilà!

How to swap the wheels around on the FIT 3 junior skates

As your wheels rub against the asphalt, the insides will get worn away. It happens every time you brake or push off against the ground, and is an inevitable part of skating. It can reduce the wheel's lifespan and make skating less comfortable.
To reduce this wear and make your wheels last longer, we therefore recommend regularly swapping your wheels around (every 30 km or so).

How to swap the 8 wheels around on the FIT 3 junior skates

1. Remove the wheels and lay them out in front of you in the order in which they were on your skates (front and back of the skate, inside and outside of the foot, and left and right foot).

2. Swap the back two wheels of the left skate with the front two wheels of the right skate.

3. Swap the back two wheels of the right skate with the front two wheels of the left skate.

4. Put the wheels back on in their new order, trying not to lose track of what's what (front right wheel becomes back left, its outside becomes its inside, etc.).

5. Handy tip: use thread lock to keep the screws tight and to protect the thread.

And just like that, you're ready to roll. Remember to swap the position of your wheels every 30 km or around every 10 rides for kids.
Just remember, inside becomes outside, front becomes back, and left becomes right. Once you've got the hang of it, we promise it'll only take a few minutes.

Fit 3 Junior Inline Skates: user guide, repairs

Spare parts compatible with the FIT 3 junior skates

Here is where you'll find all of the spare parts that are compatible with your FIT 3 Junior inline skates: wheels, brake pad, etc.

FAQ

Why is there only a brake on one foot?

There are several ways of braking with inline skates. One option is to use the rear brake pad. To do so, shift the foot with the brake on it slightly forwards and lift the front of the skate to slow yourself down. It's normal to only have a brake on one foot because you only need one foot to do this kind of braking (it's also more stable). We place the brake pad on the right foot as standard, but you can change which foot it is on.
Often, we recommend that left-handers place the brake pad on their left foot, but it's definitely a case of personal preference.
