Assembly
Thank you for choosing a DOMYOS product and for placing your trust in us. If you want to know how assembly your elliptical bike, click on the video.
REF: 8484396

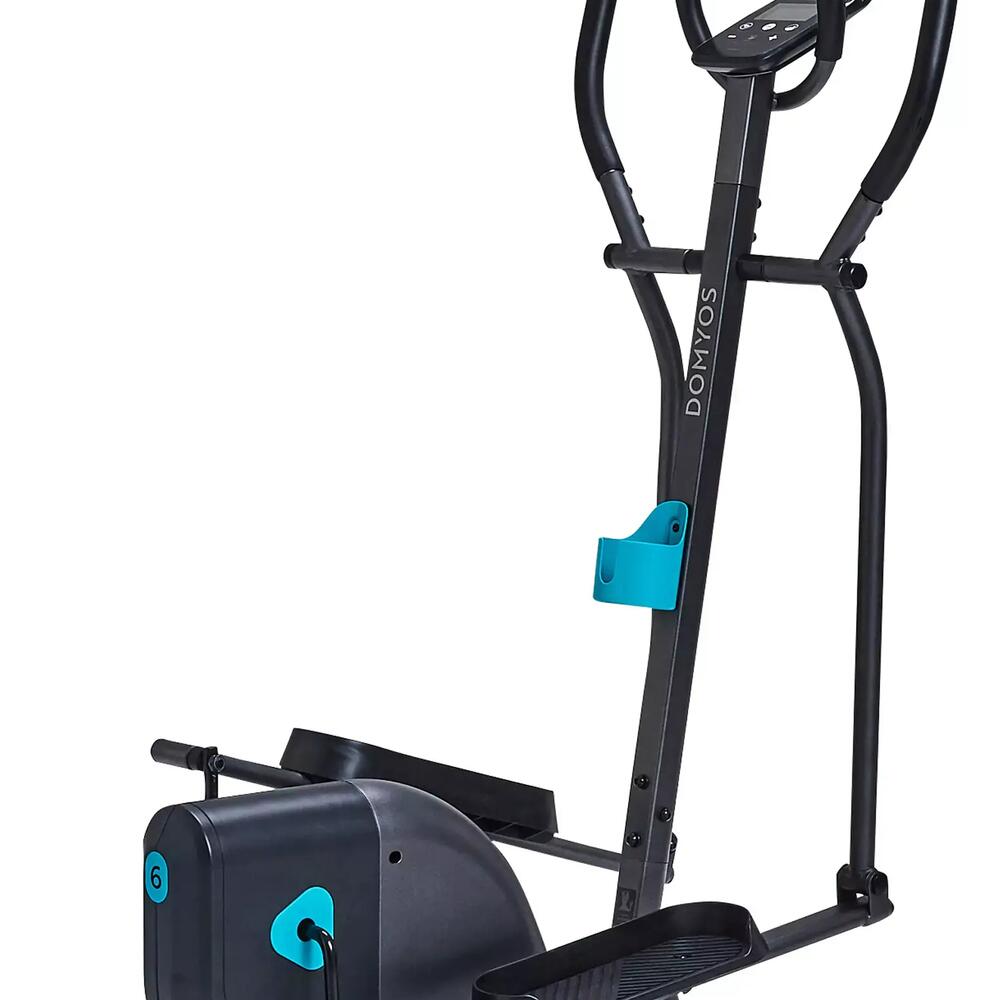

EL 120
2018
The 120 cross trainer was designed for beginners to help them tone their entire figure while burning a maximum of calories.
An entry price cross trainer with training programs
PRODUCT BENEFITS
SMOOTH PEDALLING: 6 kg flywheel.
COACHING: 5 functions (calories burnt, distance, time, speed, heart rate); 7 programmes
MANEUVERABILITY: Built-in wheels, making it easy to move
MONTAGE EL120
I have a problem
Your equipment is properly assemblied but you're having some difficulties during its use? Discover all of our solutions here.
My console does not show the correct units of measurement for distance
Console configuration problem:
1. Check at the back of the console and put the buton on "VE" (picture).
2. Press OK to start the elliptical bike.
3. Press and hold "OK" for a few seconds to display the unit of measurement.
4. Choose the correct unit "km" for kilometer/hour or "mi" for miles/hour.
5. Confirm your choice by pressing OK.
I can't fit the pedals
CAUTION, the axis of the left pedal arm is screwed in a counter-clockwise direction.
There's a clicking noise with each turn of the pedals
Unscrew the pedals by one turn, then screw them back on very tightly.
My console remains on zero
Check that the cables are correctly connected behind the console and where the bracket joins the main frame of bicycle.
I have a problem with the heart rate
1-Check the connection of the connector coming out of the handlebars
2-Moisten your hands slightly and place both hands on the sensors
My elliptical bike makes noise
1. Tighten all visible screws
2. Check the stabiliser runners
My elliptical bike is not stable.
Check on the rear foot to ensure that the stabilizers are properly adjusted.
My console does not turn on
1. Check that the elliptical bike is connected to the mains.
2. Check the LED at the back of the console = BLUE LED ON = console out
3. LED OFF = check the console connection.
4. Connection ok but the LED stay off = transformer is out
PARTS PLAN:
Would you like further help?
I maintain my product
It takes care of you, so why not you? A regular maintenance is necessary to preserve the performances of your apparatus and prolong its life, find here all our advices of maintenance.
Restricted use
Max. user weight: 100 kg.
For home use only.Care instructions
Regularly check that screws and bolts are properly tightened; wipe any perspiration off your product after each training session; dust regularly with a soft cloth.
Stock advice
Do not leave in a damp place; do not store outdoors.
I'm fixing
You want to repair your product yourself but you don't know how? Discover here all our tips and videos.
Rear foot tips change on a Domyos ELLIPTICAL 120
Rear foot tips change on a Domyos ELLIPTICAL 120
Handle bar change on a Domyos Elliptical 120
Rear connection change on a Domyos Elliptical 120
Speed sensor change on a Domyos Elliptical 120
Belt change on a Domyos Elliptical 120
Flywheel change on a Domyos Elliptical 120
Iddle wheel change on a Domyos Elliptical 120
Monoblock crankset change on a Domyos Elliptical 120
Computer change on a Domyos Elliptical 120
Monoblock crankset change on a Domyos Elliptical 120
Manual and software

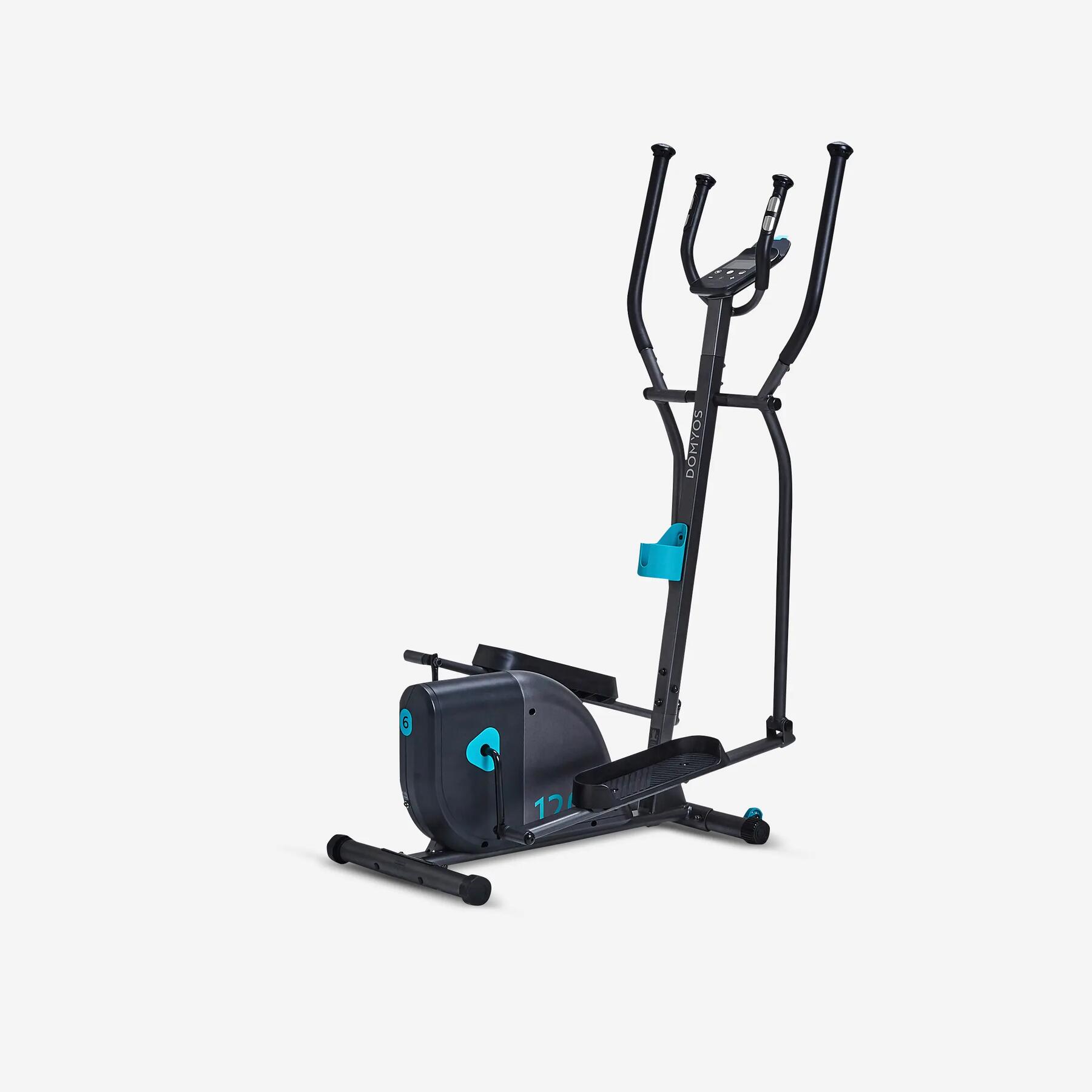

Ordering available spare parts
Do you need spare parts for your machine?
