BORIGINAL 500

REF: 8521632

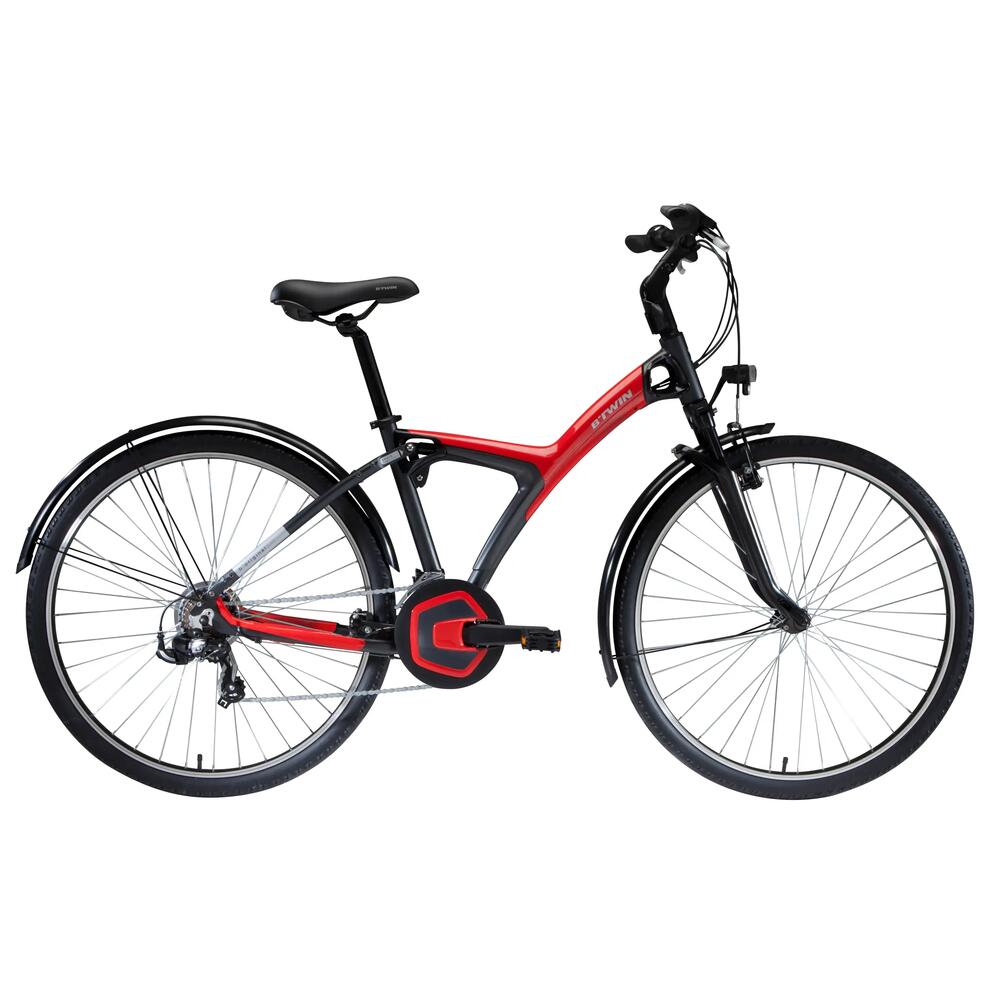

HYBRID BIKE B'ORIGINAL 500 2019

2020

Admire the landscapes near where you live with this hybrid bike designed for touring. Enjoy touring with the B'original 500. Optimise your position with its adjustable saddle and stem.

First use

Adjusting the brake pads

Brake pads are parts that wear out over time, so they need to be changed regularly.   Click on the video here to see how to change or adjust your bike's brake pads.

Technical details

TECHNICAL INFORMATION > FRAME Our engineers designed this unisex steel frame (molybdenum chrome) with lower geometry for easier step-through. The cables go through the inside of the frame for a more streamlined design.   > FORK The B'original 500 is equipped with an aluminium 6061 fork to absorb vibrations and impacts.60mm travel.   > DRIVE TRAIN 21 speeds with an SRAM ESP 3 grip shifter.In detail:- Triple chainring: 48 / 38 / 28 teeth.- SHIMANO TZ21 7-speed cassette - 14 / 28 teeth.- KMC Z8 chain with quick release.- 3x8 speed front derailleur - 34.9 MICROSHIFTM22.- 7/8 speed SRAM 3.0 rear derailleur.   > BRAKES Brake effectively using the two V-brakes.The 2 steel callipers are equipped with pads that exercise pressure on the rim to slow or stop the rotation of the wheels.Aluminium brake levers.   > HANDLEBAR / STEERING / STEM With the adjustable height and tilt of the stem (Allen wrench), the B'original 500 optimises your steering comfort.In detail:- Durable semi-integrated 1""1/8 headset.- Semi-raised handlebars (Width: 580 mm in size M, 620 mm in size L).   > SADDLE / SEAT POST Because it's important that your seat position is adapted to your riding style, our teams developed the exclusive B'Twin Ergofit Trekking 500 saddle.Aluminium seat post with built-in anti-theft system.Collar dimensions = 35mm.Seat post diameter = 31.6 mm.Easy and tool-free saddle height adjustment (quick-release).   > WHEELS Go for a ride with the aluminium single-wall wheels on the B'original 500.To transport your bike, the quick-release on the front wheel makes it easy to remove.36-spoke front and rear wheels.Wheel diameter:- Size M: 26 inch.- Size L: 28 inch.   > TYRES The B'original 900 is equipped with versatile hybrid Skin wall tyres (lighter walls) for riding anywhere in maximum comfort.The recommended pressure is: minimum 2.8 bars and maximum 5.1 bars (details on the tyre walls).Dimensions:- In size M: 26 x 1.75 (44-559).- In taille L: 700 x 42C (44-622).   > PEDALS The B'original 500 comes with single-piece plastic pedals.170mm-long aluminium cranks.Plastic chainguard.   > ACCESSORIES Your B'original 500 is supplied with a bell, LED lights (front/rear), wheel reflectors and pedals.Depending on the accessory type and size of the bike, the frame is compatible with:- Stand.- Bottle cage with B'Twin adapter (8385631 or 8339445).- Saddlebag.- Rear pannier rack.- Child seat (depending on bike size).   > WEIGHT S/M: 17 kgL/XL: 17.75 kg   INFORMATION / DESIGN / TECHNOLOGIES   > USE RESTRICTION The B'Original 500 is not designed for BMX or mountain biking. The total weight (bike + rider) should not exceed 120 kg   > STORAGE TIP Store in a dry place.   > WARRANTY B'TWIN provides a lifetime warranty on the frame, stem and handlebar of the B'Original 500

User guides and manuals

HYBRID BIKE B'ORIGINAL 500 2019
