REF: 8784314, 8740091
2023

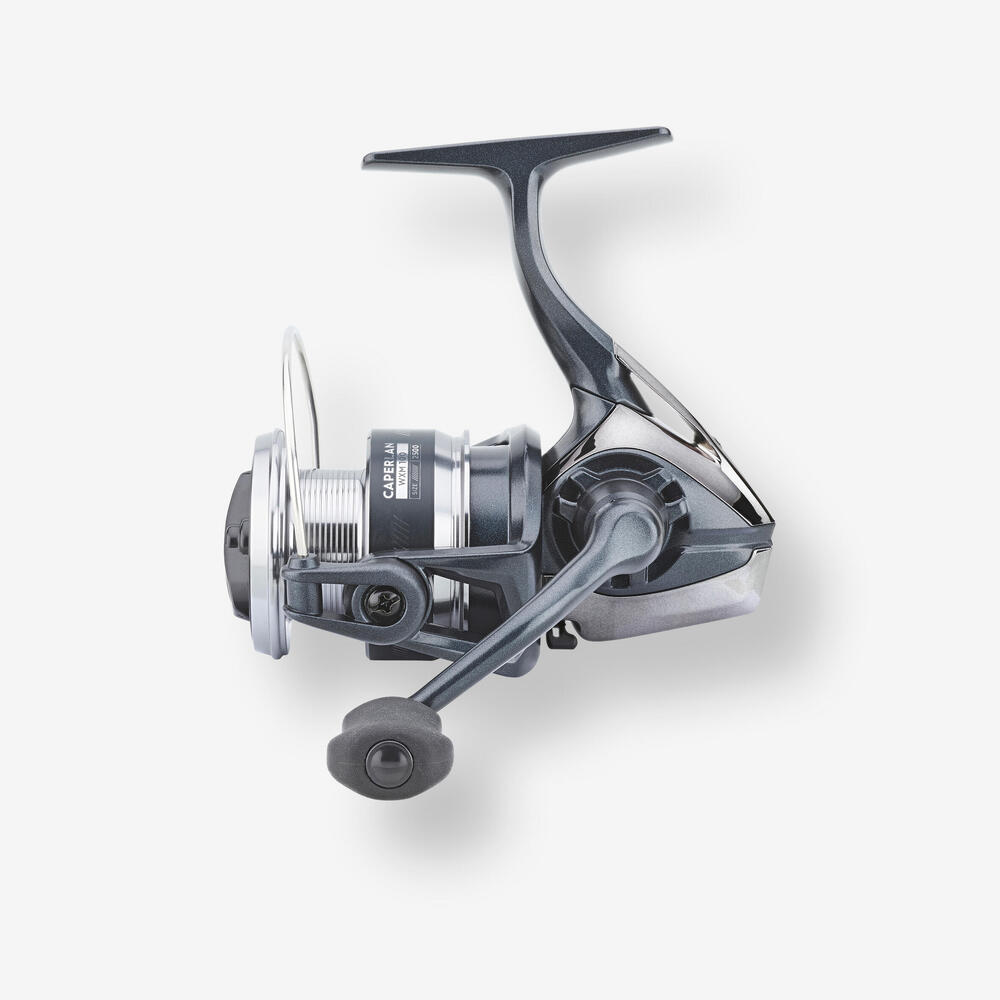

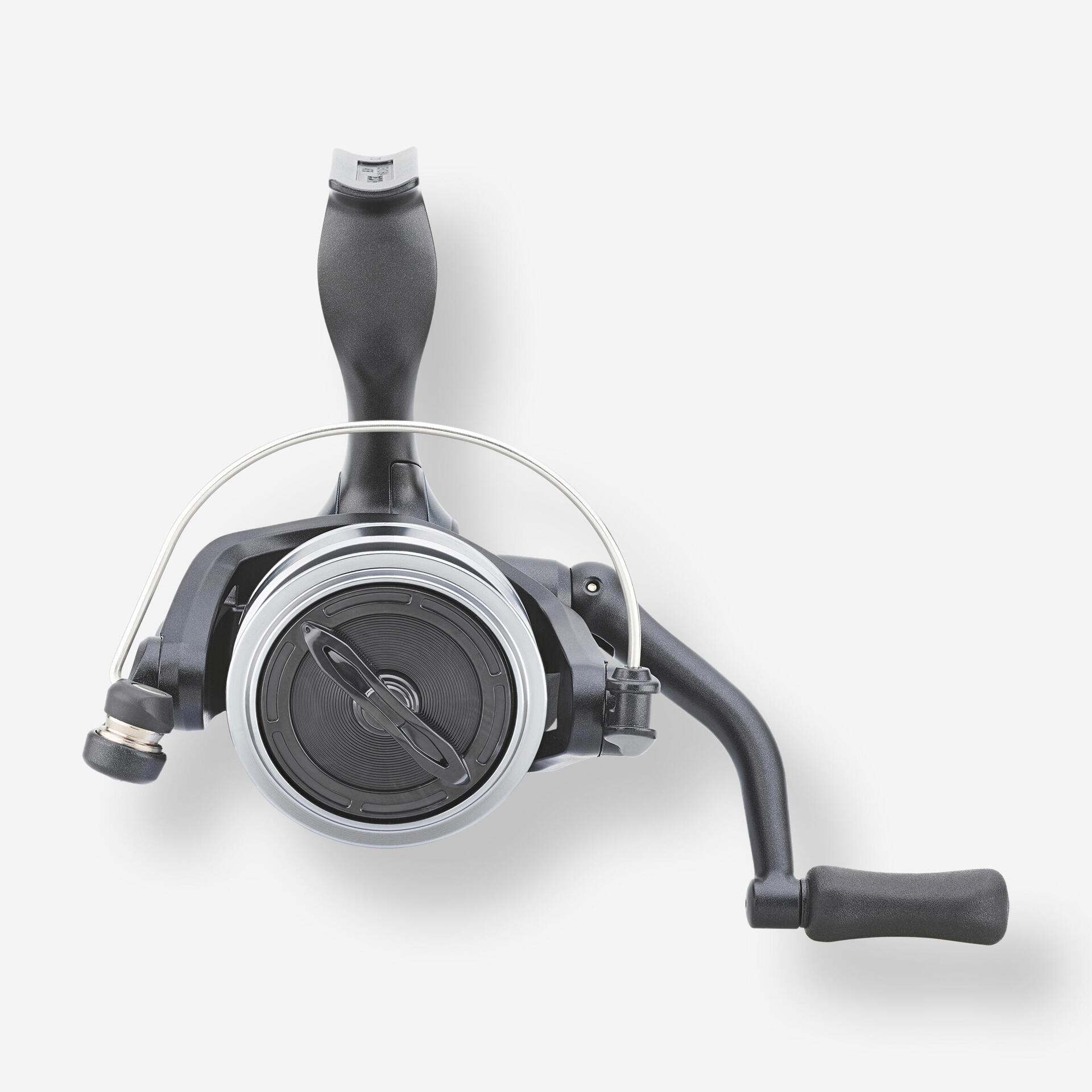

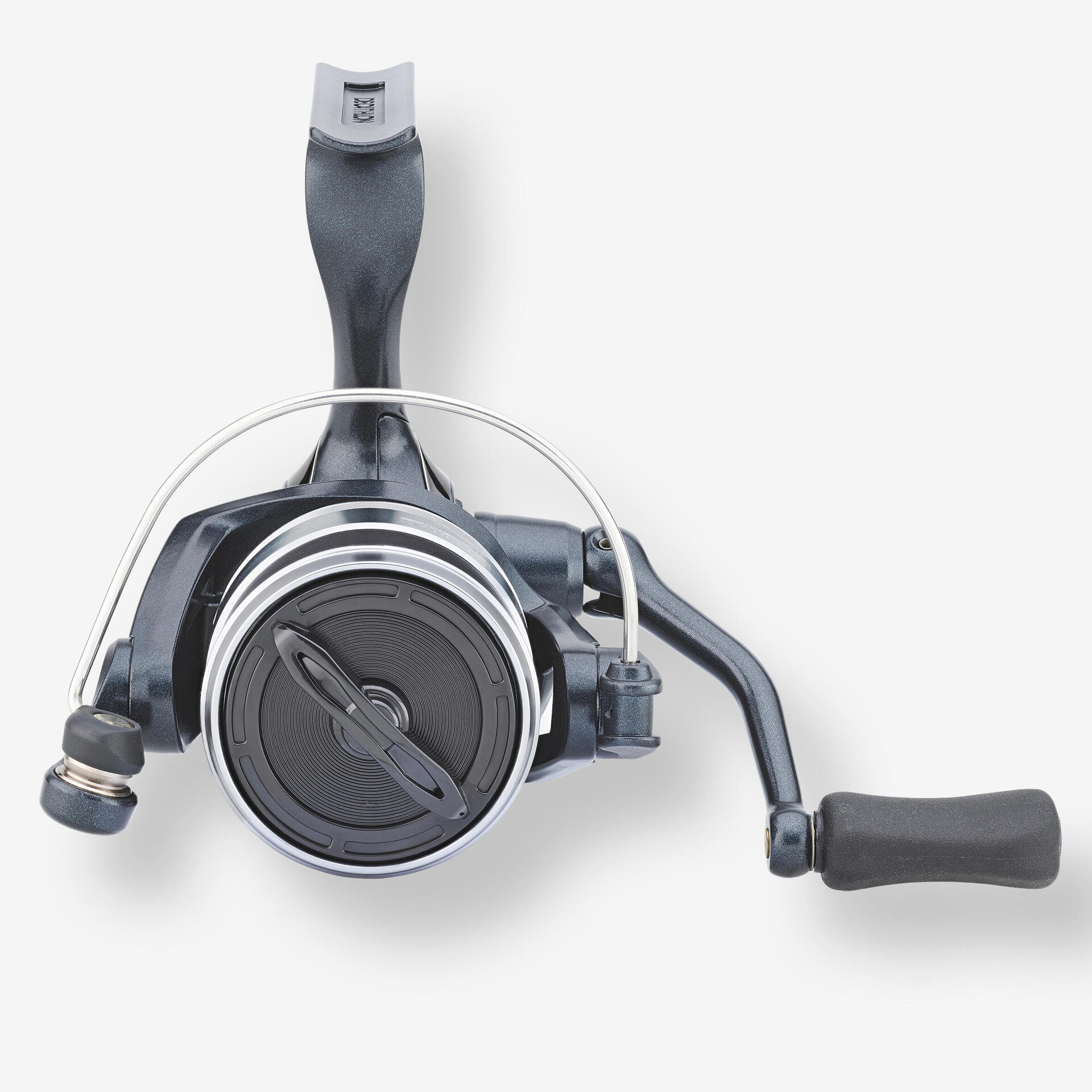

Do you have a WXM 100 lure fishing reel? Find out about all our after-sales service solutions for repairing, maintaining and prolonging the lifespan of your product.
1/ Tighten the screw located on the frame opposite the crank
2/ Make sure that there is no play in the crank
3 / Turn the reel and make sure that it is working properly
WXM 100
1/ Unscrew the crank retaining screw and remove it
2/ Remove the crank
3/ Fit the crank on the desired side
4/ Screw the retaining screw back in.
WXM 100
1/ Unscrew the brake button and remove it
2/ Remove the spool from the axis (without removing the washers placed below it)
3/ Position the new spool onto the axis, turn it in on itself until it clicks into place
4 / Re-screw the brake button (taking care to ensure that the brake button is correctly position to avoid damaging the screw thread)
WXM 100
When a big fish pulls on the line, the drag releases the line to prevent breakage. It is therefore important to set the casting weight of the drag so that it is slightly below the breaking strain of the most fragile part of the rig.
- Tighten the drag knob (clockwise) to increase drag torque.
- Unscrew the drag knob (anticlockwise) to reduce drag torque.
1/ Install your reel
2/ Pass the line through the guides.
3/ Make a loop or self-tightening knot, then cut off the excess line.
4/ Open your pick-up.
5/ Place the loop around your spool.
6/ Close your pick-up and tighten the line.
7/ Dip the spool of line into water.
8/ Using a cloth, keep pressure on the line and turn the crank of your reel.
Fill to the top lip of the reel spool: an underfilled or overfilled reel will see its casting performance greatly reduced.
Maintaining your reel is essential to ensure optimal performance and prolong its life.
A well-maintained reel ensures smooth, accurate casts and reliable operation when fighting fish. What's more, preventing the build-up of dirt, moisture and debris helps to avoid corrosion and damage. By investing time in maintenance, anglers preserve their experience, maximise their chances of success and respect their equipment.
In this video, we'll cover all of the important information on taking care of your reel.
Here, the video refers to a sea fishing reel, but the method is similar to the one used for a fresh water reel.
1/ Hold the reel in a horizontal position, with the brake tightened and crank screwed: rinse in low-pressure fresh water (tap/shower) without immersing the reel in water!
2/ Make sure you rinse the spool really well (around 15 seconds)
3/ If needed, use a toothbrush to remove any dirt from hard-to-reach places
4/ Quickly turn the reel to get rid of excess water
5/ Remove the spool and dry it using a soft, dry cloth
6/ Add a drop of oil to any sensitive points (roller, axes, crank button, bearings on each side of the casing) then turn the reel
7/ Store in a dry place with the brake loosened
NB: Be careful when using anti-grip products such as WD40, as they also remove the grease and require careful re-lubrication (see "Greasing your reel")
At Caperlan, the connection between anglers and their equipment is deeply rooted in the idea that every product is a story to be written, an adventure to be experienced, and not simply an object to be consumed. This is why Caperlan sets itself apart by offering products designed to be repairable, accompanied by spare parts, and in doing so offers a tangible promise to extend the life of its products and encourage a respectful approach to fishing and to nature.
1/ Unscrew the screw opposite the crank
2/ Remove the screw, then the crank
3/ Install the new crank
4/ Fasten the screw in the hexagonal axis of the opposite side
WXM 100
1/ Unscrew the brake button and remove it
2/ Remove the spool from the axis (without removing the washers placed below it)
3/ Position the new spool onto the axis, turn it in on itself until it clicks into place
4 / Re-screw the brake button (taking care to ensure that the brake button is correctly position to avoid damaging the screw thread)
WXM 100
1/ Unscrew the brake button and remove it.
2/ Take the new brake button and screw it back in (taking care to ensure that the brake button is correctly positioned to avoid damaging the screw thread).
What size reel do you want to repair?
LURE FISHING REEL - WXM 100 2500
LURE FISHING REEL - WXM 100 4000
Check out our selection of videos offering specialist advice on reels.
HOW TO MAINTAIN YOUR REEL | CAPERLAN SW
How to properly maintain your Phase 2 I CAPERLAN SW reel

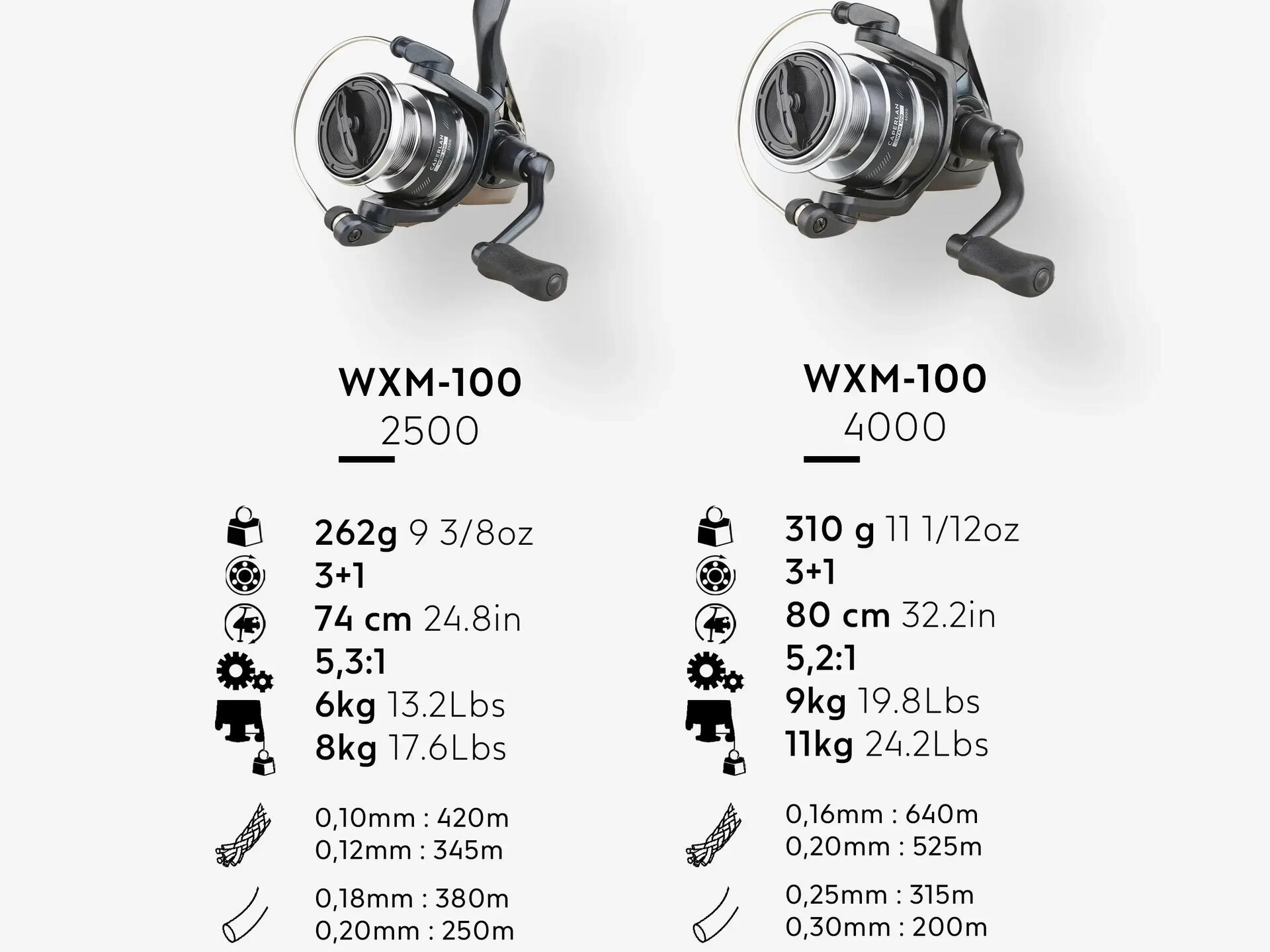

Find all the features of your WXM 2500/4000 reel
