Maintaining and repairing your HL900 USB V2 lm headlamp

REF: 8640234, 8619473

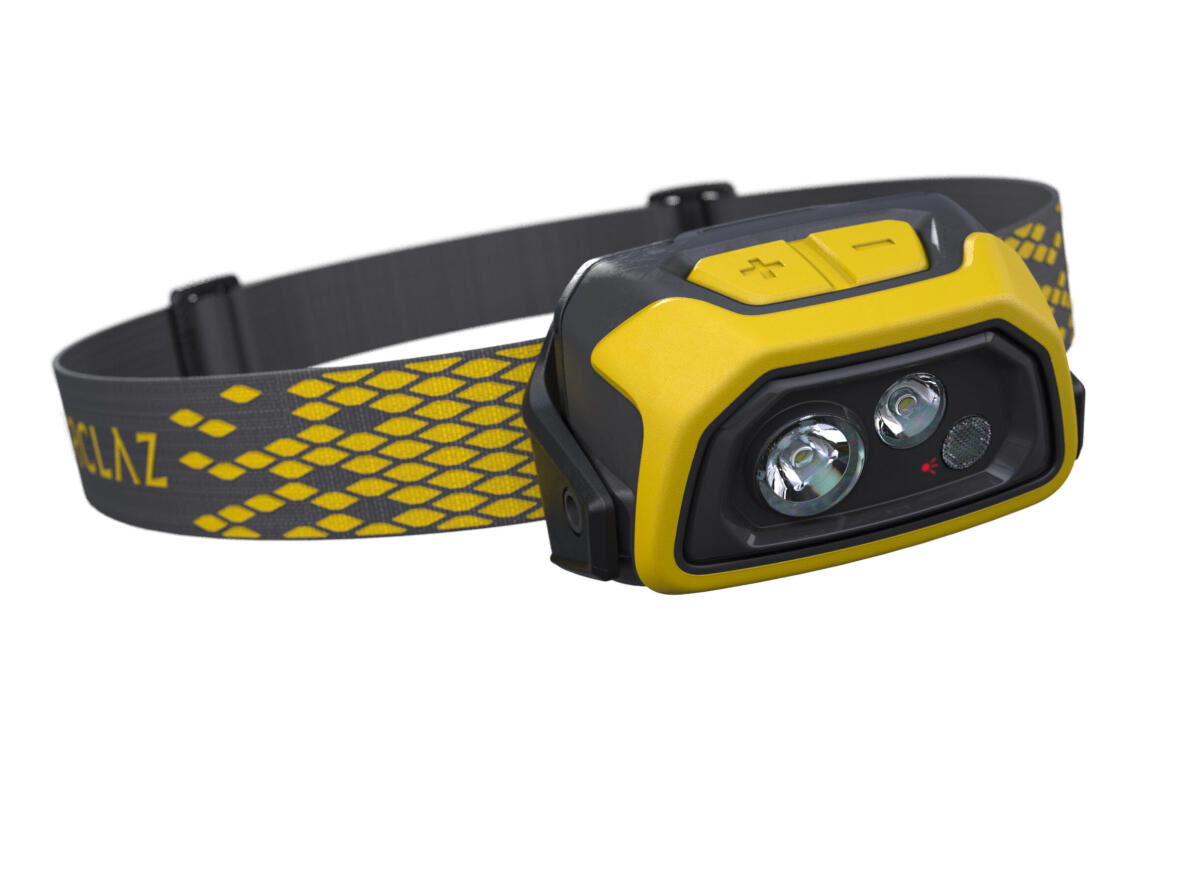

MAINTAINING AND REPAIRING YOUR HL900 USB V2 400LM HEADLAMP

The HL900 USB V2 headlamp is ultra-powerful, shock-resistant and waterproof.

Do you have a question about this product or are you having a problem with it? Don't panic, we are here to help you!

First use

Using my headlamp for the first time

Follow the step-by-step video demonstration below.
It will allow you to quickly understand how to adjust the headband, navigate between the different modes, lock and unlock the lamp as well as extract the battery to be able to recharge it. .

Using my headlamp for the first time

What is reserve mode

When the battery reaches a very low level, the lamp automatically lowers the power to allow you to move for another 1 hour at 25 lm.

What is the lock mode for?

To avoid it turning on in your bag by mistake, the lamp can be locked by pressing the two buttons for 3 seconds.A red flash confirms that the lamp is locked. Do the same to unlock it.

What is the lock mode for?
How do i know the charge level of my battery?

An indicator light present under the case lets you know the battery charge status in the first seconds of switching on the headlamp..

> Green = between 50% and 100%
> Yellow = between 30 and 50%
> Red = less than 30%

What is red mode?

This mode allows you to navigate or get around in a very short range with a less dazzling colour for those who are nearby. This light also makes it possible to lower nocturnal acuity (ability of the eye to see in the dark).
The red mode is therefore popular in refuges, in tents or in groups, but also for star lovers.

Why does the maximum mode only work for 10 seconds?

The maximum mode allows you to find your way off-trail, it is a lighting boost to 400 lm for 10 seconds before returning to 200 lm.

The performances of your hl900 usb v2 headlamp

What are lumens (lm)?

Unlike watts, which express the energy consumption of an electrical device, lumens correspond to the quantity of light actually emitted by the lamp.
This measurement is carried out by placing the lamp in an enclosure fitted with sensors and measuring the light emitted in all directions around the lamp.
PLEASE NOTE!At equal power, all the lamps will not have the same lighting range because it will depend on how concentrated the beam at the exit of the lamp is (with a lens or a diffuser).
The narrower the beam, the farther the lamp will illuminate.
The wider the beam, the better the lamp will illuminate the sides evenly, but to the detriment of the range.

What are lux?

If the lumens correspond to the light emitted by the lamp in all directions, the lux corresponds to the light received locally at a point illuminated by the lamp. This illuminance unit therefore makes it possible to measure the lighting distance of each lamp.

How is the maximum power of a lamp measured?

The maximum power of a lamp is measured in the first 2 minutes of lighting up, new batteries (or fully recharged).
On some models offering temporary modes (Boost modes), it corresponds to the power of this mode.

How is the range of a light calculated?

According to the ANSI-FL1 standard, all the lighting ranges of Decathlon products correspond to the distance at which the lamp can illuminate at 0.25 Lux.
This value corresponds to the illumination received by the moon under ideal conditions (clear weather, full moon).

How is the autonomy of the lamp calculated?

For each lighting mode, the autonomy corresponds to the time during which the lamp is capable of supplying 10% of the maximum power of this mode.

Power and charging

What type of usb port does this model have?

The power socket of our HL900 USB V2 headlamps (ref. 8640234, 8619473) is a standard Micro-USB. You can therefore use your own cable to recharge them if it is of the Micro-USB type.

What type of charger can i use to charge my headlamp?

HL900 USB V2 headlamps are USB rechargeable. You can therefore connect them to any charger (car, sector, solar panel, computer) as long as this charger is USB compatible.

What is the supplied battery adapter for?

When the USB battery is empty and if you don't have access to a USB charger, it is still possible to use this adapter by placing 3 AAA size batteries (alkaline or rechargeable) in it.
Please note, in this case the battery indicator is no longer active and does not allow you to follow the discharge status of the lamp.

Maintaining my headlamp

How do i store away my headlamp correctly?

It is important to store the lamp in a place protected from direct sunlight and humidity. During long-term storage, remember to remove and fully recharge the battery (every 6 months).

How do i clean my headlamp?

The headband is removable and washable.You can wash it with soap and water.
You can also clean it using a humid cloth.

Can you replace a led?

Unlike conventional light bulbs that could be easily unplugged, LED technology does not allow them to be replaced because they are soldered to the electronic board.The LEDs we use, on the other hand, have a very long lifespan which ensures you use them for several years without any worries.

What happens to the lighting products returned to the store?

Headlamps are subject to the provisions for the recycling of electrical and electronic products (e-waste). At the end of its life, you can bring your headlamp back and deposit it in the recycling bins at the entrance to our DECATHLON stores.

What is the difference between hiking and trail lamps?

What is the specificity of the hiking / trek lamp?

Hiking and trekking lamps are designed to be compact and provide light during low-speed walking.
To achieve this, the HL900 is designed as a single forehead-worn module with a wide illumination beam in the early power modes then progressively narrower on higher power modes.
The first mode of our lamps is always a red light, then the other modes gradually increase the power until the strongest mode.
The double button system + and - allows to navigate between the modes without having to turn off the lamp.

What is the specificity of a trail lamp?

Trail running lamps must be able to guarantee powerful lighting during rapid movements on all types of terrain.
They must also offer perfect stability on the head, hence the offset of the battery at the back of the skull.
Red mode is rarely present on this type of model.

I complete my headlamp.

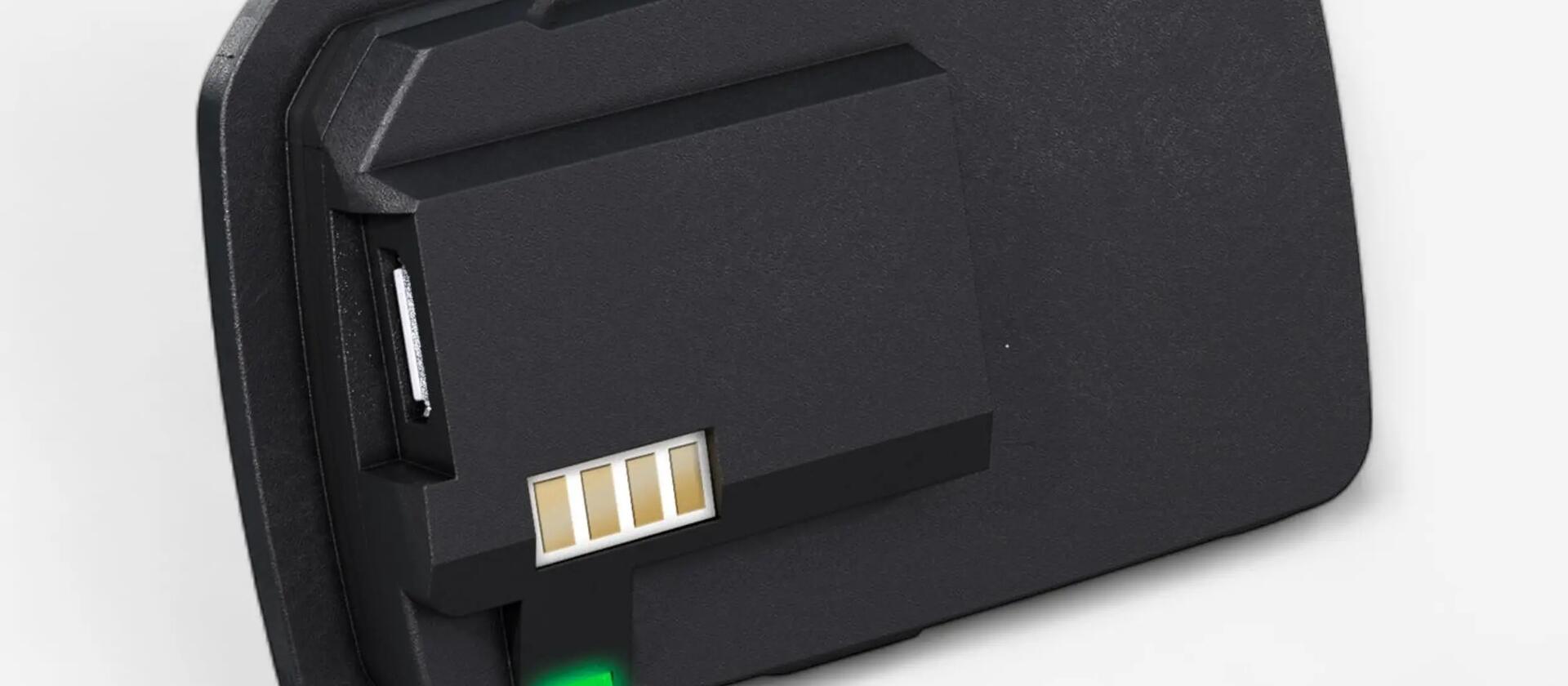

To replace the battery of your lamp at the end of its life or to have a backup battery always available, it is possible to obtain a second battery on the Decathlon website.
