REF: 8585304
2022

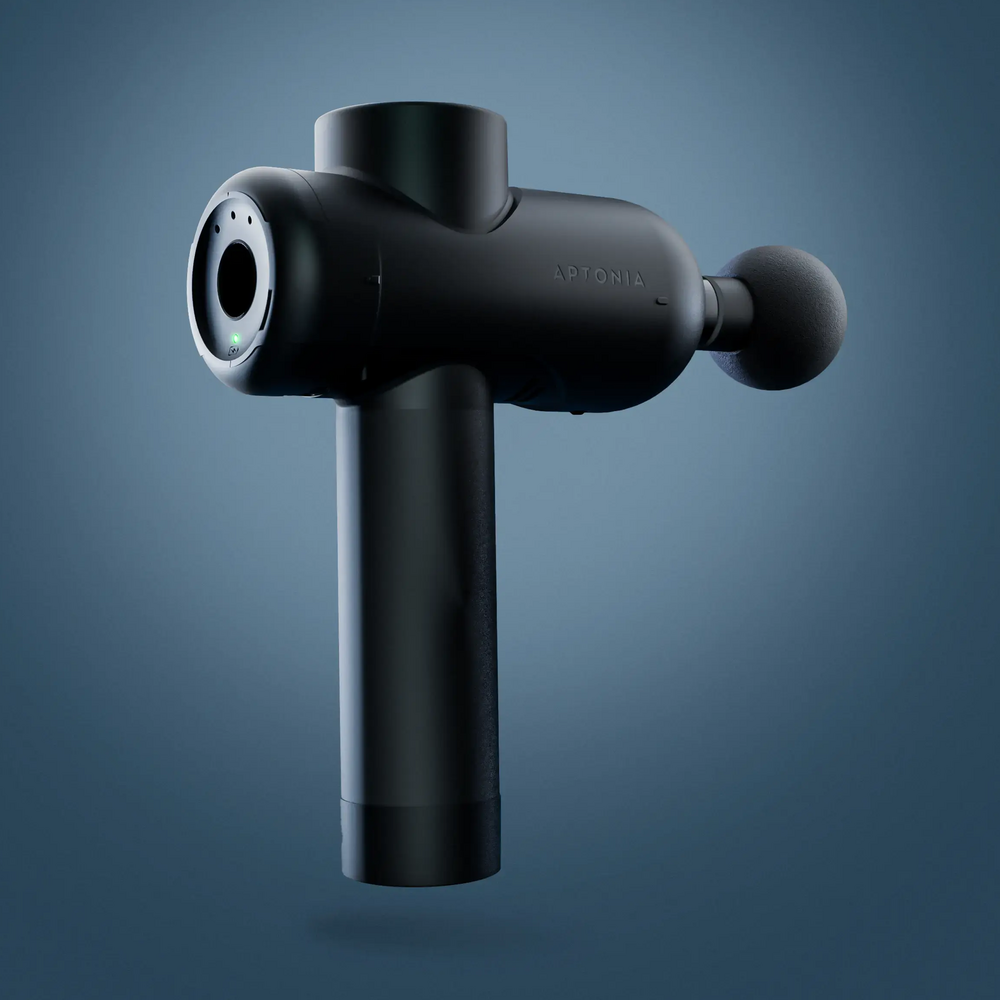

Our team of engineers and designers designed this muscle massage gun to make self-massage of the entire body straightforward.
A complete self-massage session after your workout? Easy! And customisable with 3 percussion intensities and 4 interchangeable tips which can be adapted to your needs.
Charge the massage gun before using it for the first time. Then, to turn it on, unplug it and hold the POWER button for two seconds.
Take the product in the palm of your hand at the comfort grip on the handle
Tailor the massage to your needs. Depending on the massage zone and the desired effect, choose the right tip and massage speed.
Position the massage head of the gun over the zone you wish to massage and move it slowly into the zone.
Adjust the pressure to the required massage depth.
Avoid pressing the device too firmly onto your muscles so as not to hurt yourself or cause injury.
Use above your clothes, by pressing down and moving around the body, spending around 1 minute per massage zone.
Move the gun up and down the massage zone. Or place it in a more localised area that needs relief.
Do a short press on the power button to change the speed.
There are three speeds (gentle at 30 Hz, medium at 40 Hz and high at 50 Hz). Press the button to select the most suitable speed for your needs.
30 Hz corresponds to 30 pulses per second.

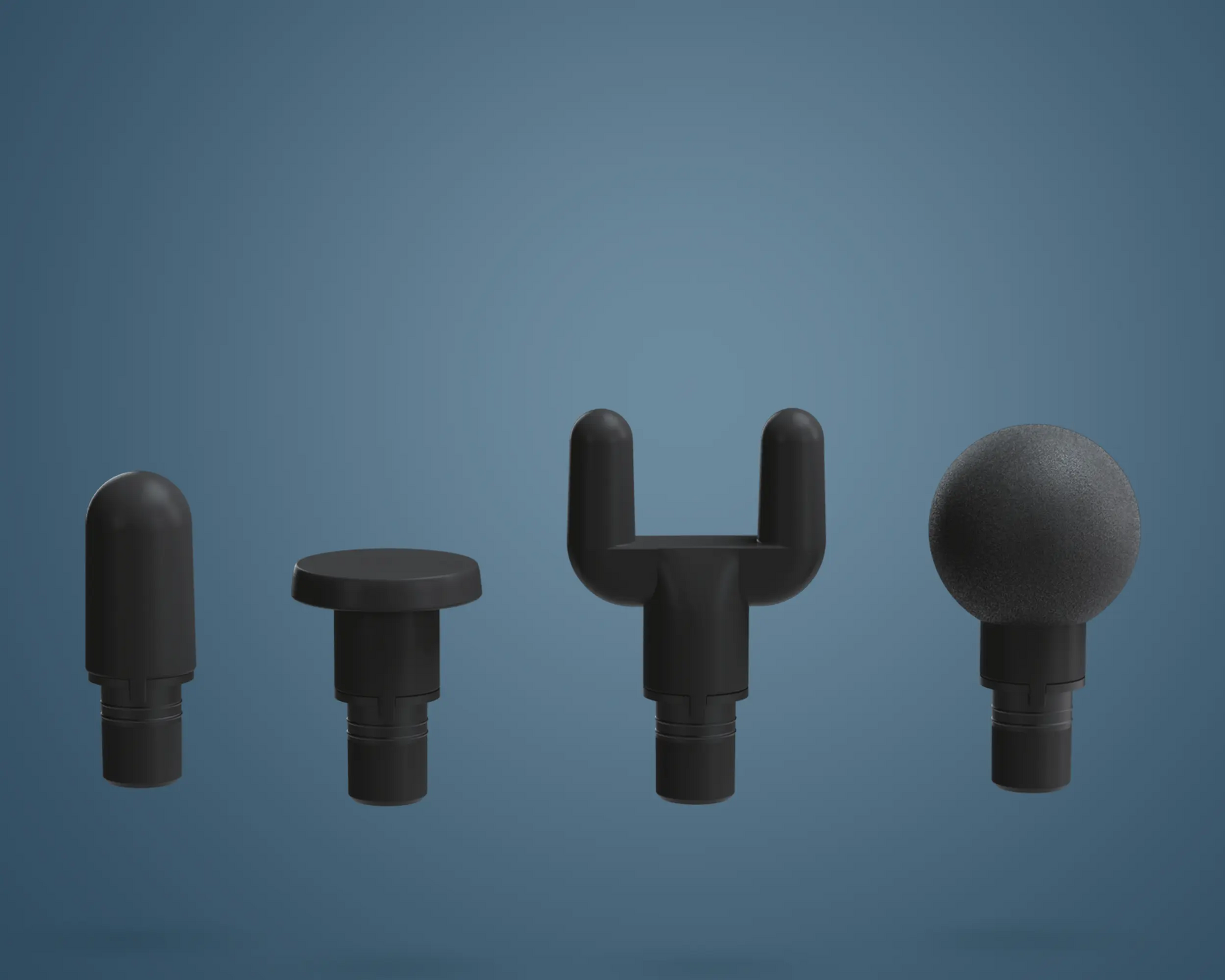

The various tips, such as the Ball and Flat tips, will allow you to massage every part of your body. We recommend starting the massage with the Ball. The fork is ideal for the neck and the muscles around the spinal column. The Finger is perfect for localised, more precise areas. Always do a gentle massage to avoid hurting certain zones of the body.
Grasp the tip and pull it.
To replace it, place the 2 ribs of the massage tip in the grooves of the mount and then push it in until it locks.
Ensure you do not use the massage gun for longer than 1 minute on each massage zone.
Please do not massage the following areas:
- joints
- bones
- eyes and private parts

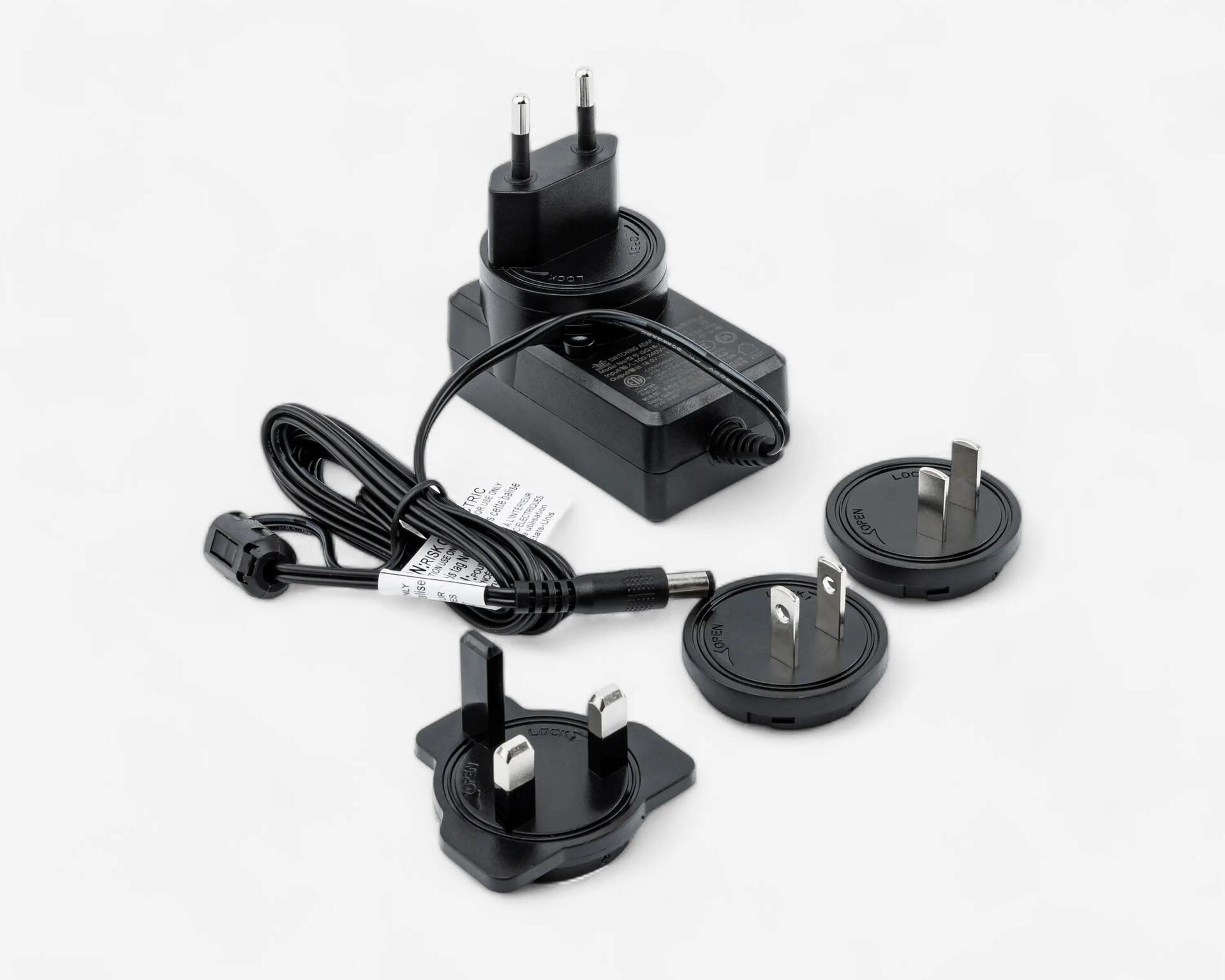

The product comes with a universal adaptor, with a modifiable plug tip to adapt to the electrical socket depending on the network of the country where the charger is plugged in.
To change the type of plug, press the PUSH button and then turn the tip anticlockwise. Position the new tip and turn it clockwise until it clicks.
The product comes with an AC adaptor can be used with any international socket. The adaptor cable has a specific jack.
Insert the cable jack into the sole socket on the gun (at the back, below the power button)
It takes 3 hours to charge the product fully.
You can find the massage gun troubleshooting sheet here.
Follow the steps on this sheet to check whether there are any problems with your product. If necessary, read the "REPAIRS" section for tutorials on how to fix certain issues. You can also visit the workshops in your local DECATHLON store.
Link to download the watch troubleshooting sheet (coming soon).
- Your massage gun
- Part(s) to change
- Torx T10 and T8 six-branch star screwdrivers
- Screwing tools
- Stanley knife
Our tip: read the whole tutorial before you start the handling operations.
- The massage gun must be unplugged and switched off during all handling operations.
- Do not use an electric screwdriver. This risks damaging the screw thread.
- Take particular care when unplugging the connectors (step 4). Read this step carefully before starting the handling operations.
Unscrew screw A
Pull firmly to remove the cover
Our tip: place one hand on the cover and the other on the unit. The cover is fitted into the housing and may put up some resistance when you pull it. No need to panic! Just pull a little harder.
Safety rules:
- do not put your fingers on the green electronic card.
- do not plug the massage gun in when open.
- do not pull on the connectors before reading the following instructions. Ensure you do not pull too hard when removing the button unit.
Unscrew screw B
Remove the button unit
Pull the button unit to unclip it, without unplugging the connectors. If you wish to replace the button unit, follow steps 4 and 6; step 5 is not necessary.
Remove the yellow glue
With your Stanley knife, make a cut in the yellow glue (as shown on the image). The objective is to remove the glue on the join to be able to unclip the connectors.
Pull gently on the white connectors (connected to the wires)
Be careful. The female connectors, attached to the electronic card (shown with the yellow glue on the above diagram) must not be detached. If this happens, read our instructions (below) carefully before clipping them back.
The connectors fixed on the electronic card must not be detached. If this happens, please clip them back the right way, as shown in the video below.
DECATHLON MASSAGE GUN
Unscrew screw C
Start with the 2 screws on the side of the button unit, followed by those on the side of the tip.
Remove the top part of the massage gun
The top part contains the massage gun motor.
Change the part and reassemble your massage gun.
Screw the top part of the massage gun back on if you have the battery or the motor
Plug the connectors back in
Screw the button unit back
Reattach and screw in the cover
Here are the spare parts:
Massage tip
AC adaptor
Using the "Troubleshooting" sheet, you can conduct a preliminary verification of your product.
Once your product has been checked by our teams, you can sell it second hand and thus keep your old products in circulation.
For more information about the DECATHLON Second Hand service, click on the button below.
Do you need the product instructions? Click on download.
