MOTHER'S DAY LIMITED EDITION ELOPS 520

REF: 8582284

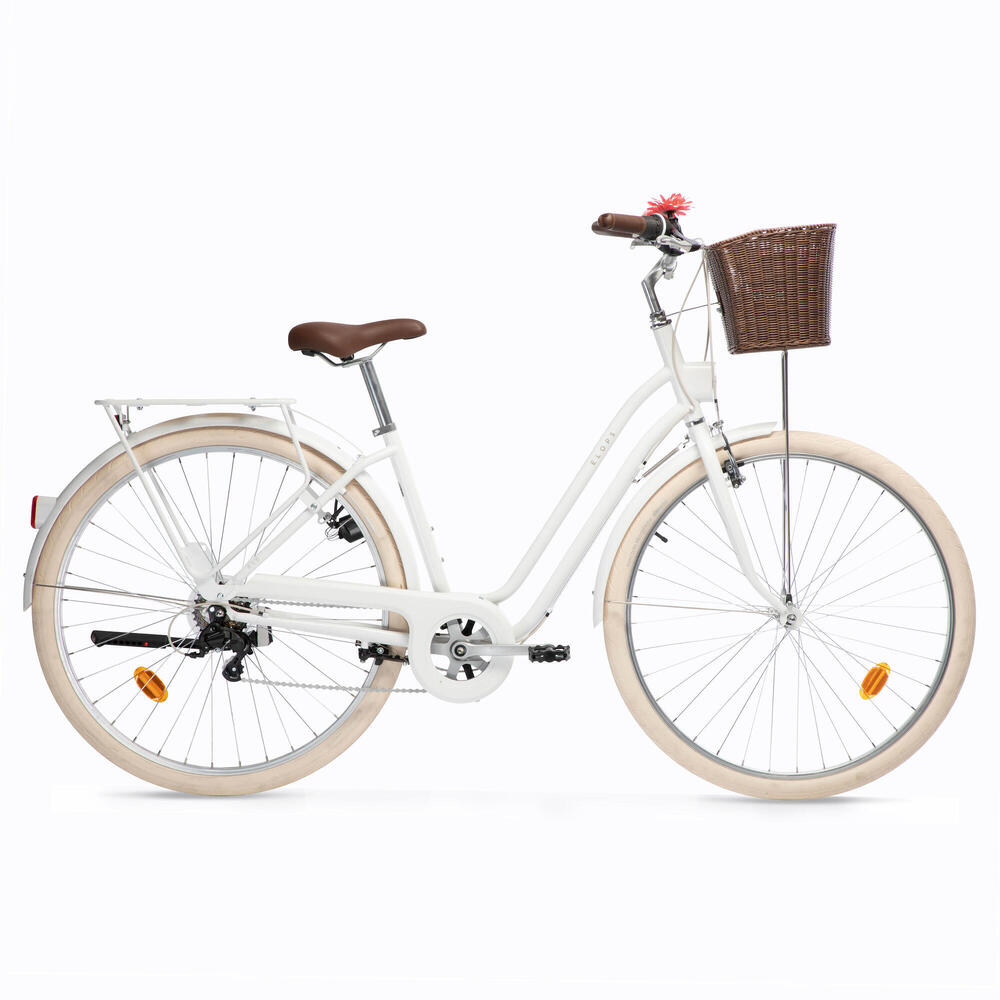

"MOTHER'S DAY" LIMITED EDITION ELOPS 520 LOW FRAME BIKE

2021

Item # 8582284

This fully equipped city bike (basket, pannier rack, mudguard, built-in lights, etc.) is designed for short journeys around town.

A comfortable, "stylish", fully equipped Dutch bike! With its wooden pannier rack, wicker basket and dynamo, it'll make your journeys a whole lot easier.

Unselected

First use

How to adjust your saddle and handlebar height before your first ride

Before setting off on your first ride on your new bike, it's imperative that it is properly adjusted (if it was not already adjusted in the store), and the tyres are fully inflated (see next point). You'll need a 6 mm Allen key to do this.

Follow the pictures below:

The right tyre pressure for your bike

The recommended tyre pressure is between 3.5 bars (comfort) and 4.5 bars (performance).



If you have a foot pump with a pressure gauge, you can check the pressure easily. If you don't have one, check the pressure by squeezing the tyre. It should be firm while still yielding a bit when pressed. The harder the tyre, the faster the wheels turn, but the more you'll feel the bumps in the road. If the tyre is too soft, however, there's a risk of it puncturing and of the wheels getting damaged.



Please note: Inflating your tyres to at least 3.5 bars ensures better puncture resistance and a good balance between comfort and performance.



We recommend pumping up your tyres every month.

ELOPS 520 LOW STEP FRAME BLUE
How to use the dynamo correctly

To use the dynamo without damaging your tyre, follow the recommendations shown in the video below:

How to mount a pannier basket onto your bike

A front carry system has been created for your bike: the basket!

The following video explains how to mount this accessory (included with your bike) onto your bike.

how to mount bike pannier basket decathlon elops btwin bike install pannier

Which child seat is compatible with your bike

The Groovy baby seat from Polisport can be easily and safely fastened to the pannier rack of your standard city bike.

It is designed for children aged 12 months to 4-5 years weighing less than 22 kg.

This baby carrier is ISO11243 compliant, and includes a 3-point safety belt and adjustable footrest.

Unselected

Caring for your town bike

Once a month: inflate your tyres

If you ride your city bike daily, remember to check the condition of your tyres every week and re-inflate them every month.

The recommended tyre pressure is between 3.5 bars (comfort) and 4.5 bars (performance).

If you have a foot pump with a pressure gauge, you can check the pressure accurately. If you don't have one, check the pressure by squeezing the tyre. It should be firm while still yielding a bit when pressed. The harder the tyre, the faster the wheels turn, but the more you'll feel the bumps in the road. If the tyre is too soft, however, there's a risk of it puncturing and of the wheels being damaged.

WARNING: Inflating your tyres to at least 3.5 bars ensures better puncture-resistance and a good balance between comfort and performance.

Once a month: grease your chain and bike lock

If you store your town bike outside at night, the chain and bike lock will rust more quickly. This is why it's important to clean and grease them regularly.



How to lubricate your chain Use the pedals to turn the chain and give it a "squirt" all the way along as you work through the gears.

How to lubricate your lock Hold it straight and "spray" into the lock. Then insert the key and turn it a few times. Wipe off any excess grease with a paper towel.



An "all-in-one" product is perfect for this!

Every 2 months: wash your town bike

Riding in town — except when it rains — won't get your bike as dirty as mountain biking through the woods, so you won't need to clean it as frequently.

Every two months, give your bike a big cleaning. Using bike shampoo and a bucket of hot water, wipe down the frame, handlebar, mudguard, etc. It's best to avoid hosing it down as this could damage some of the components. When done, dry your town bike with a dry cloth to prevent any rust. Use the opportunity to check that all the screws and bolts are nice and tight. Sometimes, when riding on uneven or cobbled streets, your Elops will experience small jolts, and this can cause the bolts to loosen little by little.

As for greasing your chain, do this at the end after you've finished washing your bike.

Every 3 months: check the brakes

Brake pads don't last forever. Your brakes will wear down at different speeds depending on how you ride, where you ride, and how much you weigh. This is why it's important to check them regularly and change them if necessary.

Also, are your brakes tight? If you have any questions, we highly recommend visiting a Decathlon workshop, where a bike technician can adjust your town bike's brakes to ensure they are in tip-top shape.

Unselected

Have a problem?

One of your tyres is flat

Inside the tyre there is an inner tube which holds the air. When your tyre is flat, it's generally because the inner tube has a puncture. It's fairly easy to repair; check out our video tutorial.

If needed, visit your local Decathlon workshop for assistance.

Flat tyre: How to change the wheel and inner tube on your bike.

The lights don't work

If your lights aren't working, there may be several different reasons:

1- Check that the dynamo is correctly positioned against the tyre.

2- Check that the dynamo is properly connected.

3- Check the electrical connections (bearing in mind that if one light doesn't work, both will be short circuited)



Check the images below to learn how to perform these checks.

If that doesn't work, don't hesitate to ask the technicians at your local Decathlon Workshop for advice, or contact us below for help.

verification_eclairage_dynamo_velo_ville

Your braking is not powerful enough

Braking quality is impacted by a number of factors.

Poor-quality braking may manifest itself as a noise when braking, or the brake levers feeling slack or soft when pressed.

To remedy this problem, follow the steps below:

1- Check the orientation of the brake pads. They should follow the shape of the rim without touching the tyre and should ideally be 1 mm away from the wheel with an additional 0.5 mm offset at the back of the pad (this is to ensure that the pads are not exactly parallel to the wheel, which would generate noise).

2- Adjust your brakes

3- Replace the brake pads if they are worn down. How often you need to replace your brake pads will depend on how often you ride. The brake pads have ridges that ensure water runs off. If the ridges are no longer there, or have visibly worn down, it's time to change your brake pads!! To do this, go to the "repairing/maintaining your bike" section and follow the "how to change your brake pads" tutorial.

Your gears are not shifting properly

If your gears aren't shifting properly, this may be due to several factors:

1- Have you taken your bike in for its first free check-up? When you purchase a bike at Decathlon, you get a free check-up during the first 6 months after your purchase. One of the checks included is whether the gears shift properly. Don't forget to use it!

2- Your drivetrain cable and/or cable housing is worn or old. You'll need to replace the cable and/or the cable housing if it's damaged.

3- The derailleur itself needs adjusting. Use the upper (L) and lower (H) stop screws to adjust the shifting, especially if your chain tends to skip the cogs in the back.

If these adjustments don't resolve the issue, please visit your local Decathlon Workshop for a more in-depth diagnostics.

The wheel makes noise

If the front wheel is making a noise, it could be that:

1- The brake pads are touching the wheel rim. See the section "Your braking is not powerful enough" for how to properly adjust your brake pads.

2- The mudguard is touching the tyre.



If the noise is coming from the back wheel, it could be that:

1- The brake pads are touching the wheel rim. See the section "Your braking is not powerful enough" for how to properly adjust your brake pads.

NOTE: Before making the adjustment, make sure that the wheel is properly aligned. To do this, use a #15 spanner to loosen the bolt holding the back wheel and re-centre the wheel within the frame.

2- The mudguard is touching the tyre (see video above)



If the noise persists, please visit a Decathlon store near you for an in-depth diagnosis.

Unselected

Spare parts

You can find spare parts for your ELOPS 520 LOW FRAME at our Decathlon workshops and on our website.

Unselected

Instructions

Bike user guide - PDF version

Unselected
ELOPS 520 LOW STEP FRAME BLUE

Haven't been able to fix your problem or find what you need?

Please contact one of our technicians who will be happy to help
