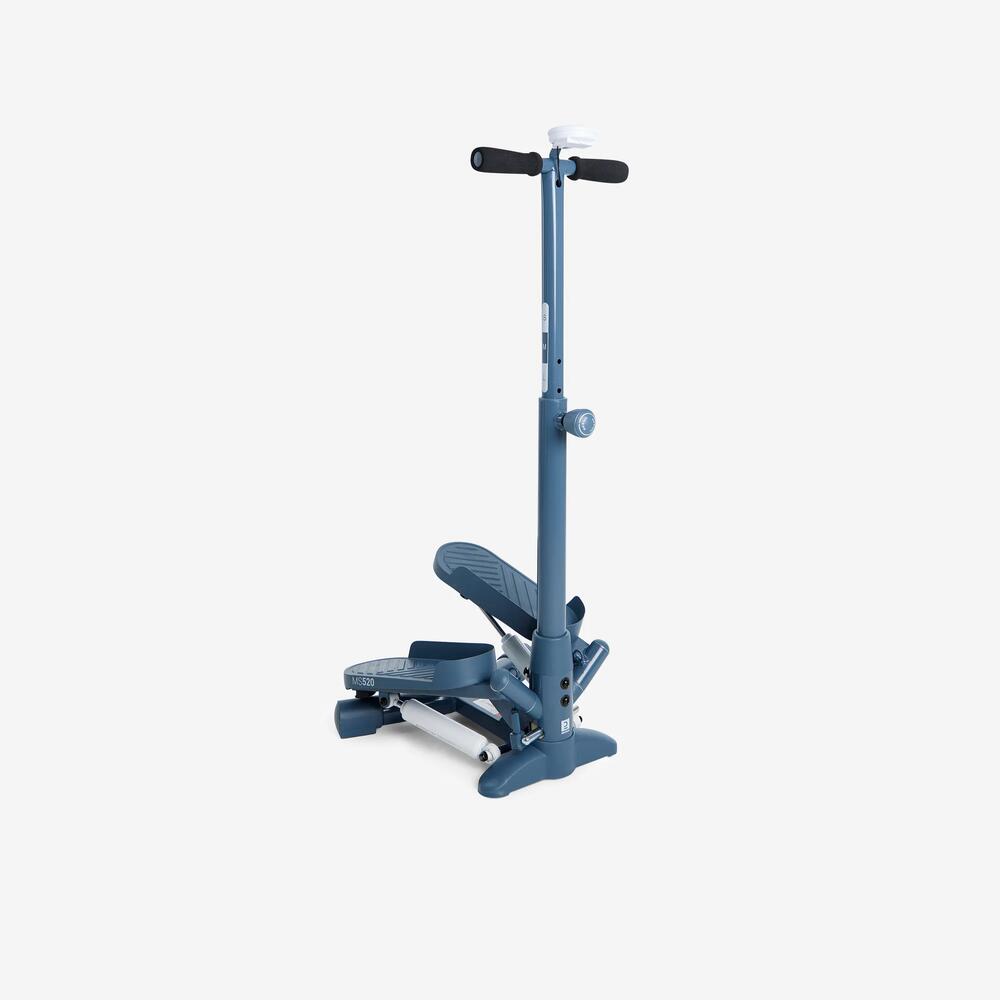

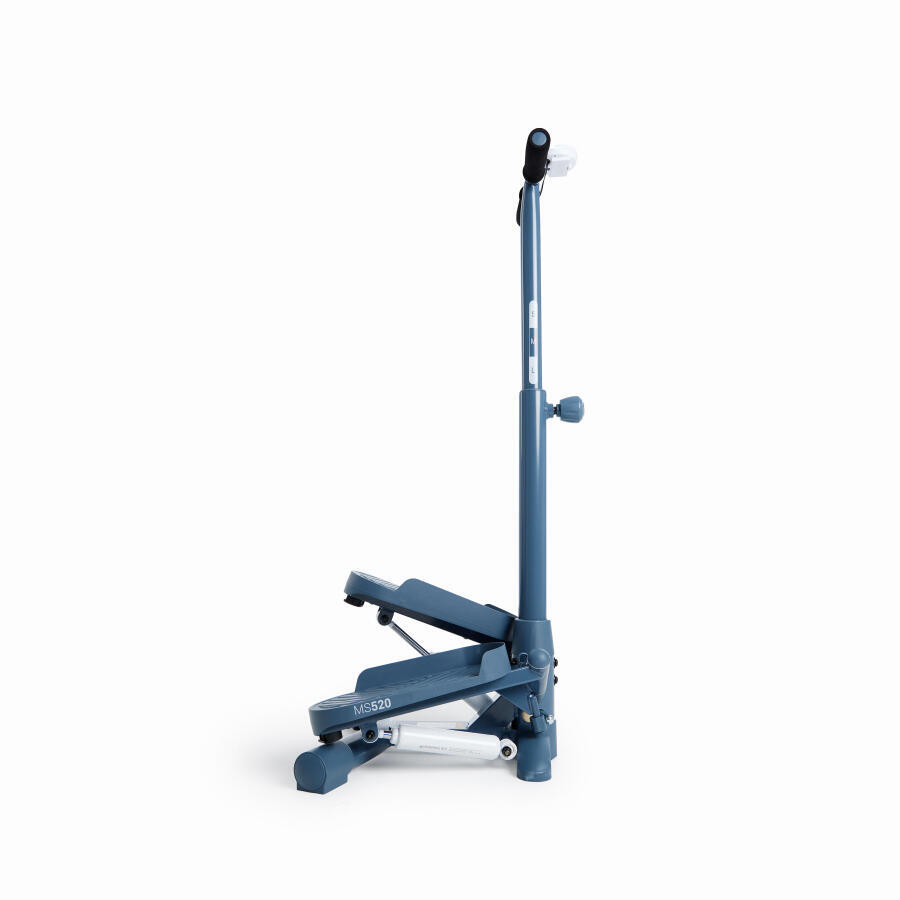

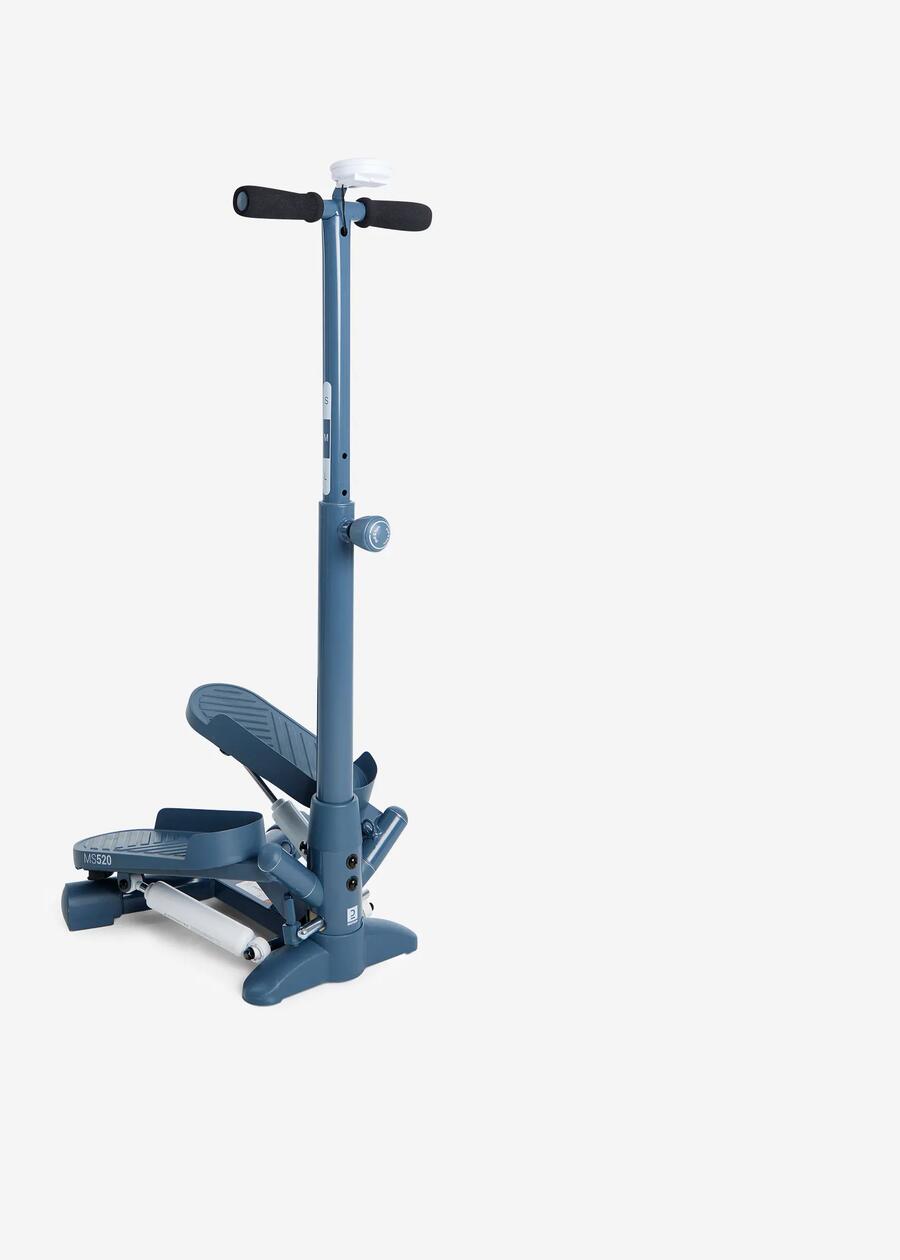

Assembling your MS 520 mini stepper
We guide you through the assembly process step by step with our video and our user guide extracts!
REF: 8804047
2023
The MS520 stepper has been developed by our designers to help you boost your cardio and strengthen your lower-body muscles.
Below, you'll find all of our tips:
Assembly video.
FAQs.
Spare parts.
Online support.
User guide & diagram.
And everything else you could possibly need!
Repairable
Find all our parts for this product.
Ease of use
Simple console that's easy to use.
Electronic coaching
Counter with four functions: reps, duration, frequency and calories.
We guide you through the assembly process step by step with our video and our user guide extracts!
Restrictions
Max user weight: 100 kg.
Do not use outdoors.
Not suitable for children.
For home use only.
Storage advice / Weather conditions
Do not store outside.
Do not store in a damp place.
Store the product in a horizontal position.
Please note: the pistons may leak fluid if the stepper is stored vertically.
CARE TIP
Clean with clean water and mild soap.
Do not use abrasive products or a pressure sprayer.
After cleaning, dry with a cloth.
Your MS 520 mini stepper (2023) is repairable.
You'll find our spare parts below.
Our spare parts and services are available for 10 years.
(from the date on which the product was bought new from a store or from our website, as shown on the receipt).

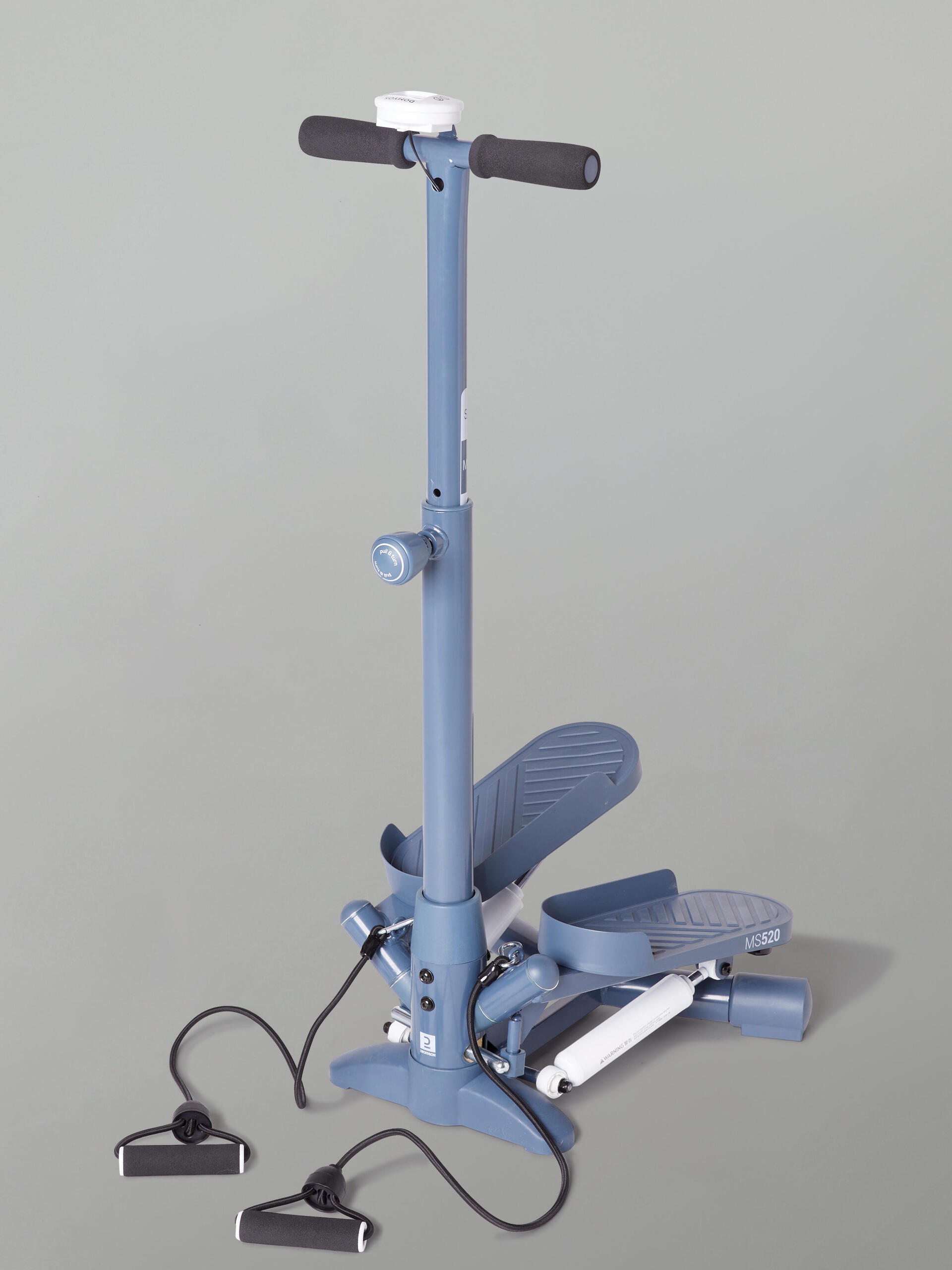

The MS 520 measures 47 x 42 x 95-105 cm and weighs 9.7 kg.
We recommend having at least 60 cm by 60 cm of space.

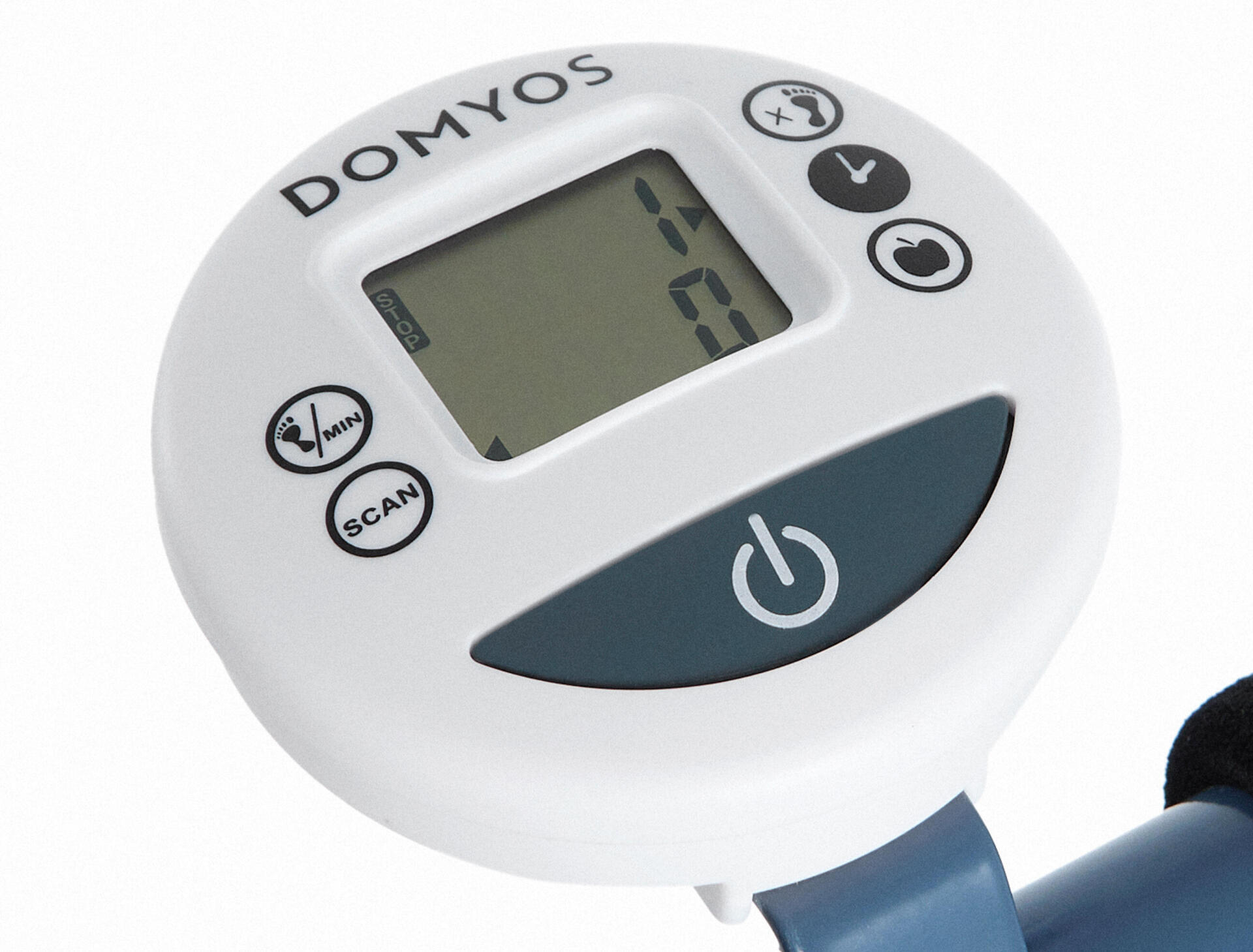

Your MS 520 mini stepper is equipped with a 4-function display:
Number of reps.
Length of workout.
Frequency.
Calories burned.
You can track your workout and see how you're getting on by looking at the number of reps you've done, how long it's been since you started your workout, how often you're training and how many calories you've burned since the start of your session.
You can analyse this data to track your progress from one session to another!
Domyos offers a 2-year warranty on your product's parts and labour under normal conditions of use from the date of purchase as shown on the receipt.
DOMYOS' obligation under this warranty is limited to the replacement or repair of the product, at DOMYOS' discretion.
This warranty does not apply in the event of:
* Damage caused during transport.
* Incorrect assembly.
* Repairs performed by technicians not certified by DOMYOS.
* Lack of maintenance.
* Improper or abnormal use.
* Use outside the private sphere.
This commercial warranty does not affect the legal guarantee applicable in the country of purchase.
More details in the user guide.
There are several steps needed to assemble the MS 520 mini stepper (2023).
It takes about 30 minutes to assemble.
We provide the tools you need.
Use our assembly video or user guide to help you.
Please check the box carefully.
If the part is missing, make sure you have proof of purchase and your product's serial number, then submit a support request by clicking on "REQUEST ASSISTANCE".*
Alternatively, please contact your local store.
*This service is only available in certain countries and for certain products.
Your MS 520 mini stepper can be used to boost your cardio fitness and strengthen your lower-body muscles.
The lateral "twisting" motion with the MS520's resistance bands tones your entire body.
Keep your back straight, using the adjustable handlebar to help you.
The stepper uses both your muscular and your cardiovascular systems.
The more you train, the better your breathing and coordination will be.
Start your workout with a gentle 3- to 5-minute warm-up.
Then train on the stepper for around 20 to 30 minutes to give all of your muscles a great workout.
At the end of your workout, do a cool-down followed by a few stretches to make your muscles more flexible and prevent injury.
Slim your figure at home by pairing strength work with cardio.
The MS520 stepper uses your abs and lower-body muscles (glutes, thighs, calves, etc.) for a thorough, all-round workout.
The lateral twisting motion works your deep core muscles.
And holding the resistance bands will strengthen your upper-body muscles as well.
You can use the handlebar to keep your posture perfectly straight.
NO.
This mini stepper has been designed to be set up, used and stored indoors only.
If you want to work your waist and core even harder, then try twisting your hips at the top of each step. This requires extra effort but will give you a more all-round workout.
To turn on the console, start your workout or push the button.
Push the button again to display the information of your choice.
If the display doesn't turn on:
Check the battery and replace it if necessary.
Use a 1.5V LR03 or AAA battery.
Make sure the battery is the right way around (+/-).
To reset the console to 0, hold the middle button for 3 seconds.
The console automatically turns off after 3 minutes of inactivity.
You should also check the cable's connection inside the post.
Check the positioning of your console.
You can take it out and put it back in again.
Check the battery on your console.
Make sure you are performing every step motion in full
The MS520 stepper is equipped with non-slip feet and pedals with grippy surfaces to ensure maximum stability when in use.

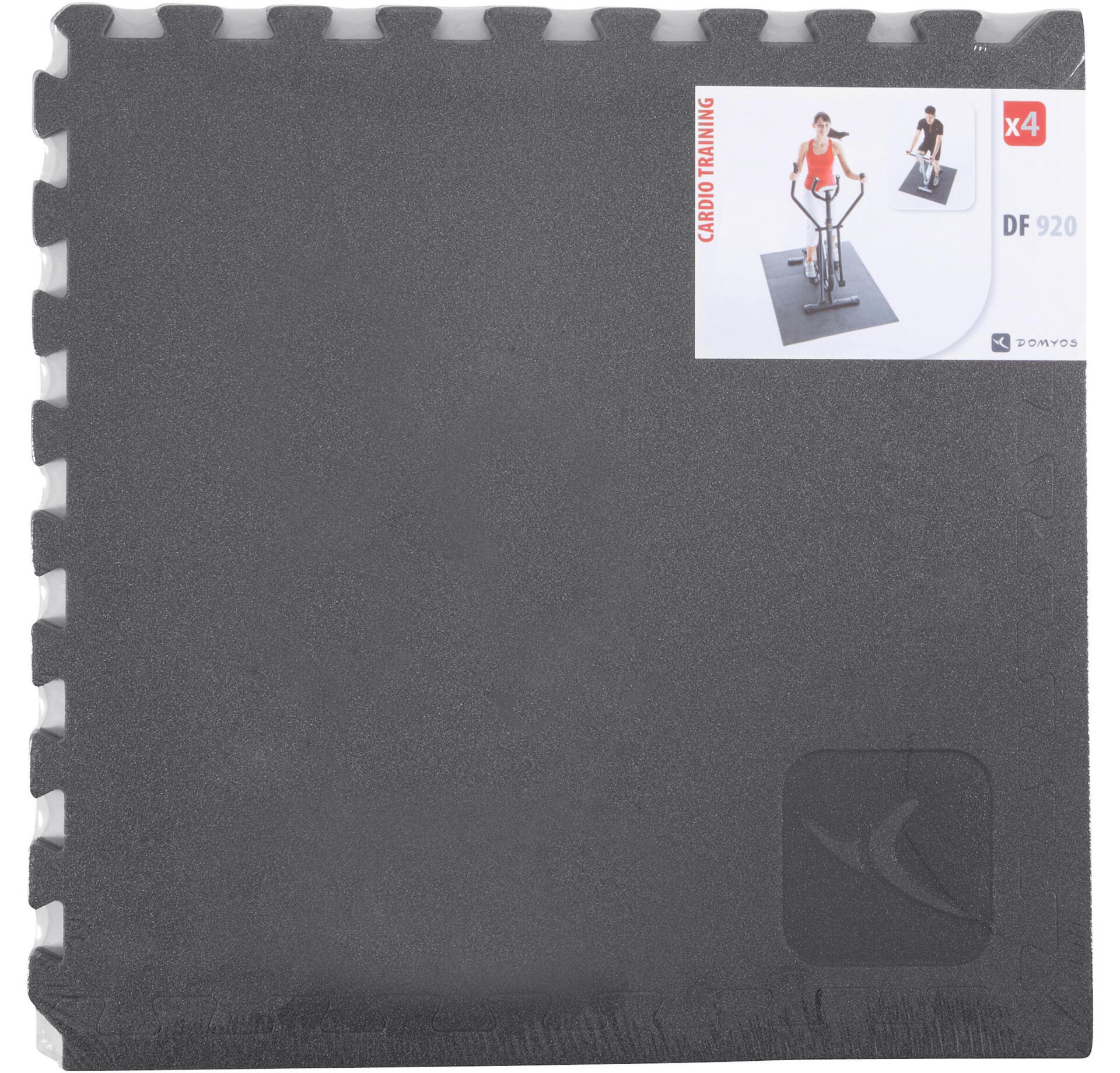

If you have an uneven surface, and for optimal use, consider using fitness mats.
IMPORTANT: Do not store your stepper vertically.
This could cause the pistons to leak.
Note that the axles and ball joints are greased during assembly.
Step up before the pedals reach the base for greater efficiency and to protect your joints.
If you can hear a creaking or grinding noise, check that the nut and bolt are done up tightly.
Note that the pedal resistance depends on the speed.
During intensive use, the oil on the pistons becomes more liquid, and the resistance on your stepper changes.
Stop using it, and it will recover its original consistency.
Check that your mini stepper is properly assembled and that the screws are tight.
Any noise it makes will sound louder in a small room.
Check that the floor is flat.
If the floor is uneven, move the stepper or put some floor mats down underneath it.
Your MS 520 mini stepper (2023) is repairable.
It has a 2-year warranty against defects*.
If you wish to make a warranty claim, please ensure you have proof of purchase and your serial number, then create a support request by clicking on "REQUEST ASSISTANCE" below.
Our after-sales team will be in touch to help you via phone, email or video call.**
Alternatively, please contact your local store.
- Either to have the issue diagnosed (free) and repaired (free if covered by the warranty, or paid-for if not).
- Or for a product exchange (if covered by warranty and the product can't be repaired).
- Or for a credit note or a refund (if covered by warranty and the product can't be repaired).
If a part is broken and isn't covered by the warranty, you can find our spare parts below.
*More details available at the bottom of the page and in our user guide.
**This service is only available in certain countries and for certain products.
Our team has redesigned this mini stepper to improve it.
The pads under the steps are compatible with the previous MS 100/120/500 models.
The pistons are compatible with the previous MS 120 model.
Please note that the fastening system has changed.
We have switched from a clip to a nut and bolt.
It's essential that you don't damage your clip and that you keep hold of it if you want to repair the "old model.
The clip isn't available as a spare part
The pull-and-turn screw is compatible with the previous MS 120 model, as are the handlebar grips and resistance band handles.
The display on the new MS 500 mini stepper (2023) can't be fitted to the previous MS 120 model
NO.
Our MS 520 mini stepper is designed for private use only.
It is not designed to be used at community centres or in any other professional or public setting.
Easily find spare parts to repair your product:
Repair your MS 520 mini stepper (2023) yourself.

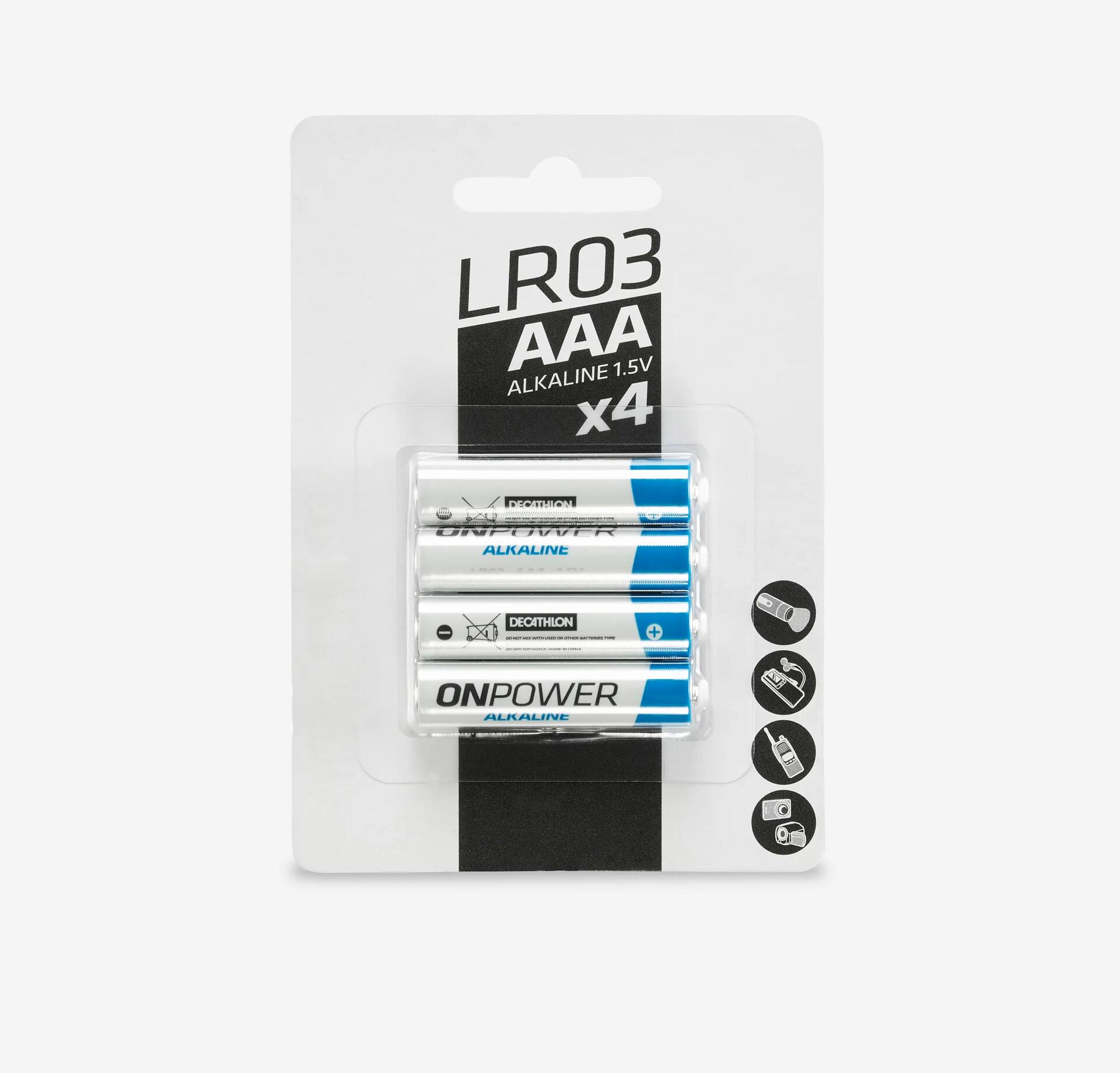

CHANGING THE BATTERY
Open the cover underneath the console.
You don't need to take the console off.
Remove the used battery.
Insert your new LR03 AAA battery.
Close the cover.
Discard used batteries at a collection point.
REPLACING THE CONSOLE
Lower the handlebar as far as it will go.
Remove the 4 screws at the bottom of the post.
Unclip the cable.
Remove the console.
Clip on the new console and follow the assembly steps shown in the user guide, starting at step 2.
Discard your used batteries at a collection point and your console at a recycling centre.

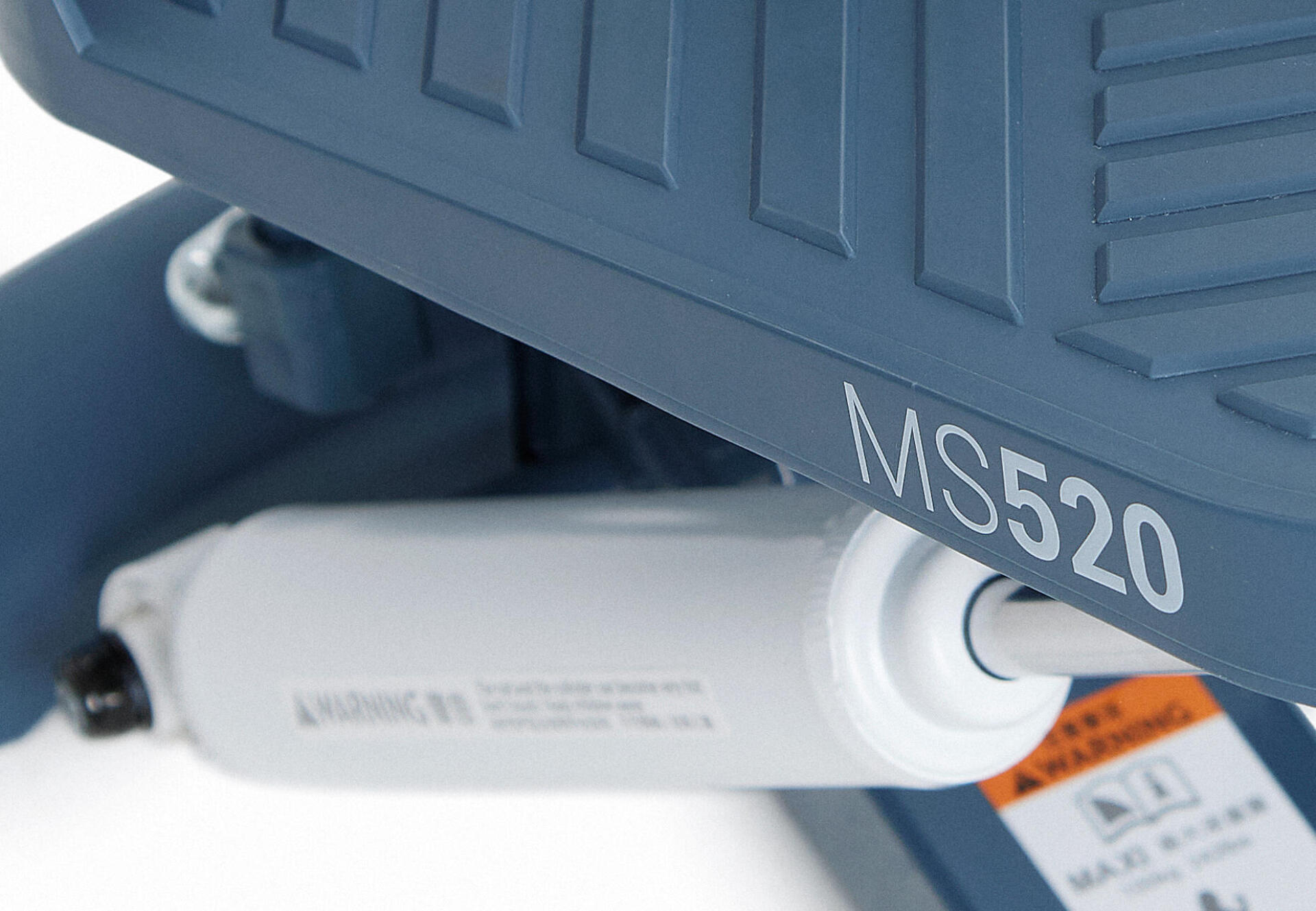

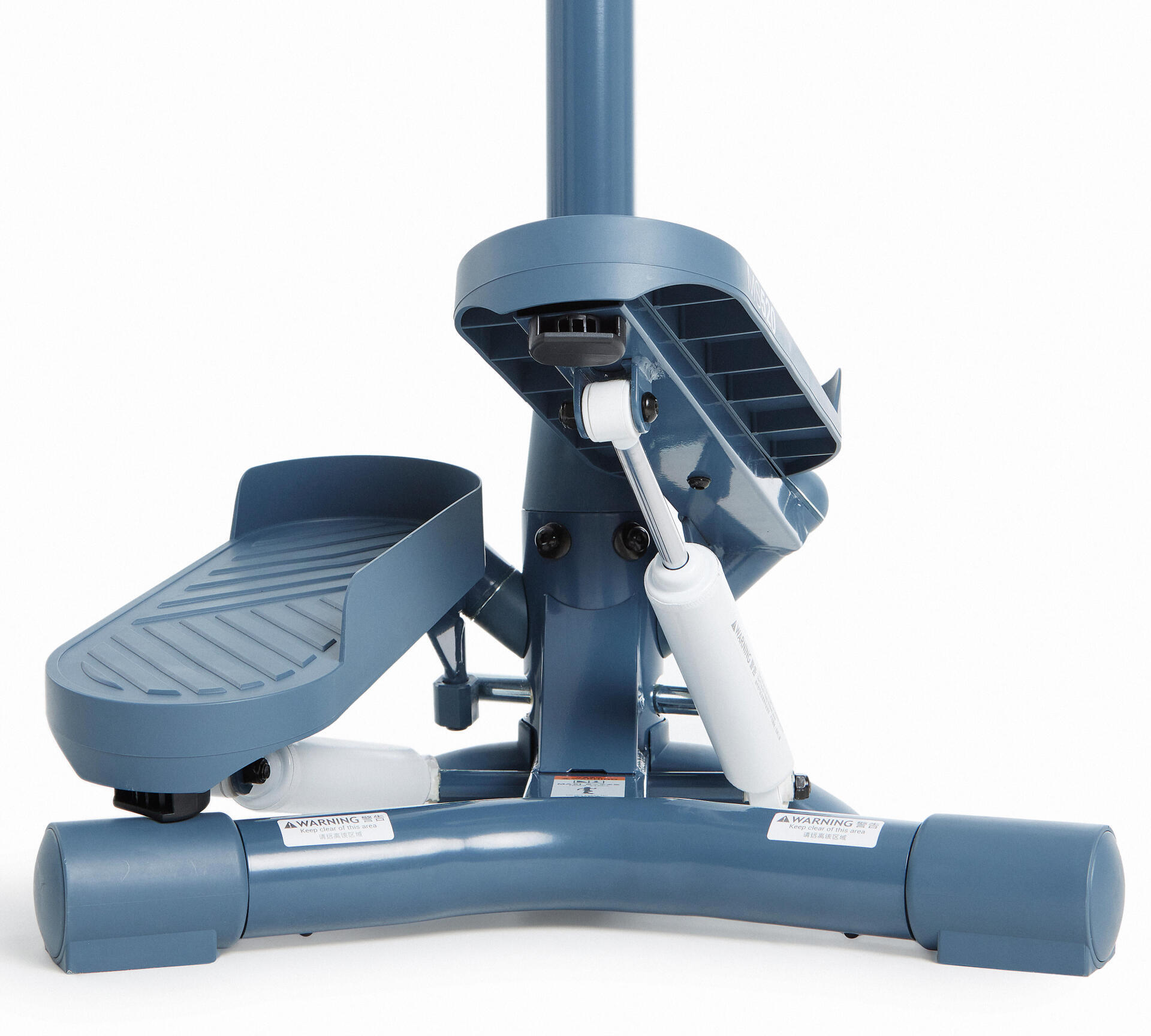

CHANGING THE PISTON
You'll need a few tools to remove the nut and bolt
such as: a 13 mm spanner, a 13 mm socket spanner or adjustable spanner, and an Allen key.
Avoid using a "multitool".
Unscrew the nut and bolt.
Remove the piston.
Install the new piston.
Tighten the pistons, making sure they're properly done up.
CHANGING THE PADS
The pads simply push on.
To remove them, just pull them off.
Then push the new pads on.
CHANGING THE GRIPS
The grips simply push onto the handlebar.
Pull them off gently.
If you're struggling, carefully insert a flathead screwdriver between the grip and the handlebar to help you.
Push the new grip into place.
The end cap just pushes on.
Use a screwdriver to lever it off if necessary.
Install the new one, using a hammer to push it in if necessary.
PLEASE CONTACT ONE OF OUR TECHNICIANS.
You will need to know your serial number in order to request support.
Dimensions: 47 x 42 x 95 -105 cm
Weight: 9.7 kg
Frame
100% steel
Outer shell
100% polypropylene
Got a question or need more info?
Domyos offers a 2-year warranty on your product's parts and labour under normal conditions of use from the date of purchase as shown on the receipt. DOMYOS' obligation under this warranty is limited to the replacement or repair of the product, at DOMYOS' discretion.
This warranty does not apply in the event of:
* Damage caused during transport.
* Incorrect assembly.
* Repairs performed by technicians not certified by DOMYOS.
* Lack of maintenance.
* Improper or abnormal use.
* Use outside the private sphere.
This commercial warranty does not affect the legal guarantee applicable in the country of purchase.
More details below or in the manual.
