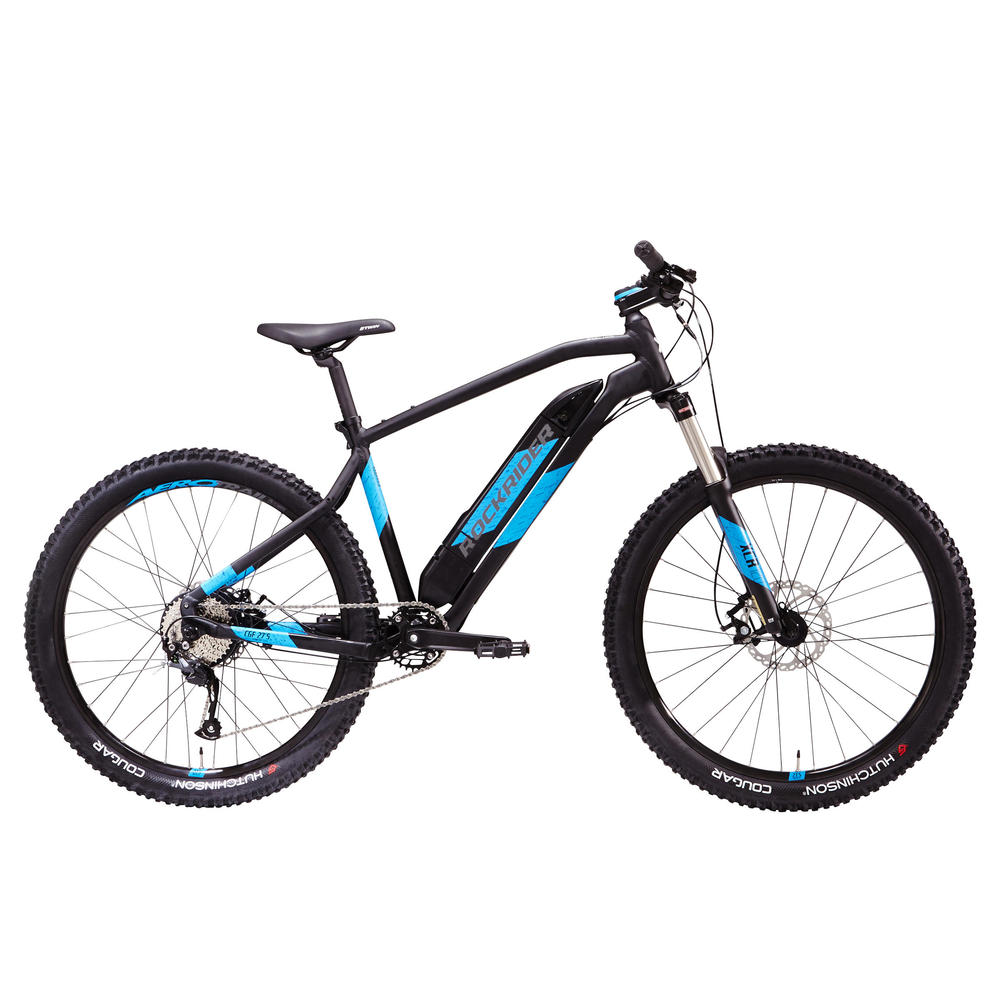

Rockrider e-ST 500 V2 women's electric mountain bike

REF: 8561491

ROCKRIDER E-ST 500 V2 MOUNTAIN BIKE

2020

This electric mountain bike's torque motor lets you explore absolutely anywhere while its 420Wh battery means you can go for even longer rides. The parts are sized to be more robust.

First use

Inflating your tyres

With electric bikes, you need to keep a close eye on tyre pressure. The wheels have a lot of weight on them because of the combination of the motor and bike. To reduce the risk of punctures and ensure your bike can achieve its maximum range, we recommend you inflate your tyres to a pressure of between 1.0 and 1.8 bar.

INFLATING-YOUR-TYRES-ROCKRIDER-ST540-MOUNTAIN-BIKE

Adjusting your fork

Click on the link below for instructions on how to adjust your ROCKSHOX JUDY hydraulic fork, which offers 120mm of travel.

Bedding in your brakes

The brake pads and discs on a new bike are new themselves and don't work to their full potential. Hard, continuous braking (on descents, for example) can cause the pads to overheat and "glaze". To ensure that your brakes perform, we recommend you bed them in.  You need to apply each brake firmly around ten times to bed them in properly. The bedding-in process involves getting up to a speed of 25 km/h and then applying just one of the brakes firmly to reduce your speed to 5 km/h, without locking the wheel.

Adjusting the height of your handlebars

Your handlebar is set in the highest position to help keep your back raised, which is the most comfortable position for riding. For improved aerodynamics and more effective pedalling, you can lower your handlebars to lower your body. This will cause you to lean forward and adopt a racing position. Follow the steps in this video to move the headset spacers below the stem and lower the handlebars on your bike.

ADJUSTING THE HEIGHT OF YOUR HANDLEBARS

Aligning your handlebar

ALIGNING YOUR HANDLEBAR

Positioning your brake levers

POSITIONING YOUR BRAKE LEVERS

Fitting your gps

FITTING YOUR GPS

Adjusting the height of your saddle

ADJUSTING THE HEIGHT OF YOUR SADDLE

Adjusting the tilt of your saddle

ADJUSTING THE TILT OF YOUR SADDLE

Changing your pedals

CHANGING YOUR PEDALS

Using the screens

Using the buttons

Each button has a separate function, detailed below:

buttons screen rockrider e-st 500 mountain bike

Screens and functions faq

What happens if you forget to switch off your bike?

The bike turns off automatically after a few minutes if it isn't being used.

What is walking mode?

When you need to push your bike while walking alongside it, this mode takes some of the strain! Please note: this mode should not be used when riding your bike. Press and hold down the "TOP ARROW" button to launch the mode.

This mode switches off when you stop pressing the button.

Never use walking mode while riding the bike as this may damage the motor.

How much electrical assistance does each mode give?

MODE 0 = No electrical assistance

MODE 1 = the electrical system increases your output by 60%.

MODE 2 = the electrical system increases your output by 150%

MODE 3 = the electrical system increases your output by 300%

st520-rockrider-mountain-bike-equipment

The right equipment in case of a hiccup

If you're going to be able to deal with punctures, a broken chain or any other snag, you're going to need the right kit. Here's a selection of products that can get you out of various sticky situations.

Have a problem?

Your battery won't charge

1. CHECK THE BATTERY > CHARGER > MAINS SOCKET CONNECTION > Make sure the charger you are using is the one provided by Decathlon. Connect the charger to the battery and a mains socket. Fixed red charger light = the battery is charging. Fixed green charger light = the battery has finished charging. Flashing charger light = the battery or charger has a problem. A completely drained battery will take 6 hours to charge fully.   2. CHECK THAT THERE IS NO DIRT STOPPING THE BATTERY CHARGING The charger's and the battery's connectors should be clean. There should be no dirt preventing contact between the battery and its charger.   3. IT MAY JUST BE THAT THE LED INDICATORS ON THE BATTERY ARE FAULTY Visit one of our Decathlon workshops to have them repaired.

One or more leds on your battery is/are flashing

THE LAST LED IS FLASHING (the one furthest from the battery button). Your battery is almost flat and needs to be charged. Plug your battery in to the charger.   THE 4TH LED IS FLASHING Your battery's voltage is very low and it has not been charged for a long time. Charge it as soon as possible to prevent it from going into a deep discharge and becoming unusable.   ANOTHER LED IS FLASHING Your battery has suffered an abnormality that has caused a fault. This fault may be temporary or permanent. Please visit a Decathlon workshop to have your battery and bike diagnosed.

LED battery
The screen is showing an error code

ERROR 10/12 = UNDERVOLTAGE Charge the battery.If the error code continues to show, go to a Decathlon workshop.   ERROR 11 = OVERVOLTAGE Switch off the bike and switch it on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 20 = CURRENT GAUGE ERROR Switch off the bike and switch it on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 21/23 = TEMPERATURE SENSOR ERROR Switch off the bike and switch it on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 24/25 = ABNORMAL CURRENT OR VOLTAGE Switch off the bike and switch it on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 26 = TEMPERATURE SENSOR ERROR Charge the battery and switch the bike on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 30 = PEDESTRIAN MODE ERROR Leave the bike for a while, charge the battery and then switch the bike back on.If the error code continues to show, go to a Decathlon workshop.   ERROR 30 = PEDESTRIAN MODE ERROR Leave the bike for a while, charge the battery and then switch the bike back on.If the error code continues to show, go to a Decathlon workshop.   ERROR 40/41 = MOTOR OVERVOLTAGE Let the motor cool down by pedalling less hard or switching to a lower boost mode.If the error code continues to show, go to a Decathlon workshop.   ERROR 42/43 = MOTOR ERROR OR SHORT-CIRCUIT Switch off the bike and switch it on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 44 = MOTOR OVERHEATING Let the motor cool down by pedalling less hard or switching to a lower boost mode.If the error code continues to show, go to a Decathlon workshop.   ERROR 45 = ERROR RECTIFIED DURING USE Switch off the bike and switch it on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 46 = MOTOR NOT WORKING Check that the motor is properly connected and switch the bike back on.If the error code continues to show, go to a Decathlon workshop.   ERROR 60 = COMMUNICATION CONTROLLER/SCREEN ERROR Check that the screen cables are properly connected. Check that the battery is properly engaged and close enough to the motor unit.   ERROR 70/71/72/73 = TORQUE SENSOR ERROR Switch off the bike and switch it on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 80/82/83/84 = MOTOR PROGRAMME ERROR Switch off the bike and switch it on again.If the error code continues to show, go to a Decathlon workshop.   ERROR 81 = SPEED INFORMATION NOT RECOGNISED Check that the magnet attached to one of the spokes on the rear wheel is still there and is correctly positioned in relation to the speed sensor.

Low or reduced range

1. Please follow best practices when it comes to usage and storage. The range of your electric bike depends on a number of factors:> THE LOAD ON THE BIKE: The range will be reduced if the bike is carrying too much weight. > THE TYPE OF ROUTE: The range is reduced on climbs. > TYRE PRESSURE: The range increases when tyres are inflated to a pressure of between 1 and 1.8 bar. > OUTDOOR TEMPERATURES The range is reduced in colder weather (by up to 50%). > THE BOOST MODE USED: We recommend reducing the boost mode when the battery is running low. > OBSERVANCE OF THE BATTERY CHARGE AND STORAGE CONDITIONS.   2. Old batteries do not perform as well as new ones They offer reduced range. Head to your nearest DECATHLON workshop to have your battery checked.

> Mechanics

A wheel is buckling after a few rides

When you take your new bike out for a ride for the first time, a lot of parts move around and fall into place.   You'll hear the spokes on your wheels creak because of the residual torsion in them. Your wheels should not buckle in any way at all. If they do, then make the most of the free check-up available to you within six months of purchase and call in at one of our DECATHLON workshops to have them repaired free of charge.

WheelBuckling
Your gears are not shifting properly

There could be several reasons why your gears (cogs) are not shifting correctly.1. Check the position of the housing ends.Housing ends that are out of position can obstruct the derailleur cable when it is being pulled and prevent the rear gears (cogs) from shifting smoothly. If a housing end is out of position, push it back into place.2. The cable and housings may have jammed up.If the smallest gears (cogs) do not move down, if the derailleur doesn't move even when the gear shifter is operated, then the cable and the housings have jammed up. They need to be replaced. You can head to a DECATHLON workshop or replace it yourself with the help of this video.3. Take your mountain bike to a DECATHLON workshop to have the derailleur adjusted. 4. You should also check that the derailleur dropout is not twisted.

E-ST 900 drive train
You've lost a key

You can have a new key cut at a heel bar/locksmith. If you lose both keys, go to your nearest DECATHLON workshop to have the lock changed. You'll be given two new keys to go with the lock.

Locking your ST900

The battery

How long does it take the battery to charge?

It takes six and a half hours to charge the battery fully (from 0% to 100%).

Charger
Can you ride when your battery is flat?

It's an electrical assistance bike. That means it's entirely possible to ride without this assistance.

However, you may well notice the additional weight of the assistance system.

Can you leave your charger connected to the battery even after it has finished charging?

Yes, the charger is designed to be connected round the clock.

When the battery is fully charged, the charger stops charging. You can tell when it is charged because the LED will turn off.

Should you wait until your battery is completely flat before charging it?

No. Lithium-ion batteries have no memory effect and can therefore be charged at any time.

We recommend charging your battery regularly to keep it working well.

Does the battery charge while cycling?

No, it doesn't have a dynamo. Some systems let you charge the battery as you ride or brake, but this doesn't generate much power.

What should you do with the battery when it wears out?

When your battery wears out, take it to your local Decathlon store, which will send it to a specialist facility to be recycled.

How should you store your battery?

You must store and charge your battery in a cool (between 10°C and 25°C), dry place, out of direct sunlight. Do not store the battery for long periods if it is empty or below 10% charge as this may result in deep discharge and damage the battery.

You should charge the battery (even if it's not being used) at least once every six months to prevent deep discharge and loss of the battery's capacity.

Where can you buy a replacement battery?

You can buy new batteries from your DECATHLON workshop.Contact your nearest workshop to check on availability and order times.

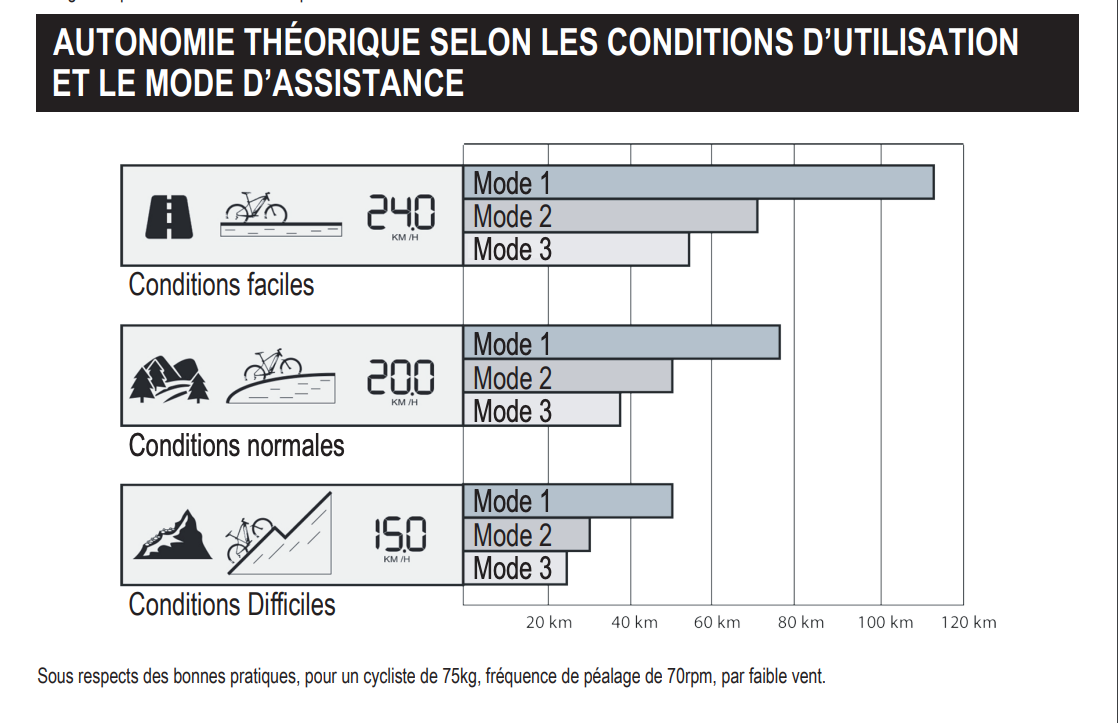

What is the range of the rockrider e-st500 v2?

The range of your electric bike depends on a number of factors:> THE LOAD ON THE BIKE: The range will be reduced if the bike is carrying too much weight.> THE TYPE OF ROUTE: The range is reduced on climbs.> HOW YOU RIDE THE BIKE: The range depends on how much effort you expend when pedalling.> TYRE PRESSURE: The range increases when tyres are inflated to a pressure of between 1 and 1.8 bar.> OUTDOOR TEMPERATURES: The range is reduced in colder weather.> THE BOOST MODE USED: We recommend reducing the boost mode when the battery is running low.> OBSERVANCE OF THE BATTERY CHARGE AND STORAGE CONDITIONS

e st 500 v2 battery life
What is the lifetime of your battery?what is the lifetime of your battery?

The warranty on your battery is for 2 years or 500 cycles (1 cycle = 1 full charge + 1 full discharges, or two 50% charges + two 50% discharges). Up to these 500 cycles, we guarantee that the battery life will always be at least 80% of a new battery's life. After 500 cycles, the battery will still work but its range will drop off faster. Given the average range of 60 km when the battery is 100% charged, that means you can cover more than 25,000 km.

Product maintenance

Regular maintenance is important if you want to keep your bike working efficiently for as long as possible, so we've put together some maintenance tips to help you.

1. Before each ride, make sure your tyres are inflated to 1.8 bar.

2. Charge the battery fully at least once every 6 months.

3. Store the battery in a dry place, at a moderate temperature, and out of the sun.

Spare parts

Need to replace a part on your bike? You'll find all our spare parts for the E-ST 500 MOUNTAIN BIKE right here.

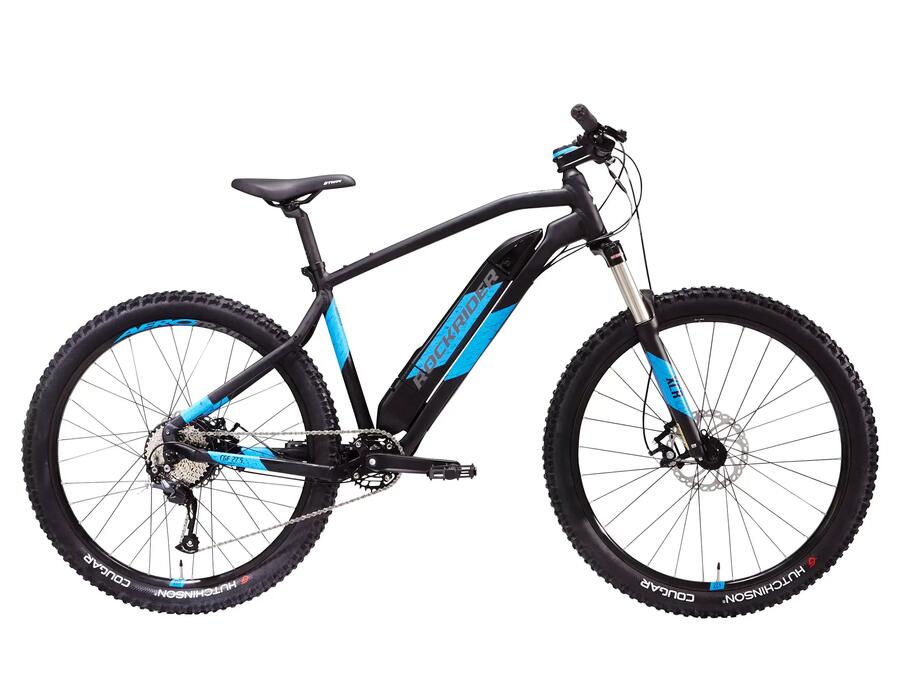

Rockrider e-ST 500 V2 women's electric mountain bike

Haven't been able to fix your problem or find what you need?

Please contact one of our technicians who will be happy to help

User guides

Rockrider e-ST 500 V2 women's electric mountain bike

Warranty

Braking

Braking instructions

Suspension

Suspension instructions

Drive train

Drive train instructions

Our commitments

ROCKRIDER guarantees the frame, handlebar and stem of your mountain bike for life (in normal conditions of use).

The guarantee for other parts is two years.

As soon as your child starts using the bike, some components will move slightly. It's for that reason that we offer a free check of your mountain bike six months after purchase.
