The right equipment in case of a hiccup
If you're going to be able to deal with punctures, a broken chain or any other snag, you're going to need the right kit. Here's a selection of products that can get you out of various sticky situations.
REF: 8555876
2020

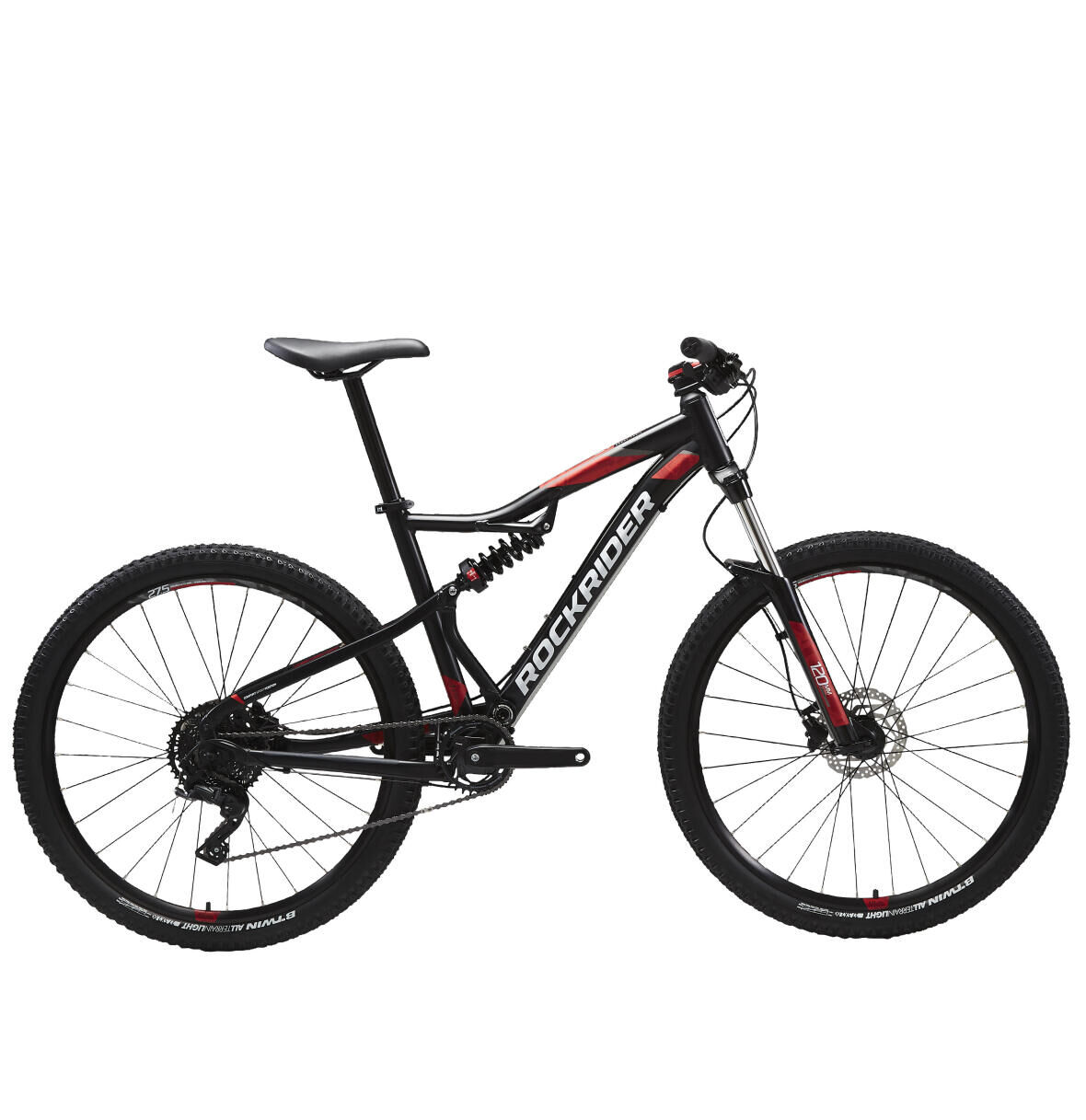

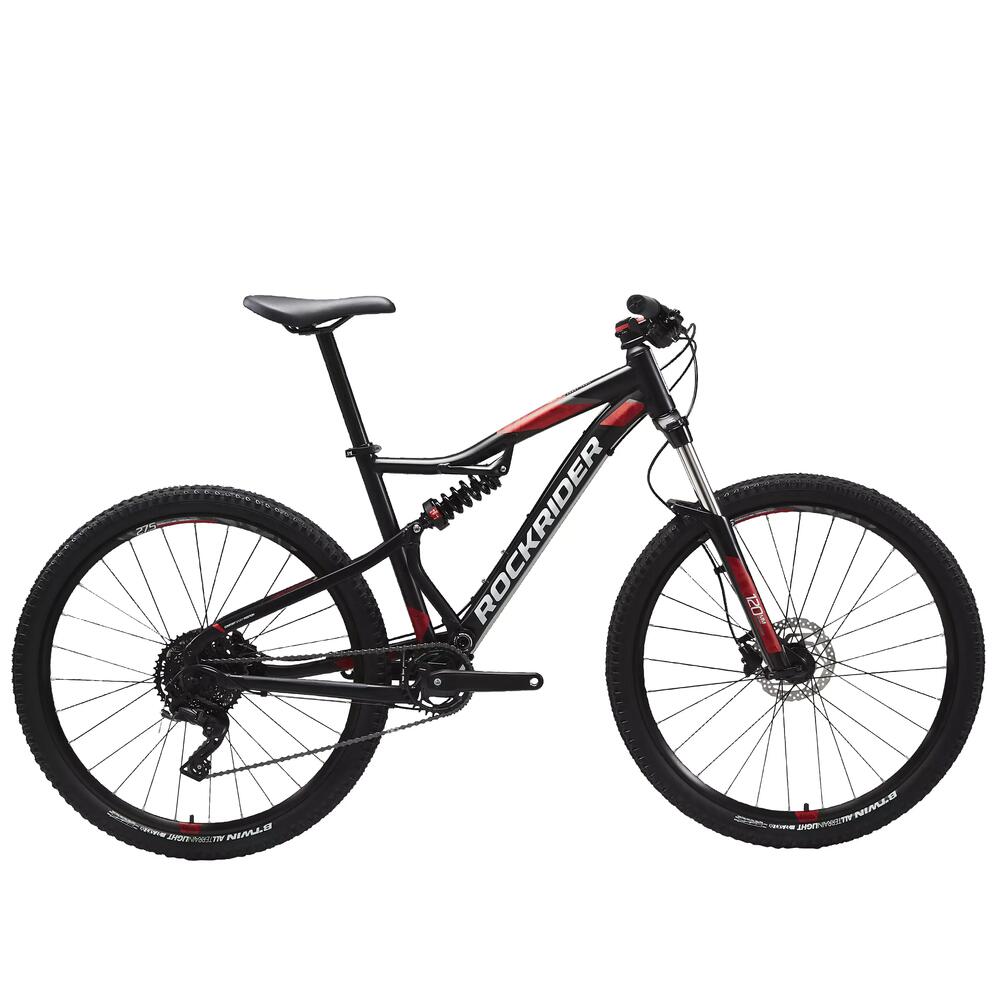

This 27.5" mountain bike is designed for you to enjoy two- to three-hour rides all year round. Enjoy the comfort of the 120 mm front and rear suspension on this ST 530 S mountain bike. The single chainring and hydraulic disc brakes will have your back when dealing with uneven terrain.
The recommended average tyre pressure is 1.8 bar.
Your handlebar is set in the highest position to help keep your back raised, which is the most comfortable position for riding. For improved aerodynamics and more effective pedalling, you can lower your handlebars to lower your body. This will cause you to lean forward and adopt a racing position. Follow the steps in this video to move the headset spacers below the stem and lower the handlebars on your bike.
Your bike's frame comes with a quick release system. Stand astride your bike. Undo the clamp by pulling its lever. Pull or push the saddle until it is at hip height. Tighten the clamp by pushing its lever back into place. For more precision, take a look at our video tutorial.
The BTWIN U-Fit fork has been designed to make adjusting it as easy as can be. A genuine innovation: weigh yourself and then turn the thumbwheel on the fork until your weight appears in the window. This will make the spring harder or softer, in line with your weight.
The brake pads and discs on a new bike are new themselves and don't work to their full potential.
To reduce the risk of your inner tube getting perforated or pinched, you can convert your mountain bike's wheels to tubeless. To do this, you'll need to buy: - A pair of TUBELESS tyres: DECATHLON: ALL TERRAIN 9 GRIP 27.5 x 2.10 TUBELESS READY/ETRTO 54-584 (8386245) MOUNTAIN BIKE TYRE - 21 mm rim tape: ALLTRICKS: NOTUBES YELLOW 21 MM TAPE FOR 5 RIMS - A pair of Schrader TUBELESS valves: ALLTRICKS: NO FLATS JOE'S PAIR OF TUBELESS 36 MM SCHRADER (AUTO) VALVES - Puncture-prevention fluid: DECATHLON: SEALANT FOR TUBELESS READY TYRES AND RIMS (8550735) WHAT TO DO:
If you're going to be able to deal with punctures, a broken chain or any other snag, you're going to need the right kit. Here's a selection of products that can get you out of various sticky situations.
When you start using your new bike, lots of its parts are going to wriggle around as they settle into place.
Unfortunately, anyone can get a puncture. - The ground (thorns, brambles, glass, nails, etc.)
There are several things you can do to soften your fork:
There could be several reasons why your gears (sprockets) aren't shifting smoothly.
If your brake lever feels spongy and/or touches the handlebar before your bike starts to slow down: You need to bleed your brakes. Visit one of our Decathlon workshops to get our technicians to do this for you.
A bent hanger causes the derailleur to be out of alignment and therefore unable to function correctly. Stand behind your bike and examine the alignment of the derailleur.
Have you broken your chain? You've got 2 options: 1- Repair it yourself with the help of this video. You're going to need a chain tool and a quick link. 2- Visit one of our Decathlon workshops to get our technicians to repair it.
To clean your bike, you'll need a bike cleaner, a sponge and a brush.
First, hose your bike down.
Next, use the sponge and brush to apply the cleaning products.
Leave the cleaning products time to work, then rinse the bike.
Do this from a reasonable distance so as not to damage the mechanical parts.
Lastly, dry your bike with a soft, clean, dry cloth.
To clean and lubricate your drive train, you will need a degreaser spray, a soft bristled brush and a lubricant.
The first step involves covering the brake disc with a clean cloth to prevent any lubricant from getting on to it.
Then apply the degreaser to the whole of the drive train and scrub the cassette, chain and derailleur jockey wheels with the brush.
Leave to act for a few minutes before rinsing the degreaser off from a suitable distance.
Allow the drive train to dry before applying the lubricant.
Shake the lubricant and apply to the inside of the chain, where it will work best.
Is your gear cable dirty, rusty or damaged, or are your gears hard to shift or shifting randomly?
Then your gear cable needs to be changed! To do this, you'll need some pliers, a screwdriver, a cable cutter, an Allen key and a new set of cables and housing.
First of all, you'll need to remove the cable from its housing. Start by removing the plug from the shifter. Shift the gears all the way down, then cut the cable so you can pull it all the way out of the housing.
Next, hold the housing against your bike to work out how long it needs to be. Cut it and place the end caps on. You can now install the housing.
Pass the cable through the shifter and feed it through the housing. Next, screw the plug back in and fix the cable to the derailleur. Adjust the drivetrain by tightening the cable if the gears are struggling to shift up and slackening it if they are struggling to shift down.
Once you're done, cut the cable and use the pliers to crimp the end cap onto it.
To repair a puncture, you'll need: a pump, a bowl of water, a cloth and a puncture repair kit.
Pump a little air into the inner tube. Locate the hole by submerging the tube in the water.
Once you've found the hole, dry the inner tube with the cloth and use the sandpaper in the repair kit to sand the tube.
This will enable the glue to stick better.
Apply the glue generously to the hole, and wait for 3 to 5 min.
Lastly, place the patch over the hole and press down for a few minutes.
You can then put your inner tube back into your tyre!
To do this, you'll need a new derailleur hanger that's compatible with your bike (please check our "SPARE PARTS") and a 5 mm Allen key.
Remove the wheel and the damaged derailleur hanger.
Position the new hanger on the frame.
Remove the piece of old hanger from the derailleur before putting the new one on using the 5 mm Allen key.
All that remains is to put the derailleur on the new hanger and check the gears.
You will need the following: a chain tool, a new chain and a quick-release link.
Put the chain on the cog and on the smallest chainring.
Remove the quick-release link using a quick-release chain tool and then remove the chain from the drive train.
Put the new chain on the last of the cogs and on the smallest chainring. This makes it easier to determine its optimal length.
The chain should pass close to the top pulley of the upper jockey wheel on the derailleur.
Once you've determined the length of the chain, use the chain tool to cut it as required.
Then fit the quick-release link on the chain and turn the pedal to position the quick-release lever on the top part of the chain. Press it with your hand to check that it is on the right position.
You will need the following: new brake pads, a flat screwdriver and a 3mm Allen key.
Remove the wheel first of all. Then use the screwdriver to move the pads apart and put the pistons back into their original position.
Take out the pin holding the pads in place and remove them from their housings. Position the counter spring between the new pads.
Insert the new pads in the brake calliper and then put the pin back in place to complete the process.
Put the wheel back on and check to make sure that the brake pads are properly in place and do not rub against the disc.
You will need a 5mm Allen key.
Unscrew the brake calliper, spin the wheel and operate the brake lever. It is important to keep the brake lever engaged before screwing the calliper back in place.
Check to see that the disc and the pads are still in contact.
Need to change some parts? You'll find all our spare parts for the ST 530 S MOUNTAIN BIKE right here.
Instruction manual
Braking
ROCKRIDER guarantees the frame, handlebar and stem of your mountain bike for life (in normal conditions of use).
The guarantee for other parts is two years.
As soon as your child starts using the bike, some components will move slightly. It's for that reason that we offer a free check of your mountain bike six months after purchase.
Please contact one of our technicians who will be happy to help
