CLIMB BY DOMYOS

Ref: 8396836

In stores: July 2017

Designed for use in the home with the aim of improving cardiac performance and developing muscle tone. Step up the intensity of your training sessions thanks to the combination of a unique 20% incline system and a top speed of 18km/h.



ITS ADVANTAGES:

VERSATILITY: Step up the intensity of your sessions with a top speed of 18km/h and a maximum incline of 20%.

USER COMFORT: A large running surface designed for long strides: 51 x 135cm.

COACHING: 30 pre-recorded programmes and compatible with the Domyos Econnected app.

Composition / Advice

COMPOSITION:

Frame // Chassis (for rollers):

100% steel

Cover:

75% polystyrene (PS),

25% polyvinyl chloride (phthalate free)

Packaging:

85% cellulose

10% expanded polystyrene

5% polyethylene terephthalate (PET)

Deck:

40% copper // 35% steel // 10.0% brass // 10% epoxy // 5% aluminium



USE RESTRICTIONS:

Max user weight: 130 kg

ASSEMBLING AND SETTING UP

Thank you for purchasing a Domyos product. To help you get your equipment up and running, click on the video to see the different set-up steps.

PROBLEMS

Is your equipment properly set up but you're still having an issue when using it? See all our FAQs here.
Operation: BLUETOOTH, USB, JACK.

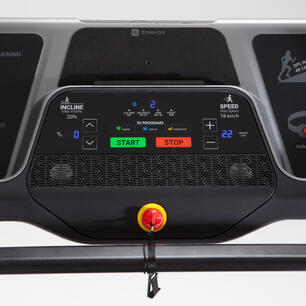

Console: Bluetooth, USB, jack

1. The Bluetooth symbol lights up and indicates that a tablet or smartphone is connected to the console. This only works with the “Domyos Econnected” app for IOS and Android.

    Econnected FAQs: https://support.decathlon.fr/support/application-e-connected-tp_1079

2. The USB port is only there to keep your tablet or smartphone charged when using your treadmill.

(NB: USB not available on the CLIMB treadmill).

3. The audio jack can only be used to connect your MP3 player, tablet and smartphone to the speakers on your console.

YOUR CONSOLE ISN'T SHOWING THE RIGHT SPEED

Before you start, make sure your treadmill is plugged in to the mains.

1. Press the "STOP" button.

2. Hold down the "STOP" button and insert the "SAFETY KEY".

3. The units being used are displayed in the bottom right corner:     UNIT MI   or  UNIT KM.

4. Press "+" to change the unit.

5. Press "STOP" to confirm the changes.

6. You can now use your treadmill.



YOUR TREADMILL DOESN'T SWITCH ON

1. Check that the power cord is plugged into a working mains socket (to check if the wall socket is working, plug
in a lamp or other electrical device).

2. Check that the other end of the power cord is connected to your treadmill.

3. Check that the main switch near the power cord is set to I.

4. Check that the safety key is pushed fully home in the console.

YOUR TREADMILL IS MAKING A NOISE

1. Shoes:

=> The noise you can hear could be the sound of your shoes on the running belt. To check that the noise isn't coming from your shoes, please see the video below



2. The screws are loose:

 => Tighten all of the screws.



3. The running belt is wonky:

=> Select the "CENTRING THE RUNNING BELT" tab in the MAINTENANCE section.



4. The running belt is not lubricated:

=> Select the "RUNNING DECK LUBRICATION" tab in the MAINTENANCE section.

HOW DO YOU ACTIVATE/DEACTIVATE THE CONSOLE'S BEEP?

When you press a button on the console, a beep notifies you that your action has been taken into account. You can deactivate this beep:

1. Access the home "GO" screen on the console by clicking the "STOP" button several times.
2. Press the "+" to turn the "beep" sound on. / Press the "-" to turn the "beep" sound off.
3. To exit, wait for 5 seconds until the display returns to GO.

THE TREADMILL SLOWS DOWN WHEN YOU STEP ONTO IT

The running belt is slack

=> Select the "RUNNING BELT TENSION" tab in the MAINTENANCE section.



THE TREADMILL SWITCHES OFF DURING USE

1. If your treadmill is plugged in to an extension cable, unplug it and plug it directly into a wall socket.

2. The problem could be caused by the power cord. In this case, please see the FAQ on ""YOUR TREADMILL IS NOT SWITCHING ON""

TROUBLE DETECTING HEART RATE WITH THE HANDPULSE SENSORS

Slightly dampen your hands and place both hands on the sensors.



THE "GO SERVICE" MESSAGE APPEARS ON YOUR SCREEN

Every 200 km, the word "service" flashes up on the "GO” home screen. This message reminds you that your equipment is due for a service.



To delete the flashing message:

Access the start/home "GO" screen on the console by clicking the "STOP button several times."

Hold the "STOP" and "^" buttons down for a few seconds.

PARTS DIAGRAM
YOU CAN'T GET YOUR TREADMILL TO WORK IN MANUAL MODE

Check that the icon on your treadmill's console is off.

YOU'VE GOT A PROBLEM WITH YOUR CARDIO FITNESS APP

Is your equipment working properly but you're having a problem with the app? Click on the "MY APP" button to check out our solutions.

You weren't able to fix your problem or didn't find the answer to your question? Please contact our technicians.

I MAINTAIN MY PRODUCT

Care and maintenance are important for the longevity of your equipment. Please find further maintenance instructions here.
ADJUSTING THE POSITION OF THE RUNNING BELT (CENTRING)

1. Locate the coloured indicators at the back of your treadmill. If they appear red, the band needs to be re-centred. This will enable you to protect the running belt and prevent the machine from stopping when you aren't expecting it to.

2. Turn your treadmill to 4 km/h (2.5 mph) and stand at the back of the machine.

3. If the belt has shifted towards the left: Turn the left adjustment screw through half a rotation, in a clockwise direction.

4. If the belt has shifted towards the right: Turn the right adjustment screw through half a rotation, in a clockwise direction.

5. Leave your treadmill running for the time it takes for the belt to move across (1 to 2 minutes) and repeat the operation if necessary.

Make sure, however, that you do not over-stretch the belt.

ADJUSTING THE TENSION IN THE RUNNING BELT

The running belt will be subjected to wear and tear and become less taut over time. Be sure to tighten it as soon as it starts to slip (a skidding sensation, with jerky changes of speed).



1&2. Turn the 2 adjustment screws through half a rotation, in a clockwise direction. Repeat this step if necessary but make sure you don't over-stretch the belt.

3. The belt is correctly stretched if you can lift the edges 3 to 5 cm on each side.

LUBRICATING THE RUNNING BELT

It is imperative that you keep your treadmill well-lubricated, so as to limit the amount of friction between the running belt and the deck. No lubrication is necessary if traces of silicone are present on the inner side of the running belt or on the deck (and the surface is damp and slightly greasy).

If the belt and the deck are dry:



1. Switch off your treadmill and unplug it.



2. Lift up the sides of the running belt and coat the inner surface with silicone.*



3. Plug your treadmill in again.



4. Make the belt rotate at a speed of 4 km/h (2.5 mph), with no-one on it, for 10 to 20 seconds.



5. Your treadmill is ready for use!



* A single lubrication corresponds to a dose of between 5 and 10 ml of silicone.

Please note that if you use too much silicone, you could harm the proper functioning of your treadmill (risk of skidding).

When buying lubricants, consult your local DECATHLON store or go to www.domyos.com.

MAINTENANCE

Regular maintenance is necessary to maintain the performance of the machine and to extend the life of the product.

The following can help reduce treadmill noise:



        1. Tighten the screws and bolts once a month.

        2. Lubricate the running belt after 200 hours of use.

        3. Place a suitable floor mat (such as the Domyos Training Mat) under your treadmill.





Cleaning:



        1. Switch off and then unplug the treadmill.

        2. Apply a small amound of mild, multi-purpose cleaner, using a 100% cotton cloth. Do not spray directly onto the walking belt and do not use acid or ammonia-based cleaning products.

        3. Wipe the console and screens.

        4. Remove any dust and grime from the hand rails, uprights, foot rails, frame and motor hood. In addition, wipe the deck along the sides of the walking belt. Do not wipe under the walking belt.

8396836

ORDER SPARE PARTS FOR THIS PRODUCT

NEED SPARE PARTS FOR YOUR TREADMILL?

INSTRUCTIONS

Need the product's user guide? Click to download.

OUR ENGAGEMENTS

DOMYOS guarantees this product under normal use conditions, 5 years for the structure, 2 for other parts and labour as from date of purchase, as shown on receipt.
