FEL500

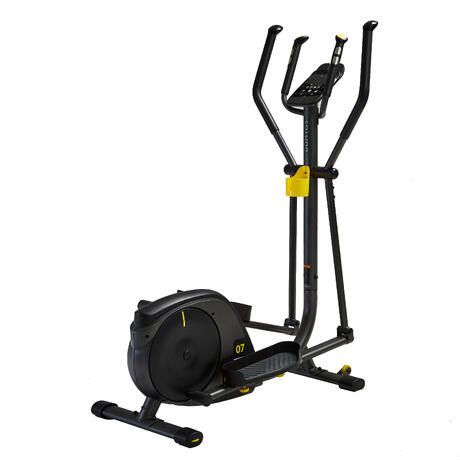

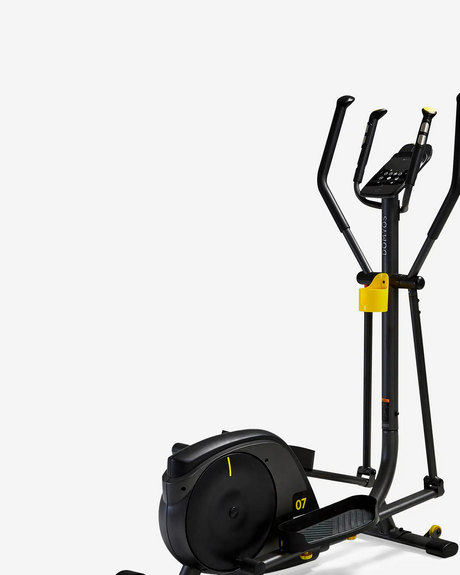

500 CROSS TRAINER

Ref.  8528961

Launch date: 2019

Our team designed this cross trainer for home cardio training workouts. Stay in shape by using it up to 4 times per week.

Want to stay in shape, lose weight, or tone your body? The smooth, wide movements of the EL 500 are compatible with the Econnected app: track your workouts and your progress!

SMOOTH PEDALLING: 7 kg flywheel

COACHING: 6 functions, 18 programmes
Personalised coaching with the Econnected app

HANDLING: Wheels for easy movement.

COMFORT: Ergonomic handlebars and adjustable pedals.

ASSEMBLY AND OPERATION

You have chosen a DOMYOS product and we would like to thank you for your trust in us. To help you with operating your device, click on the video, which will guide you through the different steps of assembly.

TROUBLESHOOTING

Your device is assembled correctly, but you're having trouble using it? Find all of our FAQs here.
THE CONSOLE DOES NOT DISPLAY THE CORRECT UNITS OF MEASURE
Console choice ve vm ro

1. Check that the cursor behind the console (see image) is selecting the right type of equipment.

CT = cross trainer / RO = rower / EB = exercise bike



2. Check the units of measure on the console.

By default, your console will give you distance and speed information in km and km/h.

To change units:

Turn off the console

Hold down the central "OK" button for 3 seconds, until you see KM or MI on the screen

Select the unit with the "+ -" buttons

Confirm by pressing the central "OK" button, and the console will automatically display the welcome screen

THE CONSOLE DOES NOT TURN ON
faq console ve vm

1. Check that the adapter is correctly plugged into the bike, that it is connected to the power, and that your plug works (to check that your wall outlet is functioning, plug in a lamp or another electronic device).

2. Check that the LED behind the console is lit = LED on = console out of service

3. LED off = Behind the console and in the stem tube, check that it is properly plugged in.

4. Plug OK but the LED remains off = converter out of service

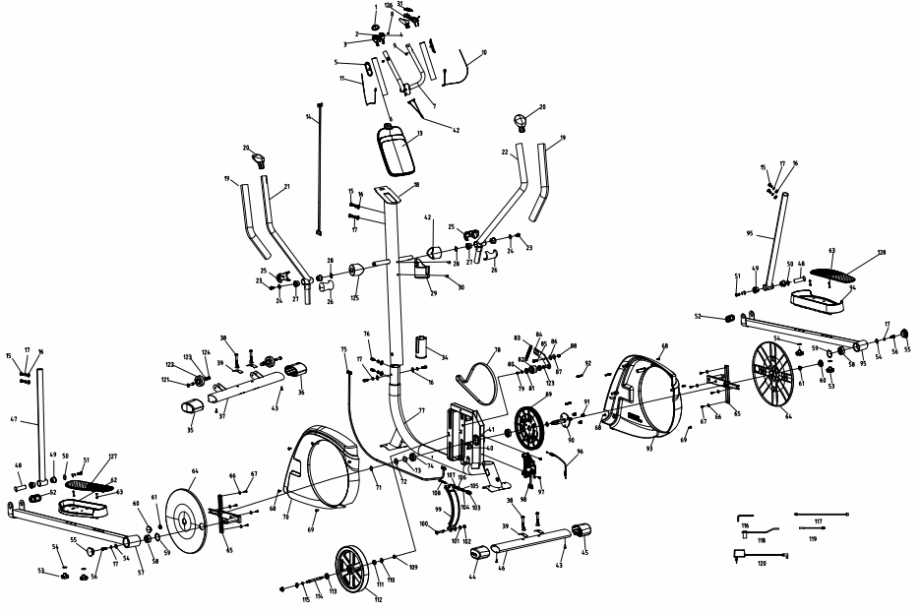

PARTS DIAGRAM
parts diagram
THE BIKE IS NOT STABLE

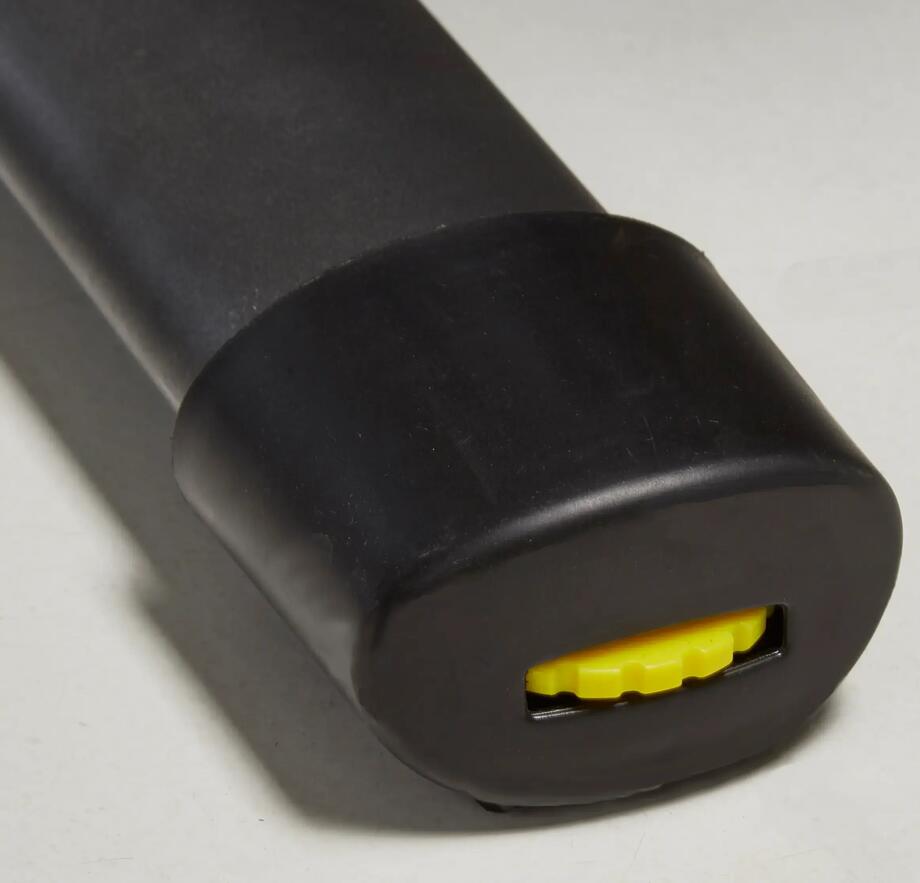

FEL500 FAQ stability

In case of instability during use, adjust the adjustment pads on either side of the rear feet.

A CLICK IS HEARD ON EACH PEDAL ROTATION
FEL500 Pedal axle tightening

Loosen the pedal screws one turn, then tighten very hard.

TROUBLESHOOTING THE HEART RATE MONITOR
EL120 HR

1. On the back of the console, check the plug on the connector that comes out of the handlebars.

2. Slightly moisten your hands and place both hands on the sensors.

THE BIKE MAKES A NOISE
FEL500 FAQ tightening

Tighten all of the visible screws

THERE IS AN E2 OR E3 CODE ON THE CONSOLE
THE CONSOLE STAYS AT ZERO
FAQ CONSOLE STAYS 0 VE VM

1. Check that the plugs are correctly attached at the back of the console.

2. Where the stem meets the structure, check that the plug is correctly attached.

TROUBLESHOOTING THE E-CONNECTED APP

Your device is functioning normally, but you're having trouble with your app? Find solutions by clicking on the "MY E-CONNECTED" button.

You weren't able to fix your problem or didn't find the answer to your question? Please contact our technicians.

PRODUCT MAINTENANCE

It takes care of you, so why not the other way round? Since regular maintenance is necessary to preserve the performance of your appliance and extend its service life, find all of our maintenance tips here.
Care instructions

1. Unplug the adapter after each use.

2. After each workout, clean any perspiration off of your product and dust it regularly with a soft cloth.

3. Regularly check the stability of your bike as well as the tightness of the screws and bolts according to the user guide.

STORAGE ADVICE

Do not leave in a damp place, do not store outdoors.











USE RESTRICTION

Max. user weight: 130 kg. For home use only.











USER GUIDE

INSTRUCTIONS

Need the product user guide? Click on download.

PRODUCT REPAIRS

Want to repair your product yourself, but don't know how? Check out all our tips and videos here.
1/ Changing the casing on the Domyos 520 Cross Trainer
  • 1/ Changing the casing on the Domyos 520 Cross Trainer
    1/ Changing the casing on the Domyos 520 Cross Trainer
  • 2/ Changing the pedal arms on the Domyos 520 Cross Trainer
    2/ Changing the pedal arms on the Domyos 520 Cross Trainer
  • 3/ Changing the stem tube on the Domyos 520 Cross Trainer
    3/ Changing the stem tube on the Domyos 520 Cross Trainer
  • 4/ Changing the console cable on the Domyos 520 Cross Trainer
    4/ Changing the console cable on the Domyos 520 Cross Trainer
  • 5/ Changing the belt on the Domyos 520 Cross Trainer
    5/ Changing the belt on the Domyos 520 Cross Trainer
  • 6/ Changing the low cable on the Domyos 520 Cross Trainer
    6/ Changing the low cable on the Domyos 520 Cross Trainer
  •  7/ Changing the speed sensor on the Domyos 520 Cross Trainer
    7/ Changing the speed sensor on the Domyos 520 Cross Trainer
  • 8/ Changing the flywheel on the Domyos 520 Cross Trainer
    8/ Changing the flywheel on the Domyos 520 Cross Trainer
  • 9/ Changing the idler on the Domyos 520 Cross Trainer
    9/ Changing the idler on the Domyos 520 Cross Trainer
  • 10/ Changing the bottom bracket on the Domyos 520 Cross Trainer
    10/ Changing the bottom bracket on the Domyos 520 Cross Trainer
  • 11/ Changing the bottom bracket bearings on the Domyos 520 Cross Trainer
    11/ Changing the bottom bracket bearings on the Domyos 520 Cross Trainer
  • 12/ Changing the motor on the Domyos 520 Cross Trainer
    12/ Changing the motor on the Domyos 520 Cross Trainer
  • 13/ Changing the crank arm on the Domyos 520 Cross Trainer
    13/ Changing the crank arm on the Domyos 520 Cross Trainer

ORDERING SPARE PARTS FOR THIS PRODUCT



NEED PARTS FOR YOUR CROSS TRAINER?

SERVICING/REPAIRING YOUR CROSS TRAINER / EXERCISE BIKE

See the workshop services and maximum recommended prices*

*Our prices apply to labour only (excluding parts) and may vary by store. If the store does not do the service itself, products are sent to the nearest Regional Workshop, which may lead to a higher cost than shown online. Please see your local Decathlon stores for a quote.

REPLACING THE COMPUTER

For tracking your activity on your equipment.

REPLACING THE SADDLE
10

For comfortable use of your equipment.

REPLACING THE CRANK ARMS
17

For changing the crank arms for optimal use of your equipment.

ADJUSTING THE RESISTANCE TENSION
21

For optimal functioning of the resistance.

REPLACING THE AXLE
21

For optimal use of your equipment.

REPLACING THE PEDALS
10

For optimal use of your equipment.

REPLACING THE PULLEY
21

For smooth pedalling during use.

REPLACING THE HARDWARE
23

For replacing worn or damaged hardware on your product for optimal use of your equipment.

REPLACING THE MOVING ARMS
24

For comfortable use of your equipment.

REPLACING THE MOTOR
29

For comfortable use of your equipment.

DAMPENER/STEM KIT ASSEMBLY
20

For quieter use of your equipment.

REPLACING THE PEDAL BEARINGS
31

For optimal use of your equipment.

REPLACING THE REAR FLYWHEEL
28

For optimal use of your equipment.

REPLACING THE SENSOR
21

For optimal use of your equipment.

REPLACING THE COMPUTER CABLE
18

For proper functioning of your equipment.

REPLACING THE SINGLE BLOCK PEDALLING MECHANISM
23

For optimal use of your equipment.

REPLACING THE REMOTE CONTROL BUTTON
23

For controlling the resistance on your equipment remotely.

SERVICING PACKAGE
35

This service includes:

- Verification, adjustment and tightening of hardware

- Equipment cleaning

REPLACING THE BELT
17

For optimal use of your equipment.

HOUSING REMOVAL/RE-ASSEMBLY
19

Taking off the housing on your equipment to work on the inside of your product.

REPLACING THE LOWER CABLE
21

Repairing the lower cable on your equipment to be able to adjust the tension resistance.

REPLACING THE TENSION CONTROL
17

For optimal use of your equipment.

Composition



COMPOSITION

PROTECTIVE COVER

100.00% Polystyrene (PS)



FRAME // CHASSIS

100.00% Steel

Our commitments

Domyos guarantees your product in normal conditions of use, 5 years for the structure and 2 years for other parts and labour, from the date of purchase, the date on the receipt is binding.
