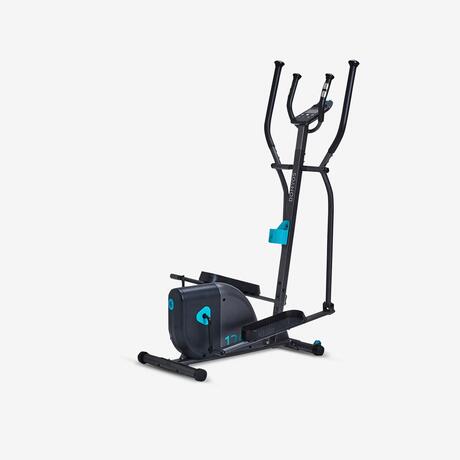

EL 120

EL 120

Réf.  8484396

The 120 cross trainer was designed for beginners to help them tone their entire figure while burning a maximum of calories.

An entry price cross trainer with training programs

PRODUCT BENEFITS

SMOOTH PEDALLING : 6 kg flywheel.

COACHING : 5 functions (calories burnt, distance, time, speed, heart rate)
7 programmes

MANEUVERABILITY : Built-in wheels, making it easy to move

ASSEMBLY

Thank you for choosing a DOMYOS product and for placing your trust in us.. If you want to know how assembly your elliptical bike, click on the vidéo.

I HAVE A PROBLEM

Your equipment is properly assemblied but you're having some difficulties during its use? Discover all of our solutions here.
MY CONSOLE DOES NOT TURN ON
faq console ve vm

1. Check that the elliptical bike is connected to the mains.

2. Check the LED at the back of the console = BLUE LED ON = console out

3. LED OFF = check the console connection.

4. Connection ok but the LED stay off = transformer is out

MY CONSOLE DOES NOT SHOW THE CORRECT UNITS OF MEASUREMENT FOR DISTANCE
Console choix ve vm ro

Console configuration problem:

1. Check at the back of the console and put the buton on "VE" (picture).

2. Press OK to start the elliptical bike.

3. Press and hold "OK" for a few seconds to display the unit of measurement.

4. Choose the correct unit "km" for kilometer/hour or "mi" for miles/hour.

5. Confirm your choice by pressing OK.

MY ELLIPTICAL BIKE MAKES NOISE

1. Tighten all visible screws
2. Check the stabiliser runners

MY ELLIPTICAL BIKE IS NOT STABLE.
stabilité el120

Check on the rear foot to ensure that the stabilizers are properly adjusted

I HAVE A PROBLEM WITH THE HEART RATE
FC EL120

1-Check the connection of the connector coming out of the handlebars

2-Moisten your hands slightly and place both hands on the sensors

I HAVE A CODE E2 OR E3 ON MY DISPLAY
MY CONSOLE REMAINS ON ZERO
FAQ CONSOLE RESTE 0 VE VM

Check that the cables are correctly connected behind the console and where the bracket joins the main frame of bicycle.

THERE'S A CLICKING NOISE WITH EACH TURN OF THE PEDALS

Unscrew the pedals by one turn, then screw them back on very tightly

I CAN'T FIT THE PEDALS
SERRAGE BRAS PEDALE

CAUTION, the axis of the left pedal arm is screwed in a counter-clockwise direction.

PARTS PLAN
PLAN EL120
Would you like further help? Click on "Request assistance"

I MAINTAIN MY PRODUCT

He takes care of you, so why not you? A regular maintenance is necessary to preserve the performances of your apparatus and prolong its life, find here all our advices of maintenance.
CARE INSTRUCTIONS

Regularly check that screws and bolts are properly tightened; wipe any perspiration off your product after each training session; dust regularly with a soft cloth.

STOCK ADVICE

Do not leave in a damp place; do not store outdoors.

RESTRICTED USE :

Max. user weight: 100 kg. For home use only.

I'M FIXING

You want to repair your product yourself but you don't know how? Discover here all our tips and videos.
Rear foot tips change on a Domyos ELLIPTICAL 120
  • Rear foot tips change on a Domyos ELLIPTICAL 120
    Rear foot tips change on a Domyos ELLIPTICAL 120
  • Handle bar change on a Domyos Elliptical 120
    Handle bar change on a Domyos Elliptical 120
  • Rear connection change on a Domyos Elliptical 120
    Rear connection change on a Domyos Elliptical 120
  • Speed sensor change on a Domyos Elliptical 120
    Speed sensor change on a Domyos Elliptical 120
  • Belt change on a Domyos Elliptical 120
    Belt change on a Domyos Elliptical 120
  • Flywheel change on a Domyos Elliptical 120
    Flywheel change on a Domyos Elliptical 120
  • Iddle wheel change on a Domyos Elliptical 120
    Iddle wheel change on a Domyos Elliptical 120
  • Monoblock crankset change on a Domyos Elliptical 120
    Monoblock crankset change on a Domyos Elliptical 120
  • Computer change on a Domyos Elliptical 120
    Computer change on a Domyos Elliptical 120
  • Monoblock crankset change on a Domyos Elliptical 120
    Monoblock crankset change on a Domyos Elliptical 120

Manual and software

COMPOSITION

FRAME

100.00% Steel

PROTECTION COVER

100.00% Polyurethane (PU)
