T540C

REF: 8542696

T540C

2019

In stores: October 2019

Designed for you to walk and run at home so you can stay in shape and develop your cardio fitness and muscle tone. A silent treadmill with a running surface designed for users running at up to 16km/h. The T540C is compatible with the Domyos Econnected app so that you can track your workouts.

ITS BENEFITS

VERSATILITY: Lets you walk or run at up to 16 km/h with an incline of 0 to 10%.

USER COMFORT: Wider running surface to make it more pleasant: 45 x 125 cm.

COACHING: 24 programmes + compatible with the Domyos Econnected app

Assembling and setting up

Thank you for purchasing a Domyos product. To help you get your equipment up and running, click on the video to see the different set-up steps.

Setting up and using your product

Thank you for purchasing a Domyos product. We've gathered together some handy tips to help you when you first set up and use your machine.

How to start your product

1. Plug in the power cord.

2. Flip the switch near the power cord to "I".

3. Stand on the treadmill's footrest.

4. Clip the safety key to your clothing.

5. Insert the safety key into the slot on the console.

6. Your screen will light up and display GO.

7. Your treadmill is ready to use!

What programmes are available?

This treadmill offers 24 pre-set programmes that vary the speed and incline.

The programmes are divided into several segments. Each segment corresponds to a time, speed and incline setting. Please note: two successive segments can have the same settings. You can modify the speed or incline to suit your level at any time during the programme.

T540C
Directions for use

1. If you are a beginner, start by training for several days at a low speed, without overexerting yourself, and taking rest periods if necessary. Gradually increase the number or duration of your workouts. During your workout, be sure to ventilate the room where your treadmill is located.

2. Cooling down: After each workout, walk a few minutes at a low speed to gradually bring the body to rest. This cool-down phase helps bring your cardiovascular and respiratory systems, blood flow and muscles back down to normal. This makes it possible to eliminate counter effects such as lactic acid build-up, which is one of the major causes of muscle pain (cramps and muscle aches).

3. Don't forget to stretch. We recommend that you stretch and hydrate after each workout to relax your muscles and promote recovery.

Problems

Is your equipment properly set up but you're still having an issue when using it? See all our FAQs here.

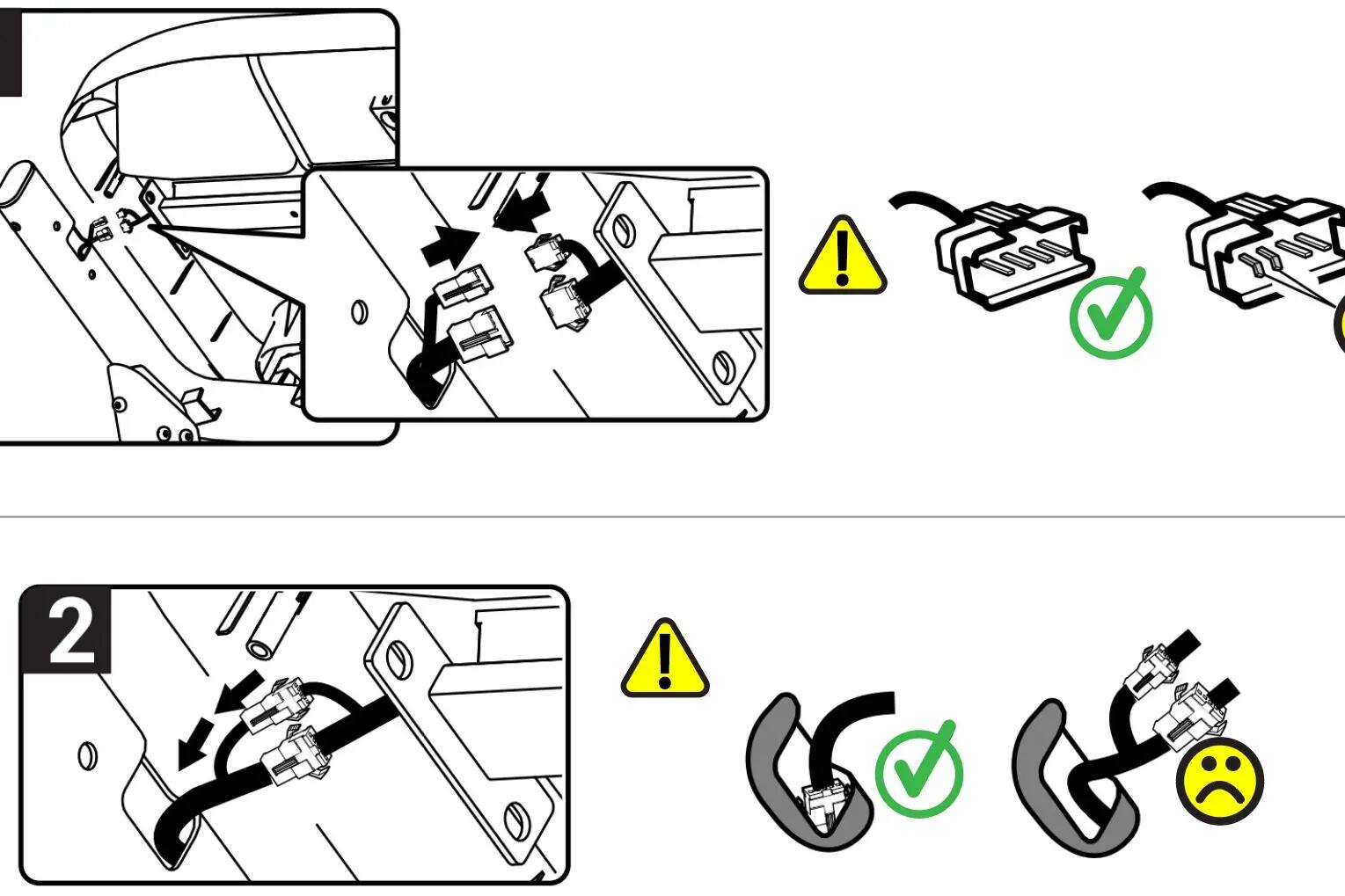

I'm getting an e1 error code

Check that the treadmill is connected as shown in step 5 of the instructions.

Check whether there is a bent pin or a cut wire.

e15
I'm getting an e15 error code

Check that the treadmill is connected as shown in step 5 of the instructions.

Check whether there is a bent pin or a cut wire.

T540B ERROR E1-E15
Your console isn't showing the right speed

Before you start, make sure your treadmill is plugged in to the mains.

1. Press the "STOP" button.

2. Hold down the "STOP" button down and insert the "SAFETY KEY".

3. The units being used are displayed in the bottom right corner:      UNIT MI   or  UNIT Km.

4. Press "+" to change the unit.

5. Press "STOP" to confirm the changes.

6. You're now ready to use your treadmill.



T540C
Your treadmill doesn't switch on

1. Check that the power cord is plugged into a working mains socket (to check if the wall socket is working, plugin a lamp or other electrical device).

2. Check that the other end of the power cord is connected to your treadmill.

3. Check that the main switch near the power cord is set to I.

4. Check that the safety key is pushed fully home in the console.

T540C
Your treadmill is making a noise

1. Shoes:

=> The noise you can hear could be the sound of your shoes on the running belt. To check that the noise isn't coming from your shoes, please see the video below



2. The screws are loose:

 => Tighten all of the screws.



3. The running belt is wonky:

=> Select the "CENTRING THE RUNNING BELT" tab in the MAINTENANCE section.



4. The running belt is not lubricated:

=> Select the "RUNNING DECK LUBRICATION" tab in the MAINTENANCE section.

How do you activate/deactivate the console's beep?

When you press a button on the console, a beep notifies you that your action has been taken into account. You can deactivate this beep:

1. Access the home "GO" screen on the console by clicking the "STOP" button several times.2. Press the "+" to turn the "beep" sound on. / Press the "-" to turn the "beep" sound off.3. To exit, wait for 5 seconds until the display returns to GO.

T540C
The treadmill slows down when you step onto it

The running belt is slack

=> Select the "RUNNING BELT TENSION" tab in the MAINTENANCE section.



The treadmill switches off during use

1. If your treadmill is plugged in to an extension cable, unplug it and plug it directly into a wall socket.

2. The problem could be caused by the power cord. In this case, please see the FAQ on ""YOUR TREADMILL IS NOT SWITCHING ON""

Trouble detecting heart rate with the handpulse sensors

Slightly dampen your hands and place both hands on the sensors.



T540C
The words "service" appear on the screen

Every 200 km, the word "service" flashes up on the "GO" home screen. This message reminds you that your equipment is due for servicing.



To delete the flashing message:Access the start/home "GO" screen on the console by clicking the "STOP button several times"

Hold the "STOP" and "^" buttons down for a few seconds.



*To find out how to care for your equipment, please refer to the" SERVICING YOUR PRODUCT section".

How to remove the "SERVICE" message from the console

You've got a problem with your cardio fitness app

Is your equipment working properly but you're having a problem with the application? Click the "MY APP" button for troubleshooting tips.

T540C

Not able to fix your problem or find the right answer?

PLEASE CONTACT ONE OF OUR TECHNICIANS.

Centring the running belt

You will need the 6mm Allen key (BTR) that came with your treadmill:

1.  Start your treadmill at a low speed (4km/h).2.  Insert the key into the screw on the side where the running belt is off-centre.3. Turn it a quarter turn clockwise (wait 30 seconds between each quarter turn) until the belt is back in the correct position.



Running belt tension

The running belt is a wearing part that becomes loose over time. Re-tighten it as soon it begins to go slack (sliding sensation, jerky motion).



1&2. Turn the two adjustment screws a half turn clockwise (repeat if necessary, but make sure you don't over-tighten the belt).



3. The belt is properly tightened if you can lift the edges 3 to 5 cm on each side.

Running deck lubrication

It's important to do this regularly (every 200 KM of use) to keep your treadmill working as long as possible.  1 & 2. Simply spray twice underneath the running belt on the right and on the left.  3. Then set your treadmill off at 5 km/h for 5 minutes, without standing on it.

Preventative maintenance

1. Check the motor and the drive belt every 600 hours of use or every 3,600km*2. Replace the running belt every 500 hours of use or every 3,000km*3. Replace the running deck every 700 hours of use or every 4,200km*4. Replace the rollers every 600 hours of use or every 3,600km*



*To find out the number of hours of use or the total distance run, go to the FAQ and read " HOW TO FIND OUT THE DISTANCE RUN AND HOURS OF USE ON YOUR TREADMILL" in the SETTING UP AND USING YOUR PRODUCT section

Regular maintenance

Regular maintenance is necessary to preserve the performance of your appliance and extend its service life. To get rid of any annoying noises coming from your treadmill, remember to:

                       Tighten the screws and bolts once a month.

                       Lubricate the running belt after 200 hours of use.

                       Place a standard floor mat (Domyos Training Mat) under your treadmill.



CLEANING AFTER EACH USE:

                      Turn off and unplug your treadmill.

                      Apply a small amount of gentle universal cleaner to a pure cotton cloth. Do not spray the cleaner directly onto the treadmill and do not use ammonia or acid cleaners.

                      Wipe the console and screens.

                      Remove any dust and stains on the ramps, uprights, footrests, frame and motor hood. Remember to also wipe the platform alongside the running belt. Do not clean under the running belt.

The "go service" message appears on your screen
T540C
8542696

Order spare parts for this product

DO YOU NEED SPARE PARTS FOR YOUR T540A TREADMILL?

Instructions

  • T540C

    Need the product's user guide? Click to download.

T540C

Composition / advice

COMPOSITION

Frame: 100% steel, 0% polystyrene (PS) // Hood: 75% polystyrene (PS), 25% polyvinyl chloride (phthalate-free) // Deck: 100% wood

// Packaging: 90% cellulose, 10% polystyrene (PS)

USE RESTRICTION

Max user weight: 130kg. This treadmill is designed to be used up to 5 hours per week.

CONNECTIVITY

Compatible with the Domyos Econnected app, which is available on tablets and smartphones that connect to your treadmill via Bluetooth.~The USB port lets you keep your tablet or smartphone charged and the audio jack lets you play music on 2x3W speakers

USEFUL INFO

1. The power consumption of the treadmill is 820 watts for a 75 kg user at 16 km/h.~2. The sound pressure level measured 1m above the machine's surface and 1.6m above the ground is 70 dBa (at the max speed of 16km/h, with no runner).~3. The noise level emitted under unladen operating conditions is lower than that emitted during loaded operation.~4. The running surface is 45cm x 130cm.

T540C

Our commitments

Domyos guarantees this product under normal conditions of use for five years for the structure and two years for other parts and labour from the date of purchase shown on the receipt.
