Van Rysel Sram Rival AXS Power

REF: 8853482, 8916026

Van Rysel NCR CF All-Road Sram AXS

2023

Welcome to the customer support page for your NCR CF All-Road Sram AXS.

Here are our top tips for using, maintaining and repairing your bike, plus a selection of spare parts.

1 - UNBOXING

WARNING: How to install your bike on a workshop stand

Do not place the clamps (of the workshop stand or bike carrier) on the top tube (the tube that connects the saddle to the headset). Excessive pressure on this tube can weaken or even crack it.

You can place your clamp on the seat post.

WARNING: How to transport your bike properly on a bike carrier

When transporting your bike on a carrier, make sure you don't pinch the frame and seatpost with clamp systems, as this could weaken and crack the components.

WARNING: How to transport a dismantled bike

If you are dismantling the wheels, we recommend that you remove the axles and screw them loosely back onto the fork and rear triangle, and avoid placing any weight (bags, suitcases) on the rear stays.Otherwise, you risk weakening and cracking the frame.

Also remember to position the spacers between the brake pads to avoid damaging or upsetting your braking system, and place the chain on the large front chainring guard.

Contents of the unboxing box

Your bike comes with a box that contains everything you need to assemble your bike.

2 - FIRST USE

To help you get to grips with your new ride, here are some tips on using your NCR for the first time:

  • 2. FIRST USE

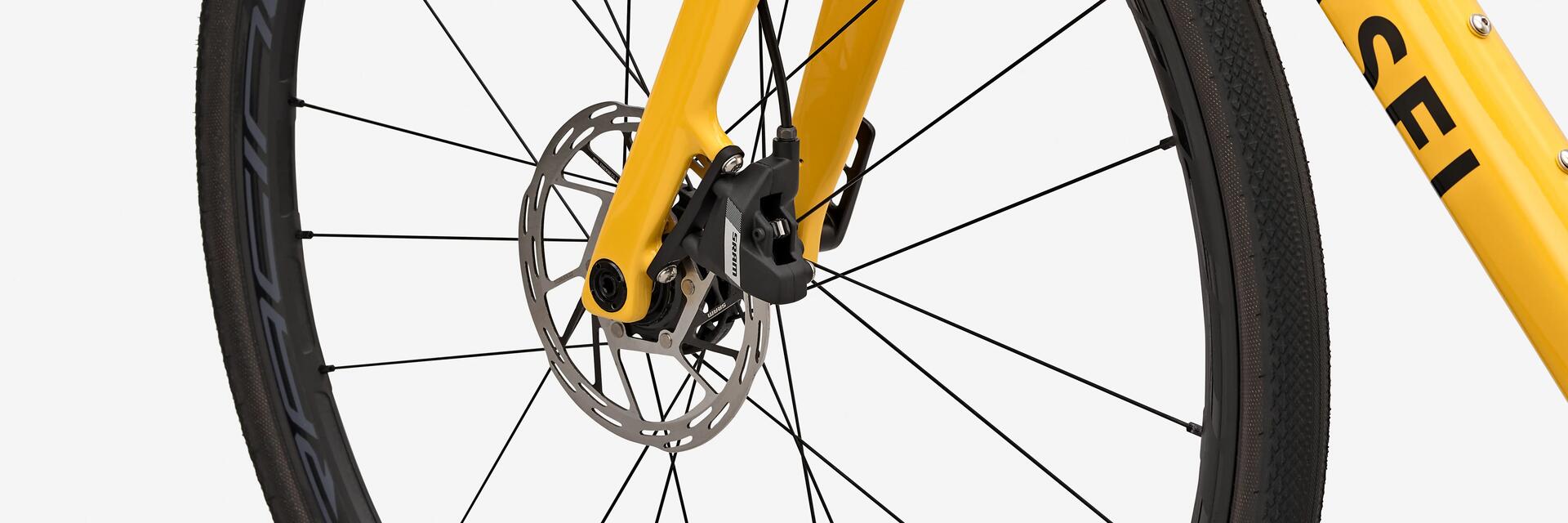

    BEDDING IN THE BRAKE PADS

    Running in the brake pads is vital when using a bike for the first time.

    To run them in properly, we recommend you brake 20 to 30 times at over 25 km/h, without locking the wheel.Also make sure you don't stop between braking to avoid "freezing" and thus sticking the pads to your discs.

  • VAN RYSEL E-EDR AF: user guide, repairs

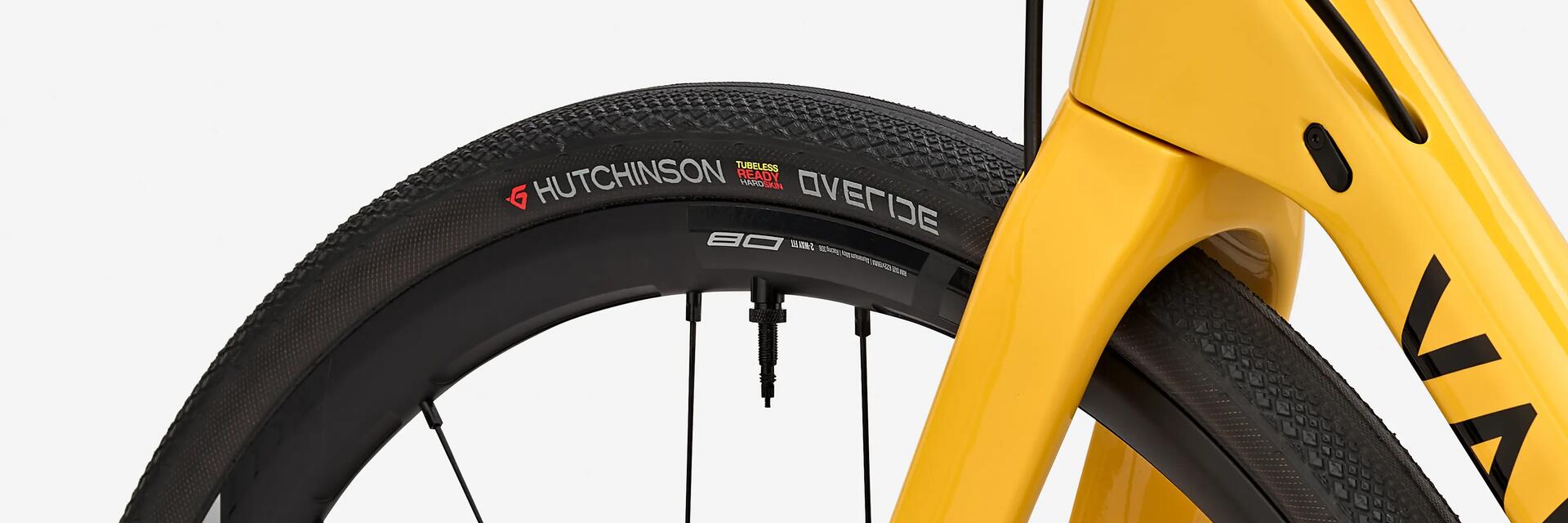

    TYRE PRESSURE

    The first time you take your bike out, choose the tyre pressure carefully, taking into account the weather conditions and your weight. Here are our recommendations for 28 mm tyres:
    - Front: 5.5 bar (80 psi)
    - Rear: 6 bar (90 psi)

  • 2. FIRST USE

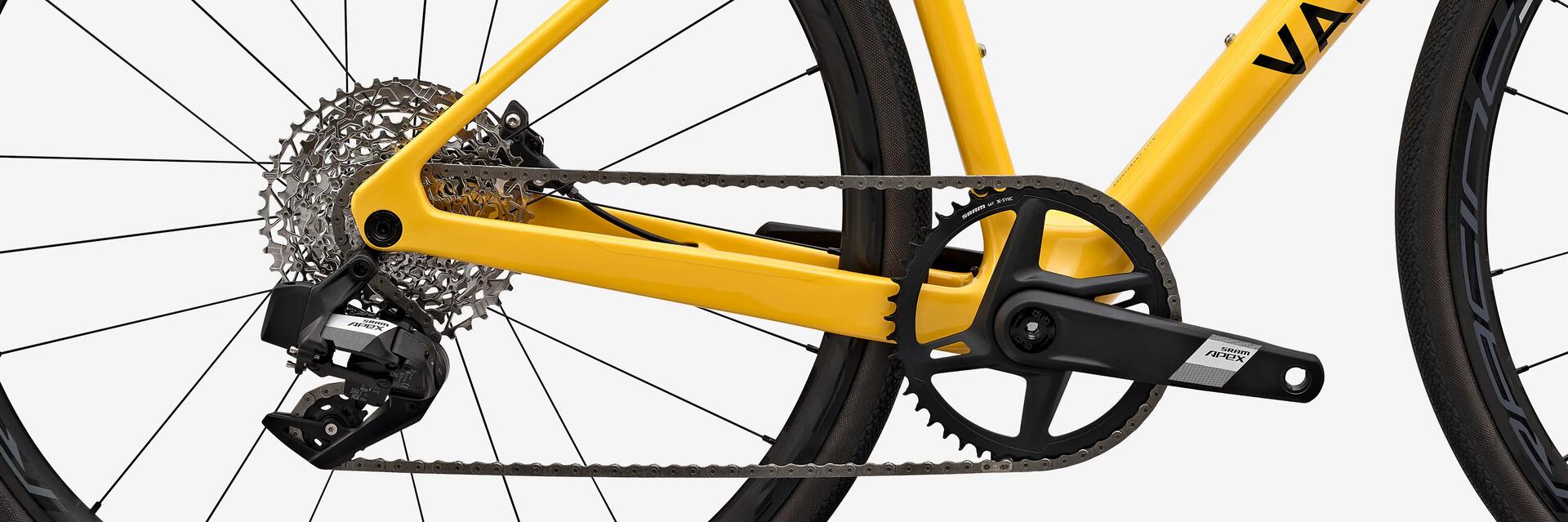

    USING THE SRAM AXS GROUPSET

    To fully understand and use your Sram AXS groupset, please watch the video below.

RECHARGING YOUR DRIVE TRAIN BATTERIES

Your bike comes with everything you need to replace your derailleurs.

Follow the instructions in the video:

VAN RYSEL NCR CF FRAME:
XS/S/M/L/XL

Van Rysel RCR: user guide, repairs

4. MAINTENANCE

Maintaining your bike is essential if you want to expand its lifecycle. That starts with regularly cleaning your bike, the frame and drive train.

  • Step 1

    Place a cloth on top of the brake discs to prevent them from being covered with degreaser.Apply a degreaser to your drive train.

  • Step 2

    Clean your bike, especially your drive train, with the aid of a brush. Be careful not to apply the brush to sensitive parts of your bike.

  • Step 3

    Before lubricating your chain, make sure your bike is completely dry.

Changing your brake pads

The following are all signs that you might need to change your brake pads:

- You don't have the same responsiveness as when you bought your NCR and there's a lack of grip,
- Your bike makes a strange noise when you brake sharply,
- The thickness of the pad is below 0.5 mm.

Changing your brake discs

Although disc brakes are designed to wear out the brake pads and not the disc, the disc will end up wearing out through use over time.

It can be dangerous to ride with an overly worn disc; it can give out if you brake suddenly or intensely.

The maximum wear value of the thickness of the disc is around 10% of its original value. We strongly recommend that you change it when the wear exceeds that figure.

Install the brake disc with the shoulder side facing the hub gears.

Install the locking mechanism with nut (not included) on the brake disc, screw it into the hub and then tighten to the torque recommended by the locking mechanism manufacturer.If you are using a Zipp locking ring, torque it to 40 N-m using a 44 mm diameter 16-slot external bottom bracket tool.

Changing your brake discs
Changing your handlebar tape

The tape on your handlebar will wear over time and you'll need to change it occasionally.

Follow our tuto to change it:

Drive train wear

Your bike's wear parts all have a shelf life. If you don't replace them when necessary, it might cause other parts to wear more quickly or cause them to break:

- Chain: 5,000 km
- Cassette: 10,000 km
- Check the teeth on your chainrings and derailleur pulleys for wear.

CHANGING YOUR PEDALS

Are your pedals broken?

NB: please note that the screw thread on the left pedal is inverted and that the pedal thus screws on in an anti-clockwise direction. The right pedal has a standard thread.

Be sure to use the correct tool to remove your pedals as you will need to use some force to unscrew them.

If you have a Sram crankset, don't forget to fit the washer as shown in the diagram below.

CHANGING YOUR PEDALS
Replacing your headset

Please contact a Decathlon workshop or a Van Rysel certified centre to carry out the repair.

Changing your inner tube and switching to tubeless

If you suffer a puncture, watch our video tutorial to find out how to change your conventional or tubeless tyre:

Changing your rear derailleur

Watch the following video to learn how to change your rear derailleur:

Adjusting your rear derailleur

If your derailleur is no longer responding to your gear changes, you may have to replace the cables and housings on the derailleur.

Watch our video tutorial to find out how:

CHANGING YOUR DERAILLEUR HANGER

If your drive train is not working properly and your derailleur dropout is bent.

The following video tutorial shows you how to change it.

REPLACING THE DERAILLEUR HANGER

Changing your chain

We tell you below how to change your bike chain.

Changing your bike cassette

To find out if your cassette is worn just count the number of teeth on it. If the chain jumps or the cassette has more than 10,000 kilometres on it, it's time to change it.

Watch our video tutorial to find out how to change it:

Replacing my chainrings

Please contact a Decathlon workshop or a Van Rysel certified centre to carry out the repair.

5 - USER GUIDES

  • 8. INSTRUCTIONS

    Bike instructions

    VAN RYSEL RCR and RCR PRO

  • 8. INSTRUCTIONS

    Drive train

    SRAM AXS POWER

6 - APPLICATION

Sram has an app that gives you access to more information about the drive train of your AXS.

You can adjust your derailleurs, access the level of your battery and many other features.

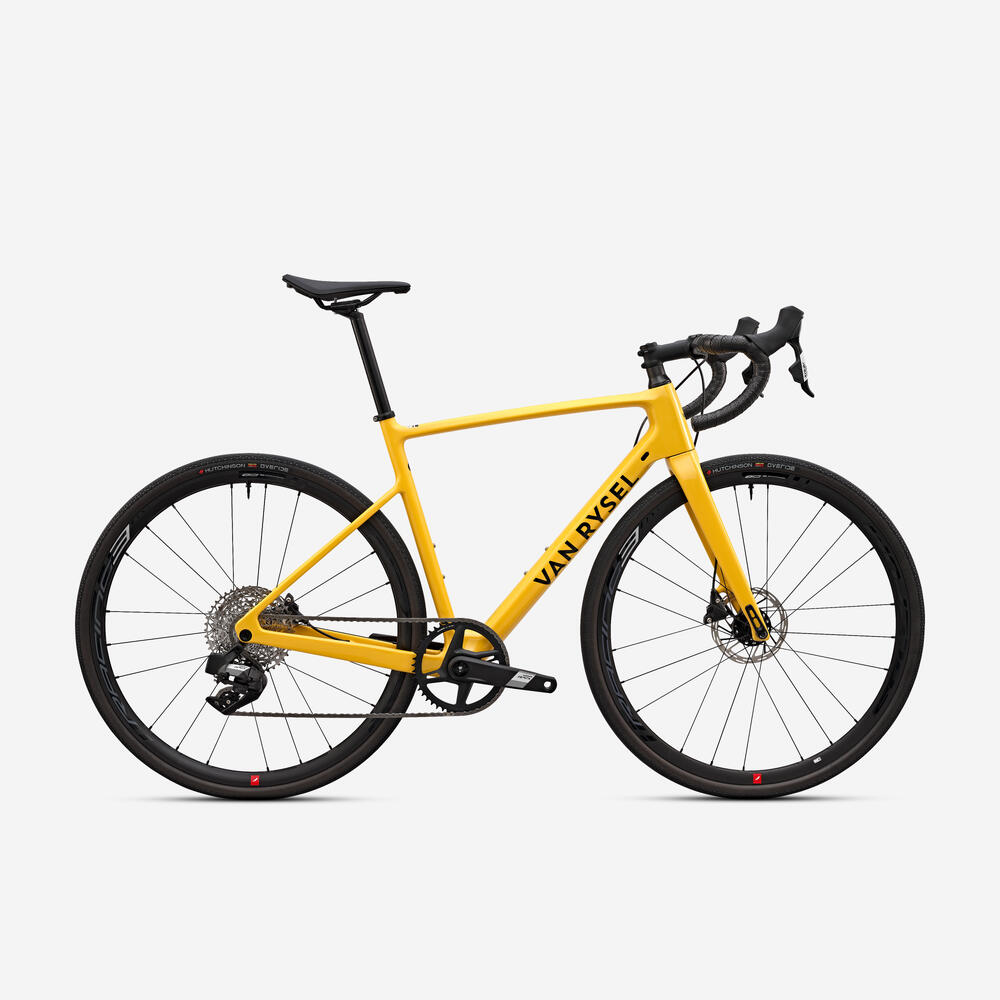

VAN RYSEL EDR CF DB SHIMANO 105 (2021)

Assistance

Can't find a solution to your problem? Contact our bike mechanic and get some help.

Van Rysel RCR Sram Rival AXS Power

OUR PLEDGE

Your VAN RYSEL NCR CF bike frame comes with a 5-year warranty.

All other parts come with a 2-year warranty.
