VAN RYSEL RCR SRAM RED

REF: 8784849

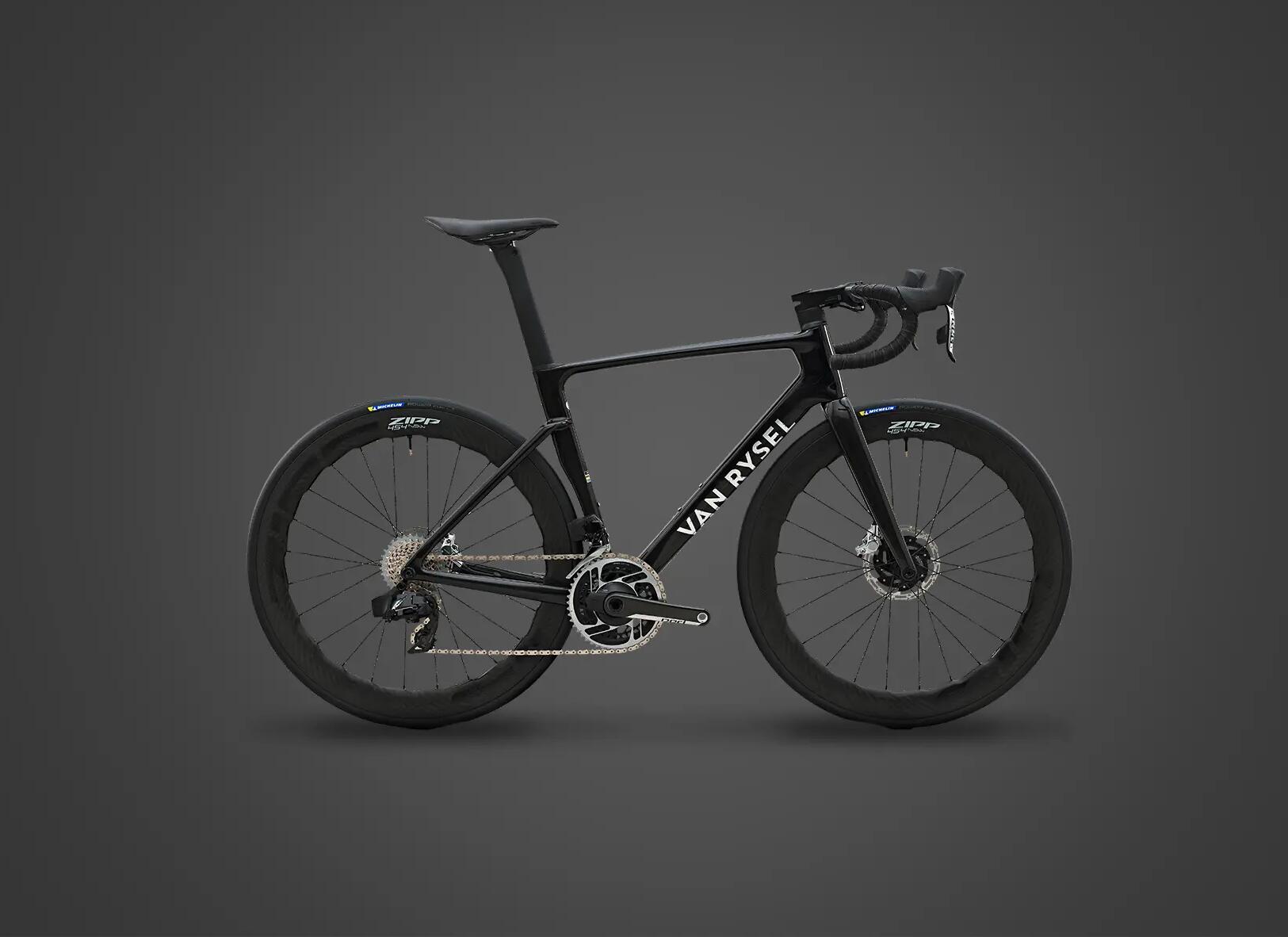

Van Rysel RCR Sram Red AXS Power

2023

Welcome to the support guide for your RCR SRAM RED AXS POWER.

This bike is made for winning. If you're a pure courier and all you care about it is winning, the RCR is made for you.

This page contains all our very best advice for using, maintaining and repairing your SRAM RED AXS POWER: user guide, servicing, repairs and spare parts.

1. UNBOXING

The RCR will be delivered to you with the handlebars unlocked in its delivery box. Here are the steps to ensure your bike is assembled correctly:

VAN RYSEL SRAM RED
VAN RYSEL FCR CF ULTEGRA DI2: user guide, repairs

Handlebar assembly

The handlebar must be adjusted to the correct tightening torques when unwrapped. To this end, you can consult the user guide available below:

1. UNBOXING

SADDLE HEIGHT

To adjust your saddle height, you can find the tightening screw in front of the RCR seatpost. You just need to raise the cap to get to it. Spanner supplied in the accessory box with your bike.

1. UNBOXING

Cycle computer mount

An RCR-specific cycle computer mount is provided with it. It has two hooks, one for the cycle computer and another for the light/action cam. Compatible with Garmin, Wahoo, Bryton.

2. FIRST USE

To help you get to grips with your new ride, here are some tips on using your RCR for the first time:

  • VAN RYSEL E-EDR AF: user guide, repairs

    TYRE PRESSURE

    The first time you take your bike out, choose the tyre pressure carefully, taking into account the weather conditions and your weight.

  • 2. FIRST USE

    BEDDING IN THE BRAKE PADS

    Running in the brake pads is vital when using a bike for the first time.

    To run them in properly, we recommend you brake 20 to 30 times at over 25 km/h, without locking the wheel.Also make sure you don't stop between braking to avoid "freezing" and thus sticking the pads to your discs.

  • 2. FIRST USE

    TORQUE SETTINGS

    Please respect the torque settings, especially the settings for the stem/handlebars (please see the user guide), which can cause a fall if they are not tightened properly.

    To set your position properly on the bike, carry a set of Allen keys with you on your rides.

Van Rysel RCR Sram Force Power 12S:user guide, repairs

3 / Adjusting the position on the RCR

Steering position

To adjust your position, you can remove the "spacers" located under the stem. However, they cannot be placed on top of the stem, so the steerer tube needs to be cut accordingly.

Van Rysel RCR Sram Force Power 12S:user guide, repairs

Seatpost

The seat post has been specially designed for the RCR and therefore can be used only for this bike.

Be sure to observe the tightening torque of 6 nm for correct installation.

In case of a problem with this, we encourage you to contact your nearest Decathlon workshop.

3 / USING YOUR ELECTRIC DRIVE TRAIN

VAN RYSEL FCR CF ULTEGRA DI2
VAN RYSEL NCR CF TIAGRA: user guide, repairs

GEAR SETTINGS

Setting up gears for an electric derailleur differs from a mechanical derailleur.

To find out how to do this, click on the following link:

LEARN
GO TUBELESS WITH YOUR NCR

Battery charger

To replace your gears, derailleurs and levers use a battery. Each derailleur has a battery that you can recharge using the charging station supplied with the bike.

GO TUBELESS WITH YOUR NCR

APPLICATION

Sram has an app that gives you access to more information about the drive train of your AXS.

You can adjust your derailleurs, access the level of your battery and many other features.

Get the application

4. MAINTENANCE

Maintaining your bike is essential if you want to expand its lifecycle. That starts with regularly cleaning your bike, the frame and drive train.

  • VAN RYSEL E-EDR AF: user guide, repairs

    Step 1

    Apply a degreaser to your drive train. Place a cloth on top of the brake discs to prevent them from being covered with degreaser.

  • 4. MAINTENANCE

    Step 2

    Clean your drive train with the aid of a brush. Apply a suitable cleaning product to your frame.

  • 4. MAINTENANCE

    Step 3

    Drying your bike and lubricating your drive train.

Essential tools for your workshop.

To service your RCR correctly, you need to have the right tools.

Essential tools
Essential tools for your workshop.
Selecting the right tyre for your RCR

The tyre is the only element in contact with the ground. To minimise the risk of it losing grip, it's essential to choose the right type of tyre, and adapt the pressure accordingly.

The RCR comes with tubeless-ready wheels.

Check out our advice here:

Choosing your tyre
Selecting the correct tyre pressure for your E-EDR
Adjusting and tightening the seatpost

To make sure your saddle is set correctly, you must make sure it is properly tightened. A loose seatpost can easily drop down when you're out and about on your bike.
If you tighten it up too much, however, you run the risk of crushing the seatpost and damaging your bike.


The best way to tighten a seatpost is to use a torque wrench. It should be tightened to 6 Nm.


NB: Do not exceed the maximum height indicated on the seatpost.

Please note that the seatpost is designed only for the RCR.

Torque wrench
Tightening the seatpost
Changing your chain

The chain is a vital part of your bike's drive train. The following are tell-tale signs that you need to change it:
- The chain starts jumping.
- The chain has been on for more than 5,000 kilometres.
- Gear changes are not smooth.

To find out more read our article:

When to change your chain
Changing your brake pads

The following are all signs that you might need to change your brake pads:

- You don't have the same responsiveness as when you bought your RCR and there's a lack of grip.
- Your bike makes a strange noise when you brake sharply.
- The thickness of the pad is below 0.5 mm.

Brake pads
When to change your brake pads
Changing your brake discs

Although disc brakes are designed to wear out the brake pads and not the disc, the disc will eventually wear out where there is heavy use.

It can be dangerous to ride with a worn brake disc. It could break when braking sharply and hard.

The maximum wear value of the thickness of the disc is around 10% of its original value. We strongly recommend you change it when the wear exceeds that figure.

Brake discs
When should you replace your discs?
Greasing the bearings on your bike

To ensure your frame lasts longer, grease the bearings and abrasive parts of your RCR bike regularly. You should be keeping a close eye on the following:

- Bottom bracket.
- Steerer tube.
- Wheel bearings.
- Seatpost.

Carbon Paste
VAN RYSEL E-EDR AF: user guide, repairs
Maintaining the RCR cockpit

The cables and housings run inside the handlebar, stem and frame. When replacing them, if they are worn out, you must ensure that you follow the same path.

Also, you can remove or add "spacers" to raise or lower your cockpit. First loosen the compression bolt on the top of the fork and then the stem side bolts. Then remove the stem/handlebar combo to add/remove your "spacers".

VAN RYSEL FCR CF ULTEGRA DI2: user guide, repairs

5. FEATURES

Van Rysel RCR CF frame:

1 colour: Black
2XS/XS/S/M/L/XL

Van Rysel RCR: user guide, repairs

6. TROUBLESHOOTING

In this section, we've listed the most common problems encountered with the RCR. To extend the life of your bike's components and avoid having to work on them, we recommend the following:

  • VAN RYSEL E-EDR AF: user guide, repairs

    MAINTAINING/CLEANING YOUR BIKE

    To extend the life cycle of every part on your bike and its drive train, you must clean them regularly.

    Please refer to the section above to find out what to do.

  • 3. TROUBLESHOOTING

    WEAR

    Your bike's wear parts all have a shelf life. If you don't replace them when necessary, it might cause other parts to wear more quickly or cause them to break:
    - Chain: 5,000 km
    - Cassette: 10,000 km
    - Check the teeth on your chainrings and derailleur pulleys for wear.

  • 3. TROUBLESHOOTING

    TORQUE SETTINGS

    To ensure you don't put too much strain on the various parts of your RCR, bike, please respect the torque settings that we recommend.

    If the torque settings are too high, they can cause parts to break, increasing the risk of you falling.

CHANGING YOUR PEDALS

Are your pedals broken?

NB: please note that the screw thread on the left pedal is inverted and that the pedal thus screws on in an anti-clockwise direction. The right pedal has a standard thread.

Make sure to use the correct tool to remove your pedals as you will need to use some force to unscrew them.

Pedals
CHANGING YOUR PEDALS
Changing your tyre

If you suffer a puncture, watch our video tutorial to find out how to change your conventional or tubeless tyre:

Changing your inner tube
CHANGING YOUR HANDLEBAR TAPE

The tape on your handlebar will wear over time and you'll need to change it occasionally.

Follow our tuto to change it:

Your bike isn't braking as well as it used to

There are several things you can do if your brakes aren't working as well as they used to:

- Use a degreaser to clean the disc.

- Check the brake pads for wear.

- Check the tension of the cable.

If your brake pads are worn, you must change them. Watch the following video tutorial.

Bicycle brake pads
YOUR DISC BRAKES ARE MAKING A NOISE

If your disc is making a noise:

- Check that your wheel is properly centred. To do this, loosen the wheel and tighten it up again.

- Check that the brake calliper is in the right position.

- Check the brake pads for wear.

- Check the tension of your brake cables.

YOUR DISC BRAKES ARE MAKING A NOISE
Your derailleur isn't able to shift gears any more

If your derailleur is no longer responding to your gear changes, you may have to replace the cables and housings on the derailleur.

Watch our video tutorial to find out how:

Derailleur cables and housings
YOUR GEARS ARE SKIPPING

If the gears are skipping, you should check the following:

- The wear on your drive train.

- The tension of the cables.

If the problem lies elsewhere, then you should adjust your derailleur.

THE DERAILLEUR HANGER IS BROKEN OR BENT

If the drive train is not working properly and the derailleur hanger is twisted.

Take it to your local DECATHLON store and have them change it.

Store locator
CHANGING YOUR CHAIN

We tell you below how to change your bike chain.

Changing your chain
Changing your bike cassette

To find out if your cassette is worn just count the number of teeth on it. If the chain jumps or the cassette has more than 10,000 kilometres on it, it's time to change it.

Watch our video tutorial to find out how to change it:

Road bike cassettes
HOW TO CHANGE YOUR CHAINRINGS

Are your chainrings worn? Do you want to change your gear ratio?

Watch our tutorial video to find out how to do it.

How to change your rear derailleur

Watch the following video to learn how to change your rear derailleur:

Rear derailleurs

7. SPARE PARTS

VAN RYSEL EDR CF DB SHIMANO 105 (2021)

Assistance

Can't find a solution to your problem? Contact our bike mechanic and get some help.

8. INSTRUCTIONS

  • 8. INSTRUCTIONS

    Bike instructions

    Van Rysel RCR Sram Red AXS Power

  • 8. INSTRUCTIONS

    Drive train

    SRAM RED AXS POWER

  • 8. INSTRUCTIONS

    Wheels

    ZIPP 454 NSW

VAN RYSEL E-EDR AF: user guide, repairs

OUR PLEDGE

VAN RYSEL offers a 5-year warranty on the frame of your RCR SRAM RED AXS.

All other parts have a 2-year warranty.
