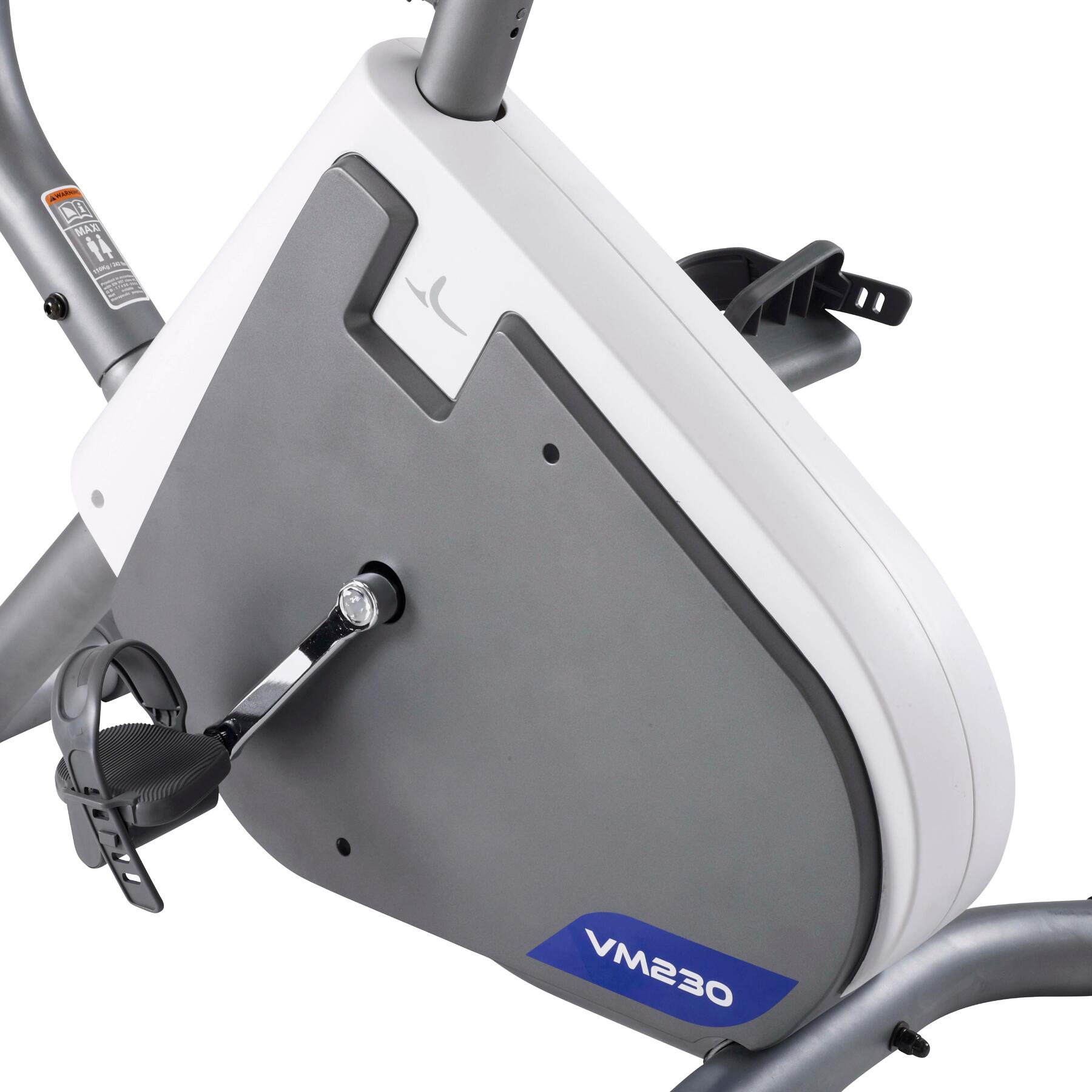

VM 230

REF: 8289196

VM 230

2013

Year sold: 2013



Designed to keep fit. The exercise bike is the perfect ally to get back into sports and to keep fit!



ITS BENEFITS:

SMOOTH PEDALLING: Smooth pedalling which guarantees joint comfort (4 kg flywheel)

COACHING: 5 functions (calories, distance, time, speed, heart rate monitor)

USER COMFORT: Ergonomic handlebar and toe clips, for better support

HANDLING: Castors for easy moving.

Problems

Is your equipment properly set up but you're still having an issue when using it? See all our FAQs here.

The console does not display the correct units of measure

1. Check that the switch on the back of the console is on "Km" to display kilometres or "Mi" to display miles.

2. Make sure the switch at the back of the console is on "VM" for a magnetic bike and on "VE" for a cross trainer.

3. Make sure the switch at the back of the RO/ST console is positioned at the centre.

4. Press "RESET" to confirm the change





VM 230
The console stays at zero

1. Check that the plugs are correctly attached at the back of the console.

2. Where the stem and frame connect, check that everything is well connected.





VM 230
Parts diagram
VM 230
The console is showing "err"

1. Make sure the switch at the back of the RO-ST console is positioned at the centre.

2. Press "RESET" to confirm the change





VM 230
There's a problem with the resistance

1. Unscrew the handlebar support tube and check that the cable is properly connected.

2. Ensure that the black cover on the lower part of the cable has been removed.



VM 230
The bike makes a noise

1. Tighten all visible screws.

2. Check the stabilising pads



VM 230
The console does not turn on

Your bike works with batteries:

1. Make sure the batteries are in the correct +/- position.

2. If the issue persists, start again using new batteries.





VM 230
Trouble getting a heart rate reading

1. Make sure the cables coming out from the handlebar are correctly plugged in.

2. Slightly dampen your hands and place both hands on the sensors.



VM 230
You can't mount the pedals

 The screws for the right (R) and left (L) pedals turn in opposite directions:

R= clockwise

L= anti-clockwise



VM 230
There's a clicking noise with each turn of the pedals

Unscrew the pedals by one turn, then screw them back on very tightly.

The screws for the right (R) and left (L) pedals turn in opposite directions.

VM 230
VM 230

You weren't able to fix your problem or didn't find the answer to your question?

PLEASE CONTACT OUR TECHNICIANS.

Servicing your product

It takes care of you, so you should do the same for it. Regular maintenance is necessary to preserve the performance of your equipment and extend its service life.

Maintenance instructions

1. Unplug the adapter after each use.

2. Clean with a damp cloth (moistened with water) after every use.

3. Regularly check the stability of your bike as well as the tightness of the screws according to the user guide.

Storage tips

Do not leave in a damp place or outdoors.







Use restrictions

For home use only.









8289196

Order spare parts for this product

NEED SPARE PARTS FOR YOUR EXERCISE BIKE?

Instructions

  • VM 230

    Need the product's user guide? Click to download.

VM 230

Our engagements

DOMYOS guarantees this product under normal use conditions, 5 years for the structure, 2 for other parts and labour as from date of purchase, as shown on receipt.
