VM E SEAT

REF: 8372431

VM E SEAT

2016

Year sold: 2016

Designed for keeping fit while supporting your back (regular use).

Recumbent exercise bikes are a perfect and safe way to keep fit, lose weight, or for physio exercises. With the "E-CONNECTED*" app, you can have your own coach at home.

ITS BENEFITS:

SMOOTH PEDALLING: 6 kg flywheel

COACHING: 6 functions, 9 programmes~Customised coaching with the E-CONNECTED app

COMFORT WHEN SEATED: Sitting position. Ergonomic seat made from breathable material for optimum comfort

HANDLING: Castors for easy moving

Problems

Is your equipment properly set up but you're still having an issue when using it? See all our FAQs here.

The console does not turn on

1. Check that the plugs are correctly attached at the back of the console.

2. Check that the adapter is correctly plugged into the bike, that it is connected to the power, and that your plug works (to check that your wall outlet is functioning, plug in a lamp or another electronic device).

VM E SEAT
The console does not display the correct units of measure

By default, your console will give you distance and speed in km and km/h.

To change the units:

1. Turn off the console.

2. Press the central "OK" button for three seconds until you see KM or MI on the screen.

3. Select the unit using the "+/-" buttons.

4. Validate your choice by pressing the central "OK" button; the console will automatically display the home screen

VM E SEAT
The bike is not stable

If the bike is unstable during use, turn one or both of the wheels on either side of the back foot until the bike is stable.



.

VM E SEAT
The bike makes a noise

Tighten all visible screws.

You can't mount the pedals

/!\The screws for the right (R) and left (L) pedals turn in opposite directions.





VM E SEAT
The pedals click during pedalling

Unscrew the pedals by one turn, then screw them back on very tightly.



VM E SEAT
Trouble getting a heart rate reading

The heart rate indicator is not blinking or is blinking inconsistently:

1. Check the position of the battery or replace it with a new one.

2. Slightly dampen the heart rate belt where it is in contact with your skin.

3. Ensure that the belt is against your skin and not over your shirt.



VM E SEAT

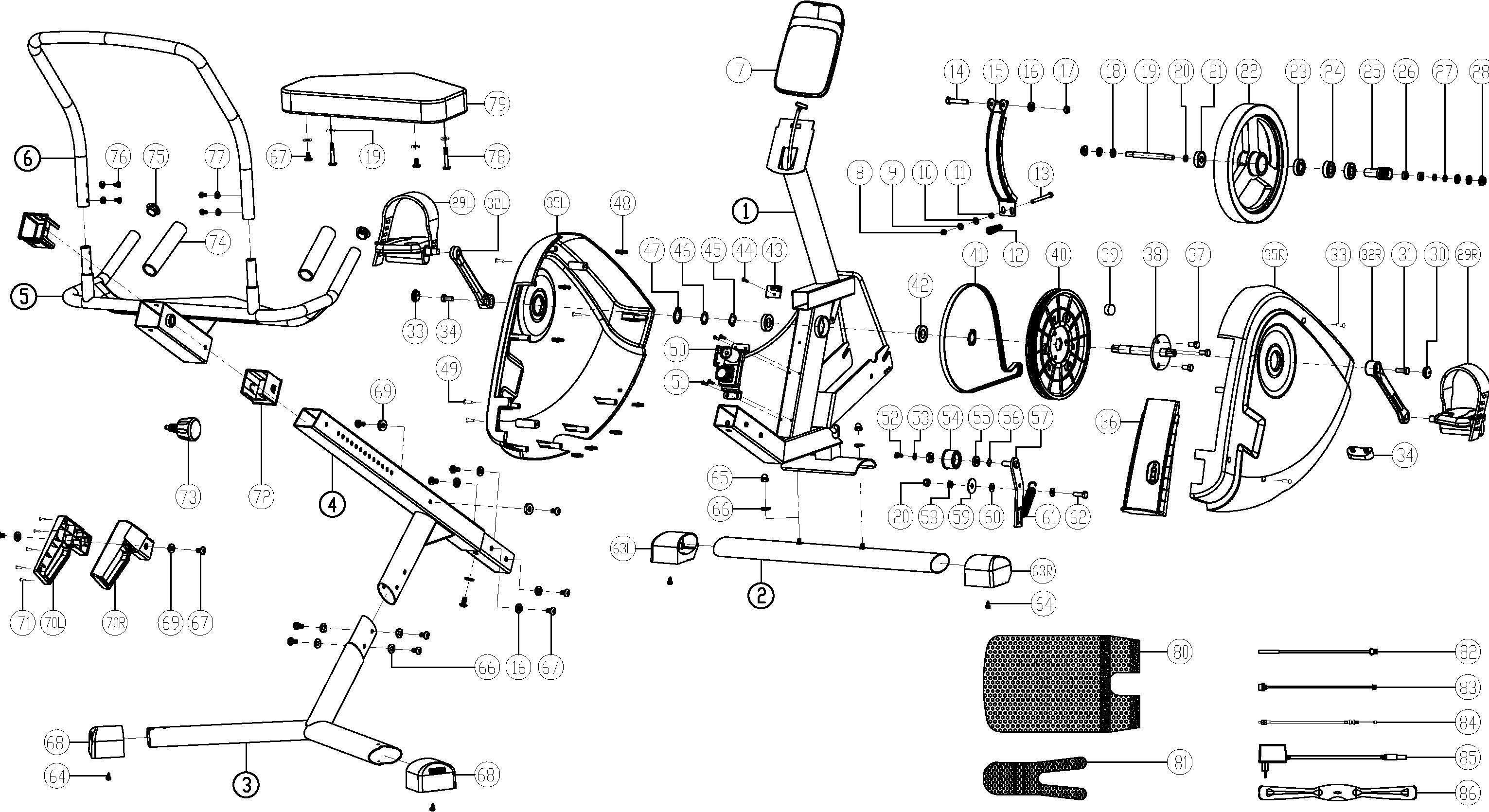

Parts diagram

-

exploded view e seat
There's a problem with your cardio fitness app

Is your equipment working properly but you're having a problem with the app? Click the "MY APP" button for troubleshooting tips.

There is an e2 or e3 code on the console

1. Disconnect the device's electrical transformer (leave the other part plugged into the mains)

2. Wait 5 seconds

3. Plug the transformer back into the device

4. Repeat this process 5 times

Plug in your bike

-

connection
VM E SEAT

You weren't able to fix your problem or didn't find the answer to your question? please contact our technicians.

Servicing your product

It takes care of you, so you should do the same for it. Regular maintenance is necessary to preserve the performance of your equipment and extend its service life.

Maintenance instructions

1. Unplug the adapter after each use.

2. Clean with a damp cloth (moistened with water) after every use.

3. Regularly check the stability of your bike as well as the tightness of the screws according to the user guide.

Storage tips

Do not leave in a damp place or outdoors.







Use restrictions

For home use only.









VM E SEAT

Order spare parts for this product

NEED SPARE PARTS FOR YOUR EXERCISE BIKE?

Instructions

  • VM E SEAT

    Need the product's user guide? Click to download.

VM E SEAT

Our engagements

DOMYOS guarantees this product under normal use conditions, 5 years for the structure, 2 for other parts and labour as from date of purchase, as shown on receipt.
