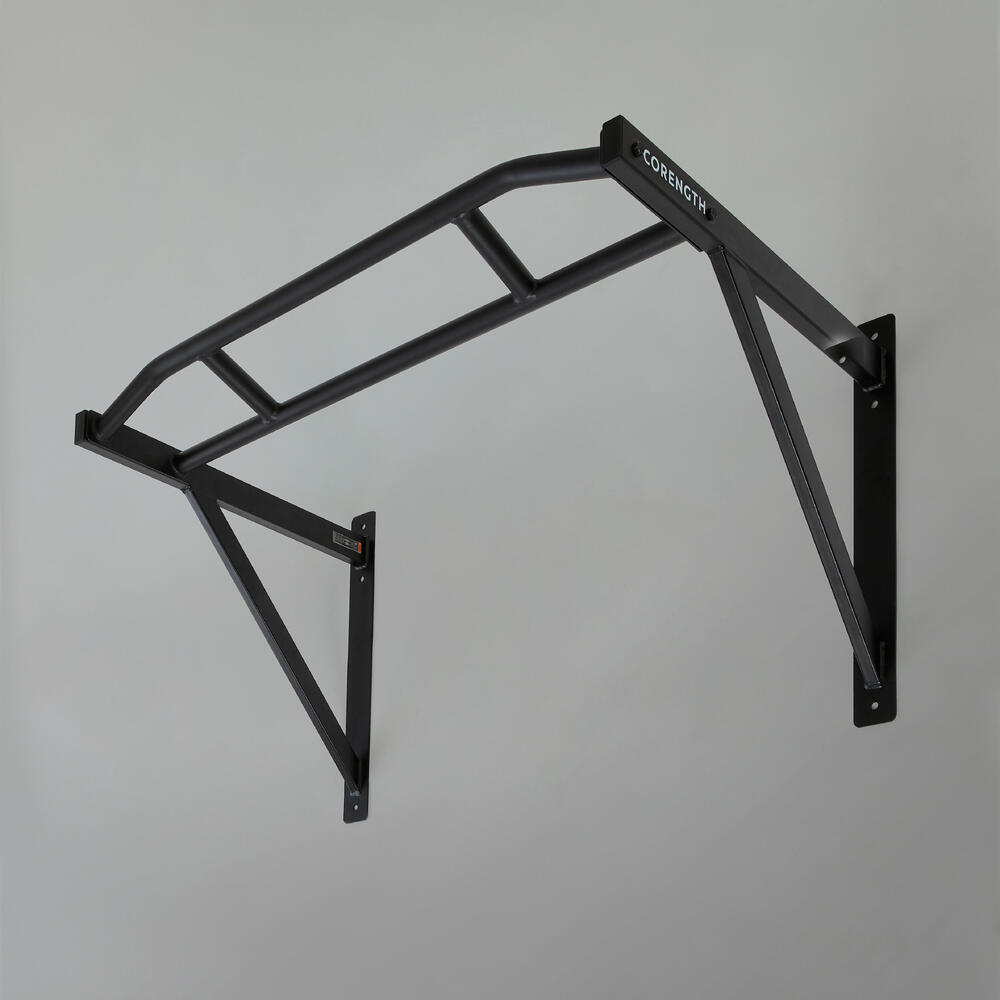

WALL PULL-UP BAR
2023
This versatile wall pull-up bar can be installed indoors or outdoors.
Perfect for weight training and dynamic pull-ups.
Find all our tips here:
Assembly video.
FAQ.
Spare parts.
Online support.
User guide and diagram.
And everything you need!
PRODUCT BENEFITS
Repairable
Find all our parts for this product.
Durability
Ultra-resistant and rigid frame.
Multi grip
Grained paint for a good grip

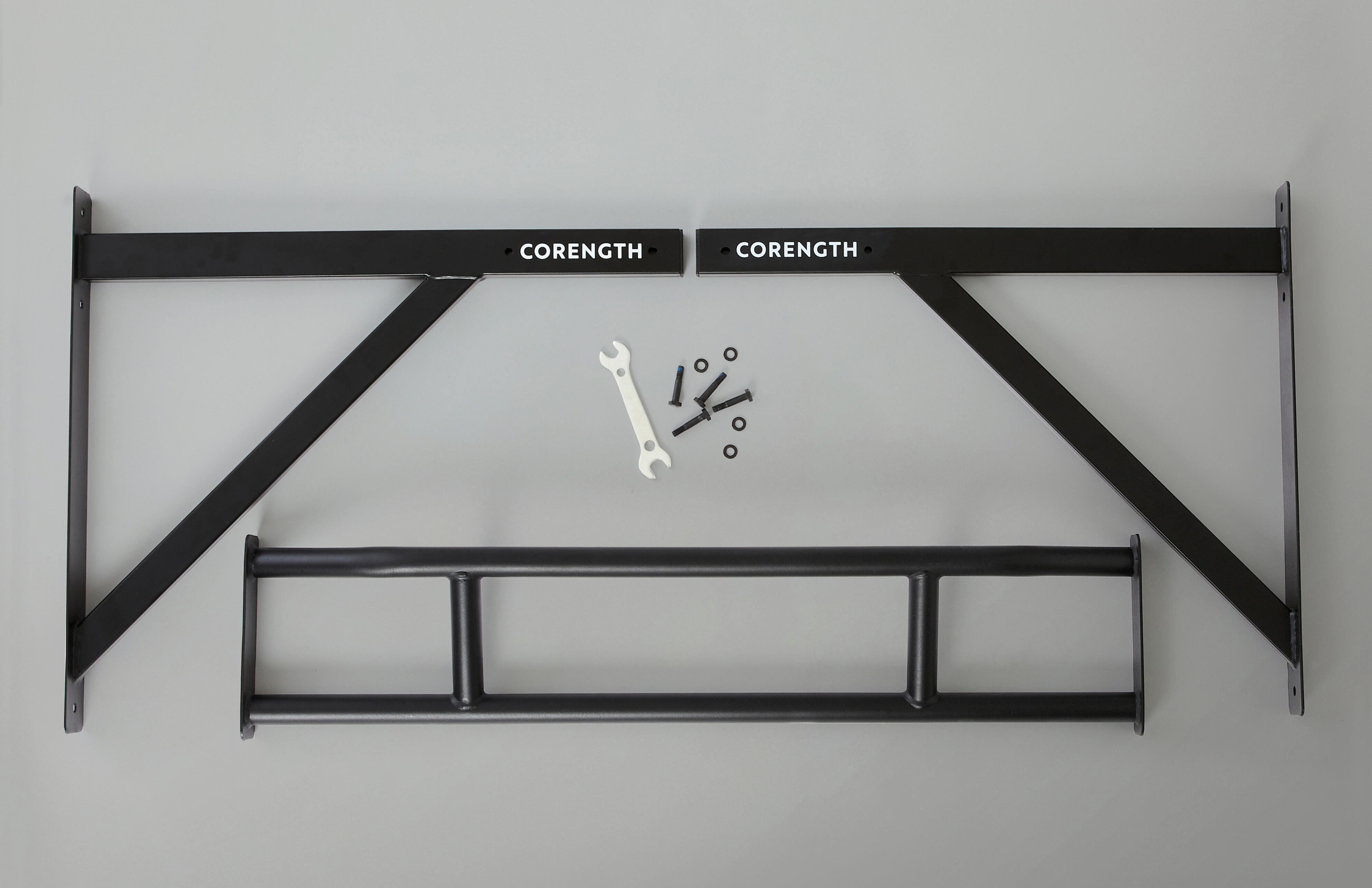

Assembling your wall pull-up bar
Follow our step-by-step guide!
Wall pull-up bar: User guide and repairs
Maintaining your wall pull-up bar
Use restrictions & tips
Ultra-resistant and rigid frame.
Max user weight: 130 kg.
This bar is designed for home use only
Indoor & outdoor use
Can be installed outdoors.
So you can work out anywhere, our pull-up bar has a special treatment so that you can attach it indoors or outdoors.
Build muscle and enjoy the view!
STORAGE ADVICE
Clean your bar with a soft cloth.
If installing outdoors, remember to protect from poor weather.
Do not leave in a pool of water.
THE ESSENTIALS
Have a problem?
We've got the solution!
Where can I install my pull-up bar?
It is essential that you install your pull-up bar on a solid wall.
Do not place on a hollow wall such as plasterboard, hollow brick, etc .....
Your wall pull-up bar can be installed indoors or outdoors.

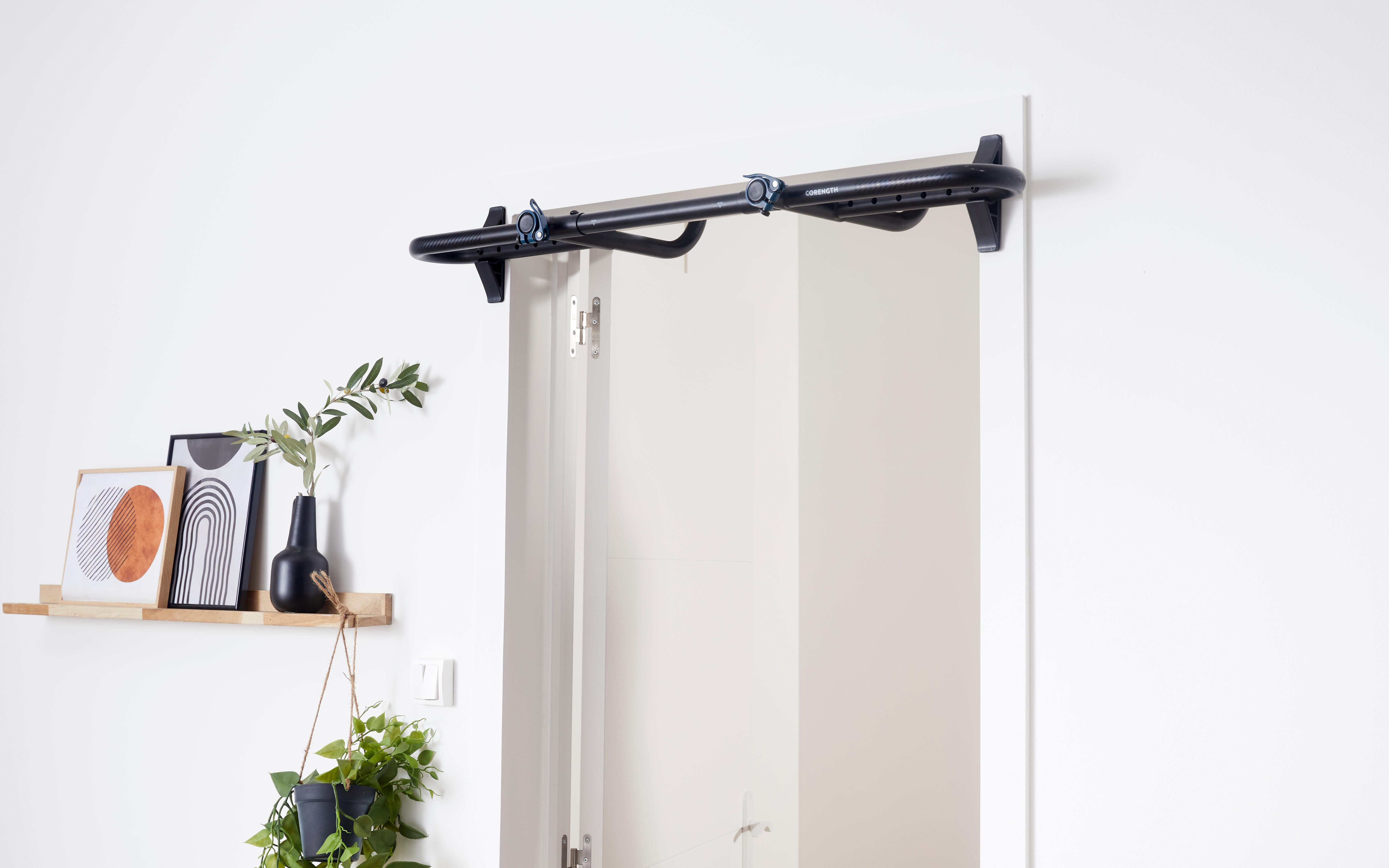

Can I install this bar on a door?
This pull-up bar can not be installed on a door or door frame.
Check out our range of pull-up bars to suit your needs here:
What is the drill diameter?
The diameter of the holes in the structure is 10 mm.
The drill diameter should be adapted to your wall.
What tool do I need to assemble my pull-up bar?
We provide the tool you need to assemble your wall pull-up bar.
It takes around 30 minutes to install.
You'll need a drill or punch to assemble your pull-up bar in a solid wall.
Depending on your mount choice, you'll need a tightening tool such as a screwdriver, spanner, or socket wrench.
If in doubt, feel free to check with your nearest home improvement store.

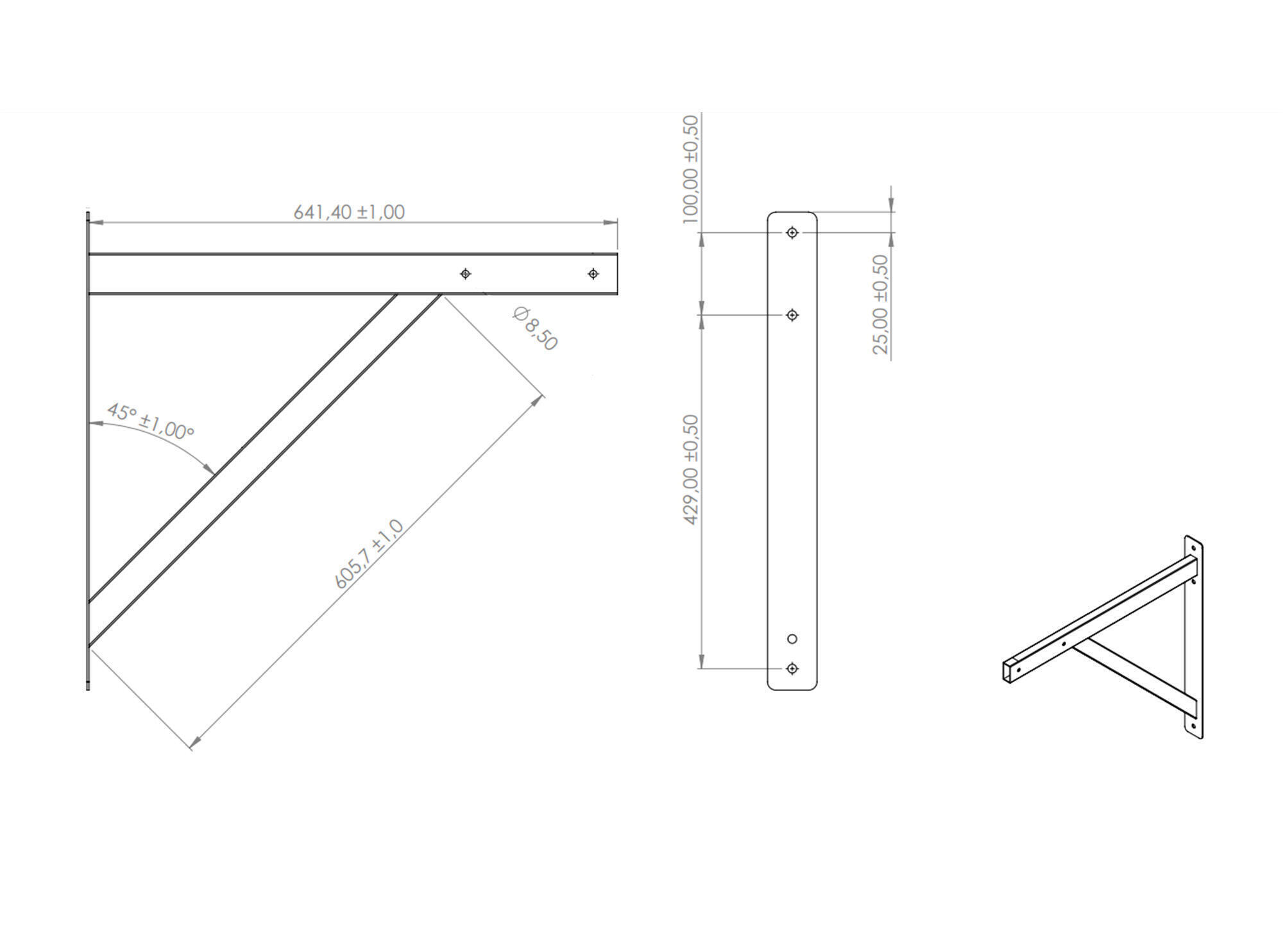

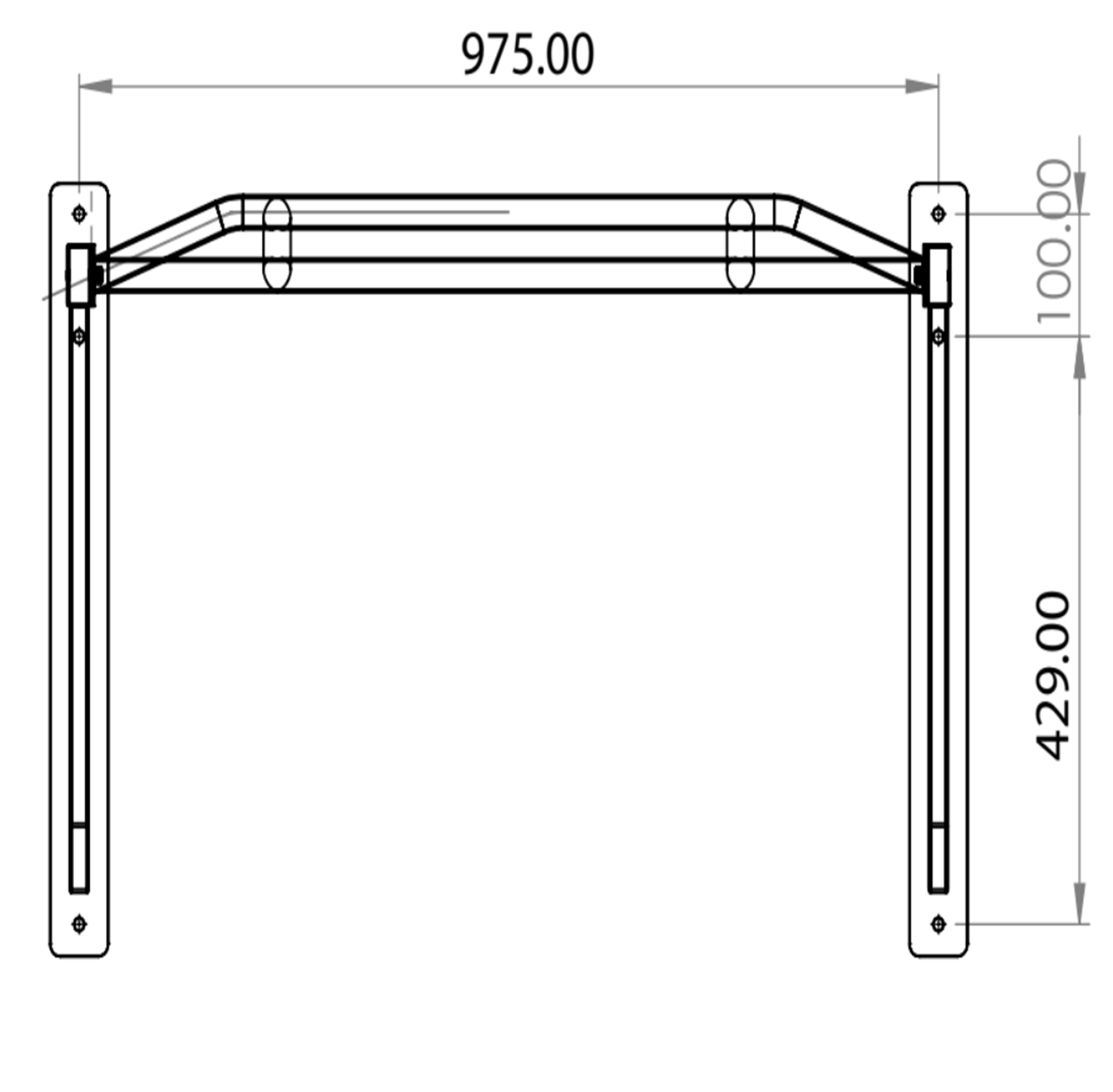

What is the spacing between the uprights?
To install your wall pull-up bar:
Horizontal space between the holes: 97.5 cm
Vertical space between the holes: 10 cm between the 2 top holes
Vertical space between the holes: 42.9 cm between the 2 bottom holes.
What mount should I use?
It is important to use the correct mounts for your wall.
If in doubt, you can check with your nearest home improvement store.
I'm having trouble installing my wall pull-up bar.
1. Steps for assembly.
=> Follow the steps for assembly as shown in our assembly video
=> Make sure to tighten enough.
2. Can't finish assembling?
=> Click request assistance below.
We can help you by email, phone or video call.
If there's a problem with any of the parts, we can send a replacement part to your home.
(Please note, this service is not available in all countries and is subject to terms and conditions.)
Or, if you wish, you can contact your local store.
MISSING PART
Please check the box carefully.
If the part is missing, please submit a support request by clicking on "REQUEST ASSISTANCE". This will put you in touch with our after-sales team
You can also consult your nearest store.
You can also find all spare parts here:
YOU EXPERIENCED A PROBLEM USING THE PRODUCT
If you have a problem while using your equipment, carefully read the instructions and our checklist above.
If the problem persists, please contact your local store or request help online using the button below.
I'd like to install my wall pull-up bar at my gym
PLEASE NOTE
Our wall pull-up bar is intended only for private home use, not for professional/public use.

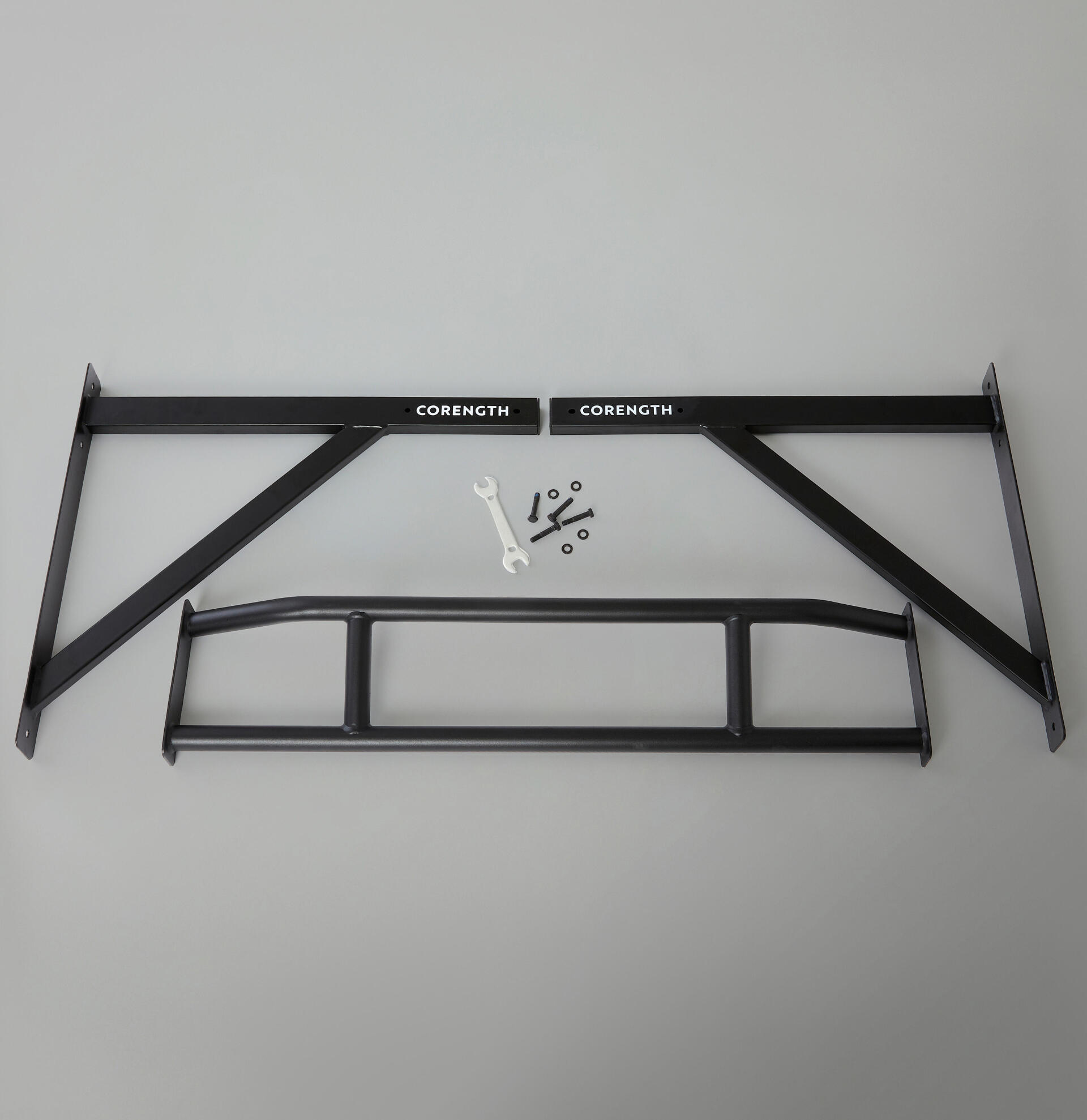

Spare parts

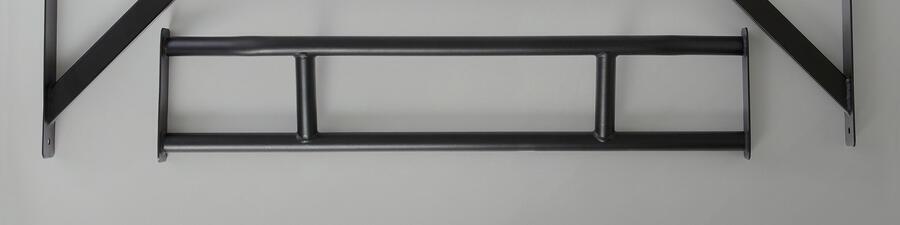

Our tutorials for repairing your wall pull-up bar

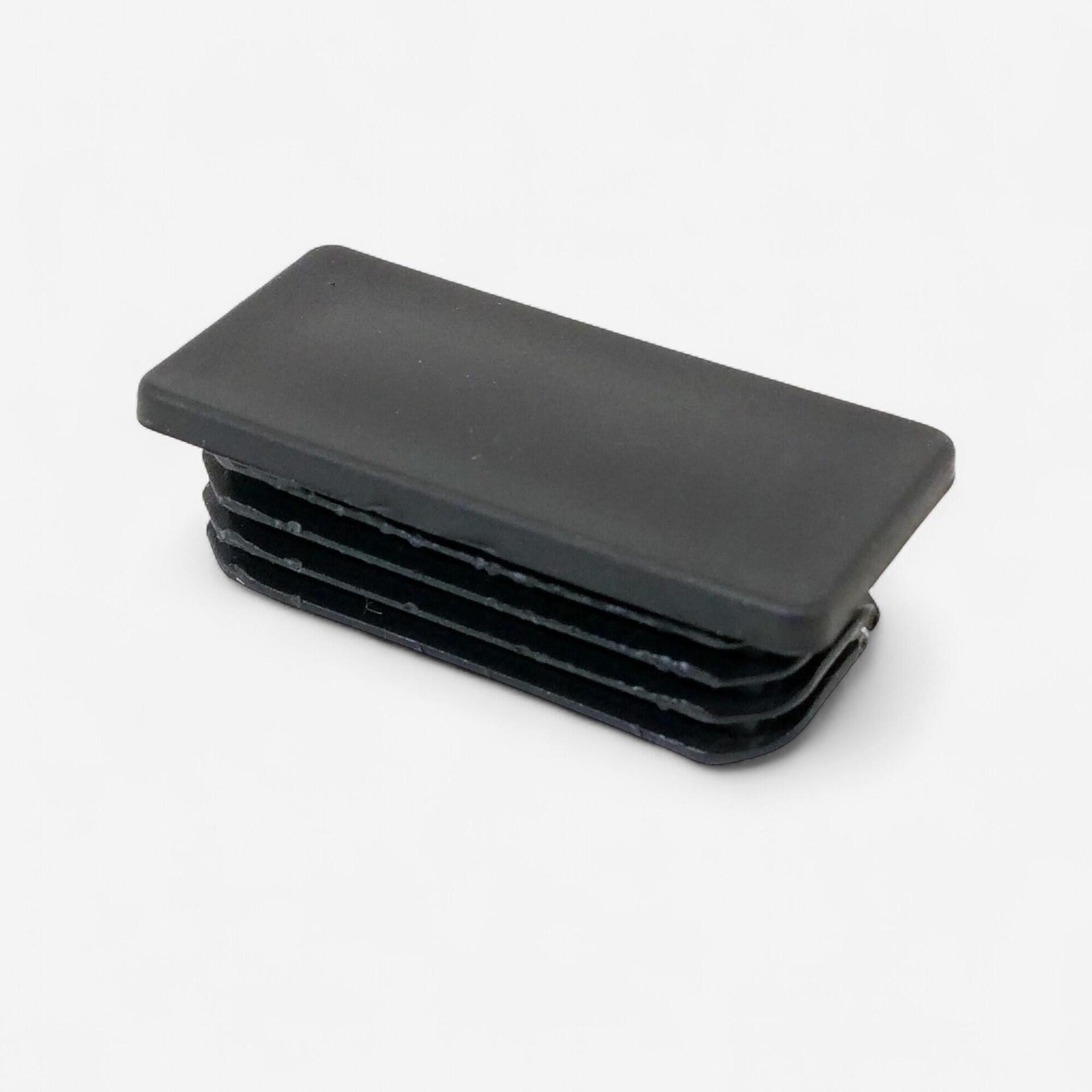

Cap replacement You'll need a flathead screwdriver.
Gently slide the screwdriver between the cap and the frame.
Remove the cap, which is simply pressed in.
Install your new cap using a mallet if needed.
Your old cap is recyclable.
Gently slide the screwdriver between the cap and the frame.
Remove the cap, which is simply pressed in.
Install your new cap using a mallet if needed.
Your old cap is recyclable.

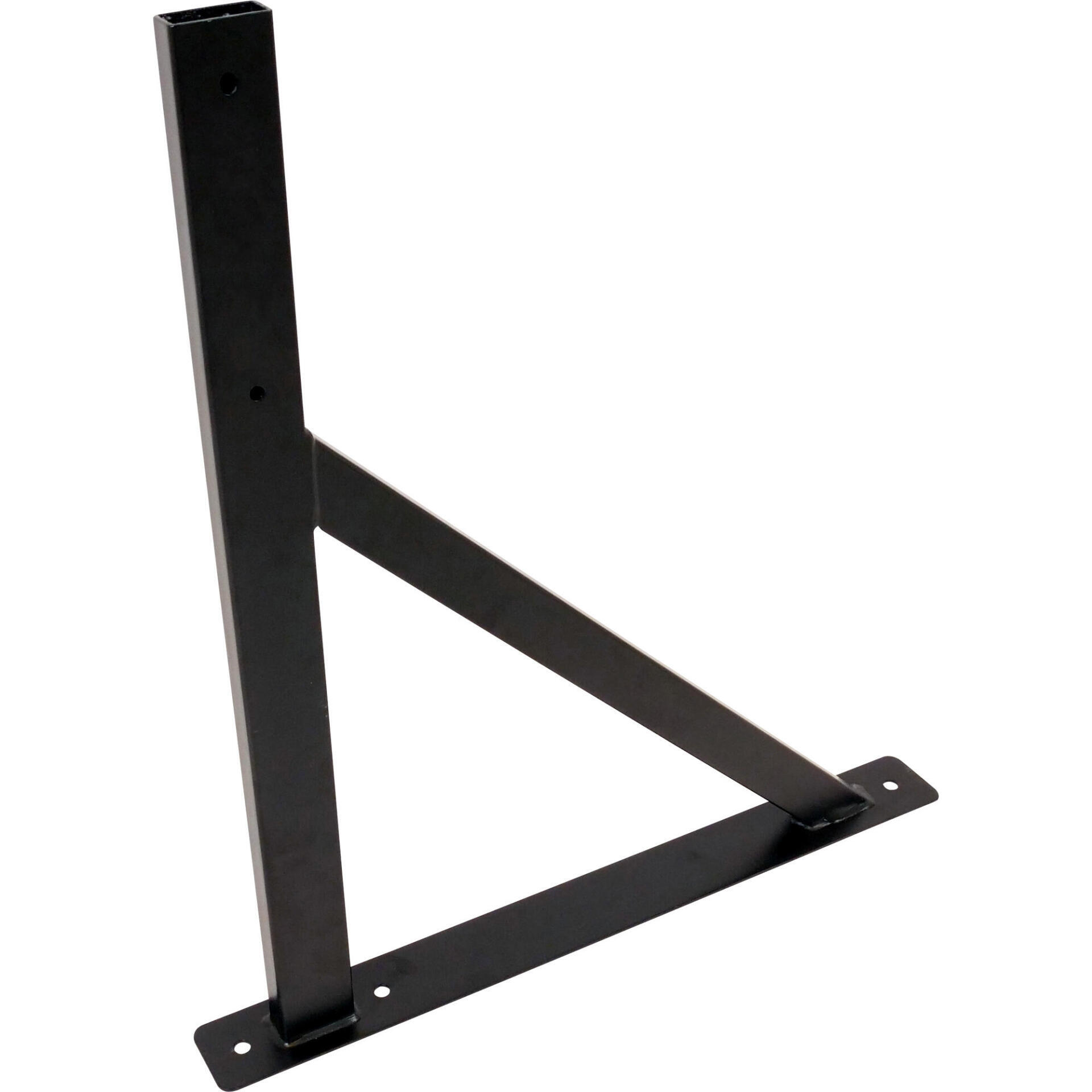

Frame replacement Detach your pull-up bar from its wall support.

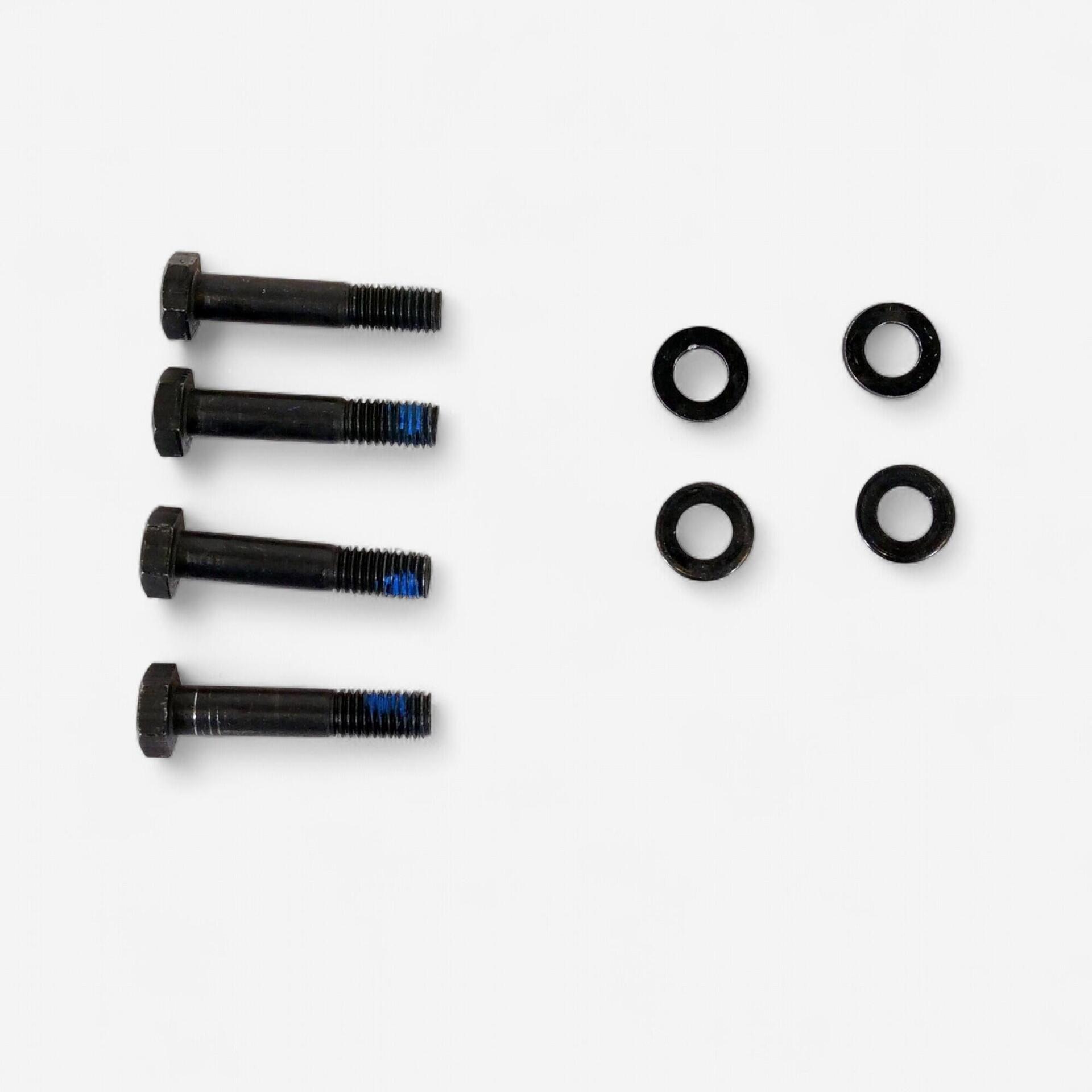

Remove the 2 hexagonal screws with a spanner or socket wrench.
Replace the frame, making sure to replace the washers and fully tighten.
You can view our assembly video to get some help.
Remove the 2 hexagonal screws with a spanner or socket wrench.
Replace the frame, making sure to replace the washers and fully tighten.
You can view our assembly video to get some help.

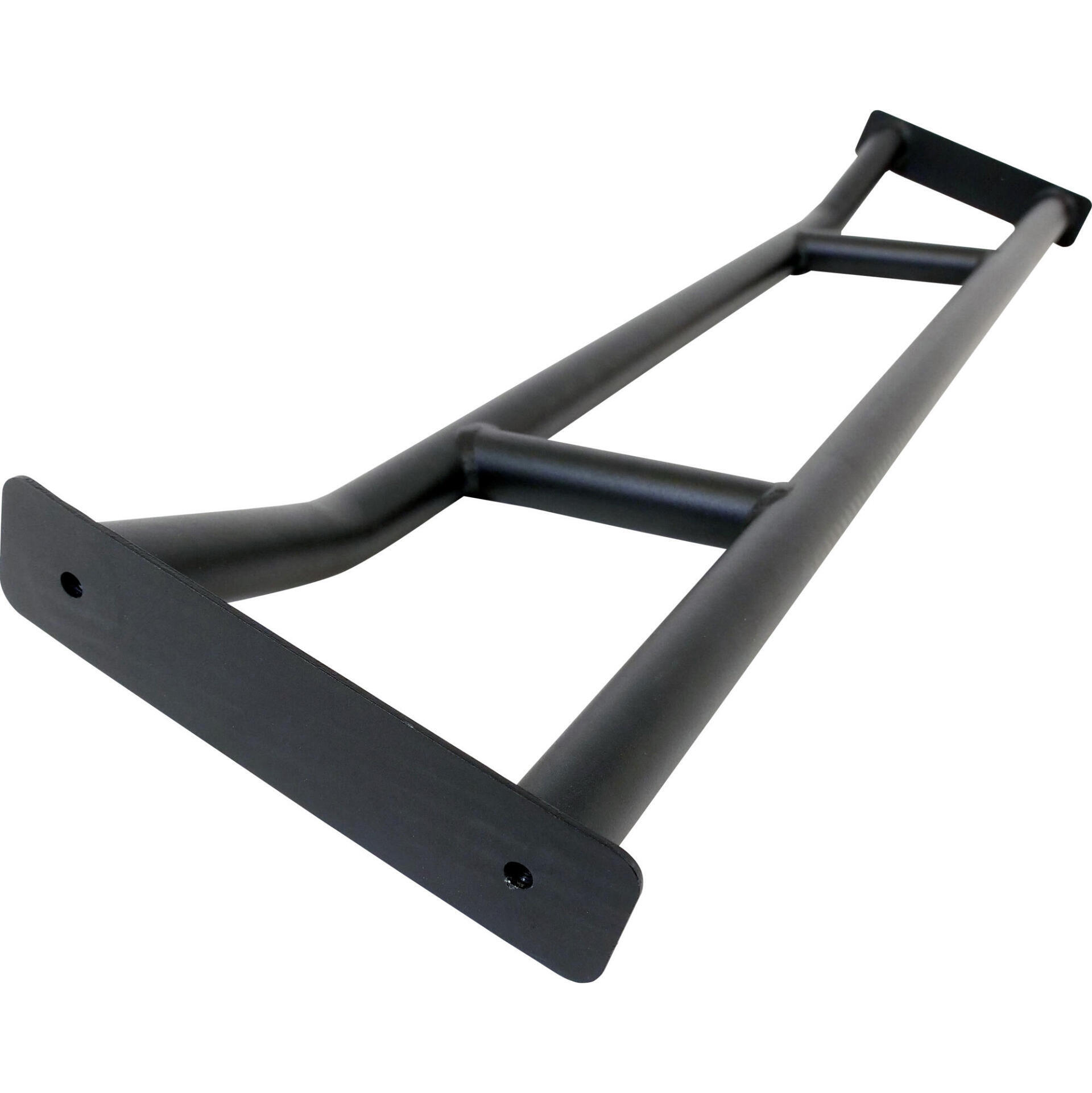

Replacing the bar Detach your pull-up bar from its wall support.
Remove the 4 hexagonal screws with a spanner or socket wrench.
Replace the pull-up bar, making sure to replace the washers and fully tighten.
You can view our assembly video to get some help.
Remove the 4 hexagonal screws with a spanner or socket wrench.
Replace the pull-up bar, making sure to replace the washers and fully tighten.
You can view our assembly video to get some help.
Good to know
COMPOSITION
100% steel
Weight and dimensions
Height: 580 cm
Width: 103,5 cm
Depth: 64.7 cm
Product weight: 10 kg
Exploded diagram & instructions
A question, or information you haven't found yet?
Assembling your wall pull-up bar
Want to find out about the parts your trampoline is made from?
OUR COMMITMENTS
Corength warranties your product under normal usage conditions for 2 years for parts and labour, from the date of purchase as shown on the receipt*.
*Details below.
WARRANTY
Corength warranties this wall pull-up bar for 2 years.
Corength guarantees your product under normal usage conditions for 2 years for parts and labour, from the date of purchase as shown on the receipt.
CORENGTH'S obligation under this warranty is limited to the repair or replacement of the product (if it cannot be repaired), at CORENGTH'S discretion.
This warranty does not apply in the event of:
* Damage caused during transport.
* Incorrect assembly.
* Repairs performed by technicians not certified by DOMYOS.
* Improper or abnormal use.
* Use outside the private sphere
* Bad weather conditions.
This commercial warranty does not affect the legal guarantee applicable in the country of purchase.
Product for home use only.
For more information, read the user guide or see below:
