Women's Triban 520

REF: 8377755

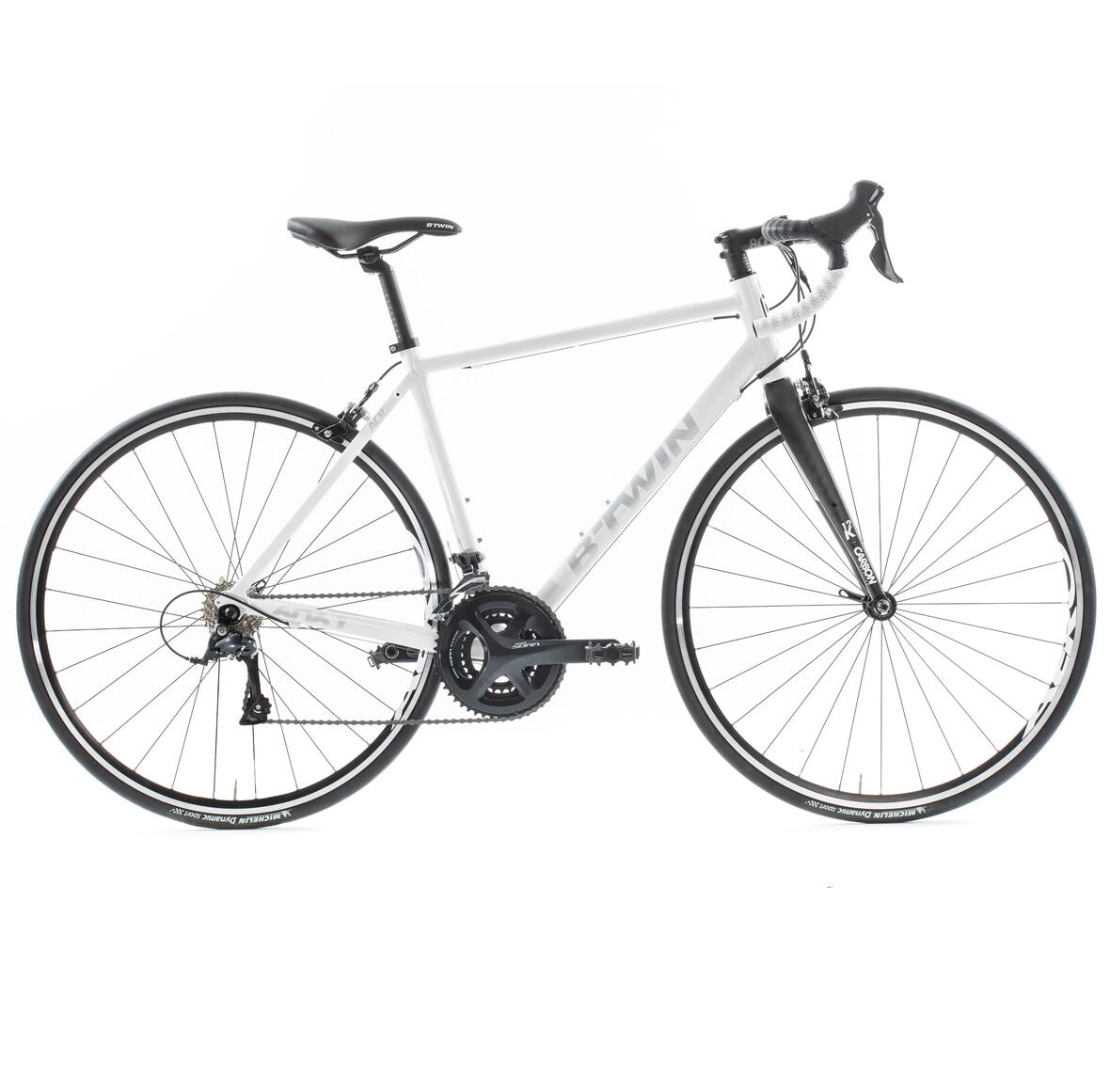

WOMEN'S TRIBAN 520

2020

Welcome to your Women's Triban 520 After Sales Service fact sheet.

Designed for regular road riders, the Women's Triban 520 has an aluminium frame and a carbon fork, which make it a light bike. With its adapted Shimano Sora drivetrain, it's ideal for riding on the flat and in the mountains.

Unselected

2 / Maintenance

Find out how to maintain your bike properly.

Essential tools for your workshop.

To maintain your bike correctly, you need to have the right tools.

Cleaning your bike properly

Step 1: Apply degreaser Step 2: Wash and rinse Step 3: Apply fresh lubricant For more information, click on the link below:

What checks do you need to make before going out on the bike?

Read the article below to find out what checks you need to make on your bike before going out for a ride:

What pressure should the tyres on your bike be?

The tyres are the only part of your bike that are in contact with the ground. It's important to minimise the risk of them losing grip, which is why it's important to make sure they are inflated to the right pressure. Check out our advice here:

Tightening the seat post

You need to tighten your seat post correctly to make sure it stays in place. A loose seat post can slip when you're out and about on your bike. Conversely, if it's too tight, you run the risk of crushing the seat post and damaging your bike.    The best way to tighten a seat post is to use a torque wrench. We recommend you tighten it to between 6 and 7Nm.   Take care not to exceed the maximum height indicated on the seat post.

How to avoid a puncture

Riding around with worn tyres brings the following risks with it: Loss of grip. Greater exposure to punctures. In this article, we'll tell you how to avoid a puncture

When to change your brake pads?

To find out if your brake pads are worn, you need to check the thickness of the rubber remaining on the pad. If it has been worn down to the wear indicator, then you need to change your brake pads.

Unselected

3 / Repairs

You'll find the answer you're looking for in the FAQ.

Changing your pedals

Are your pedals broken? Do you want to change your pedals for clipless ones? Here's our advice. NB: please note that the screw thread on the left pedal is inverted and that the pedal thus screws on in an anti-clockwise direction. The right pedal has a standard screw thread. Please use the correct tool to take your pedals off as force needs to be exerted to unscrew them.

Changing your inner tube

If you pick up a puncture, our tutorial will tell you how to change your inner tube.

Changing your handlebar tape

The tape on your handlebar will wear over time and you'll need to change it occasionally.

Your bike isn't braking very well

There are several things you can do if your brakes aren't working as well as they used to:  - Use a degreaser to clean the rims. - Check the brake pads for wear. - Check the tension of the cable.

Changing your brake pads

It's important to change your brake pads before they become too worn. It makes for safe riding.

Changing your housings and brake cable

Need to change your brake cables and/or housings? Watch our tutorial.

Your gears are skipping

If your gears are slipping, you need to check the following:  - Wear on your drive train. - The tension of the cables. You then need to adjust the derailleur.

Changing your chain

Here's some useful advice on how to change your chain correctly.

Changing your bike cassette

Is your drivetrain worn? Do you need to change the number of cogs on your cassette? Watch our tutorial video to find out how to change your cassette. NB: the largest cassette that can be fitted on this bike is 11-34.

Changing your chainrings

Are your chainrings worn? Do you want to change the number of teeth? It's easy to change your chainrings.All you need to do is use an Allen key to unscrew the screws holding the chainrings in place. You can then fit the new chainrings.The minimum size of chainring for this bike is 34 teeth.

Changing your derailleur housings and cable

Need to change your derailleur cables and/or housings?Watch our tutorial.

Unselected

4 / Workshop services

You can try to do all the aforementioned jobs yourself or you can visit the workshop at your Decathlon store and ask us to do them for you. For more information on the services offered by the workshop, please click on the link below.

Unselected

5 / Instructions

Unselected

6 / Guarantees

  • Commitment

    TRIBAN provides a lifetime guarantee on the frame, handlebar and stem (under normal conditions of use). The guarantee for other parts is two years.   When you start using your bike, some of the components may move a little. That's why we offer a free check-up of your bike in the first six months following the date of purchase.   The table opposite details all the main components of your bike, the types of wear that are not covered by our guarantee and the duration of the relevant guarantee in the European Union.

Unselected
Women's Triban 520 (2018)

Haven't been able to fix your problem or find what you need?

Please contact one of our technicians who will be happy to help
